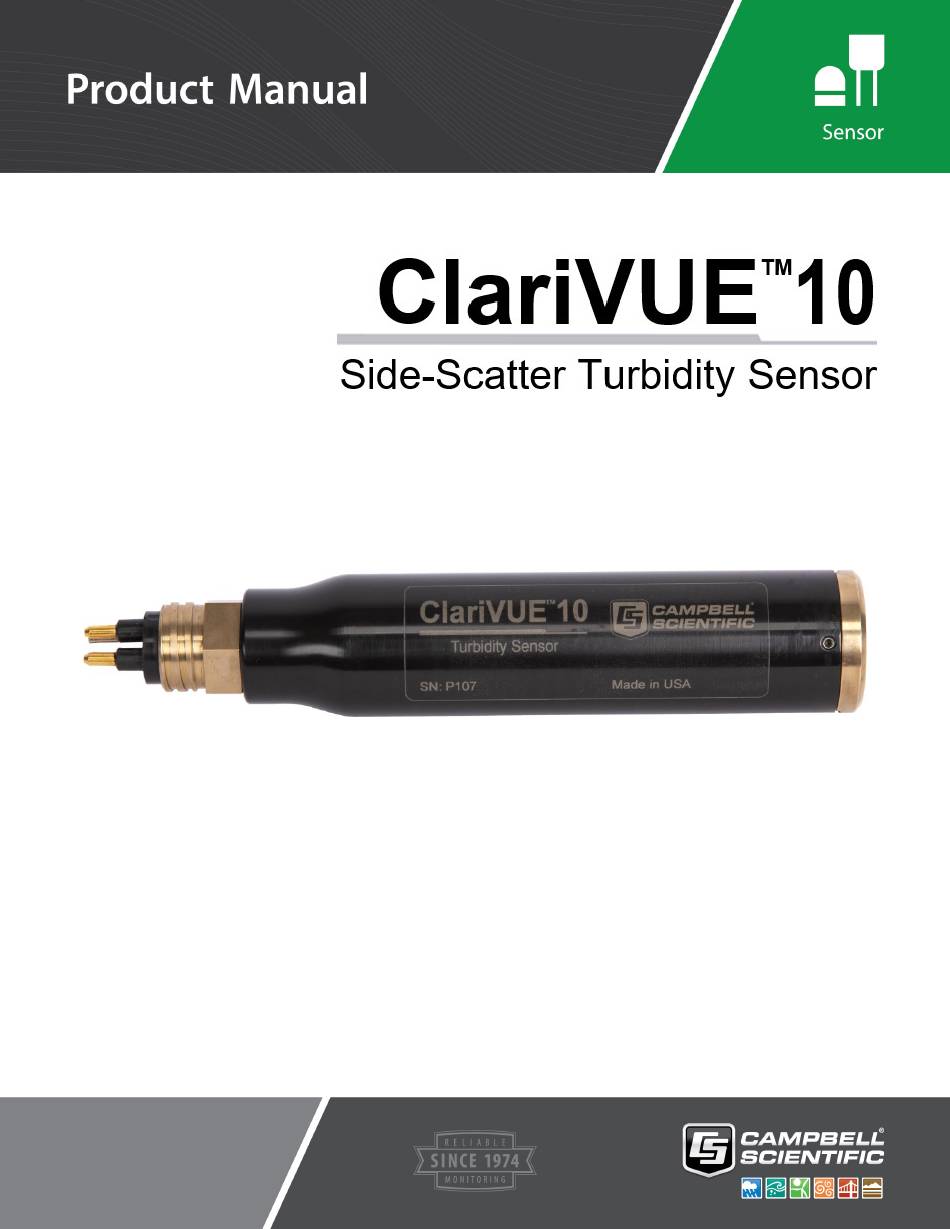

  • Page 1 Revision: 08/2021 Copyright © 2021 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 7. Installation 7.1 Wiring 7.2 Programming 7.2.1 CRBasic programming 7.3 Mounting 8. Operation 8.1 Turbidity units 8.2 SDI-12 measurements 8.3 SDI-12 extended commands 8.4 Vertical-cavity surface-emitting laser diode 9.
  • Page 3 B.4 High-sediment concentrations B.5 Water color Appendix C. SDI-12 sensor support C.1 SDI-12 command basics C.1.1 Acknowledge active command (a!) C.1.2 Send identification command (al!) C.1.3 Start verification command (aV!) C.1.4 Address query command (?!) C.1.5 Change address command (aAb!) C.1.6 Start measurement commands (aM!) C.1.7 Start concurrent measurement commands (aC!) C.1.8 Start measurement commands with cyclic redundancy check (aMC! and aCC!) 33...

  • Page 4: Introduction

    (p. 16)). 3. Initial inspection Upon receipt of the ClariVUE 10, inspect the packaging for any signs of shipping damage, and, if found, report the damage to the carrier in accordance with policy. The contents of the package should also be inspected and a claim filed if any shipping-related damage is discovered.

  • Page 5: Quickstart

    . It is included in installations of LoggerNet, RTDAQ, and PC400. The following procedure also shows using Short Cut to program the ClariVUE 10. 1. Open Short Cut and click Create New Program. 2. Double-click the data logger model.
  • Page 6 3. In the Available Sensors and Devices box, type ClariVUE or find the sensor in the Sensors > Water > Quality folder, and double-click ClariVUE5/ClariVUE10. SDI-12 Address defaults to 0. Enter the correct SDI-12 Address for the sensor if it has been changed from the factory default value.
  • Page 7 6. In Output Setup, type the scan rate, a Table Name, and Data Output Storage Interval. Click Next. NOTE: Because of the sensor response time, Campbell Scientific recommends measurement scans of at least 30 seconds. 7. Select the output options.

  • Page 8: Overview

    5. Overview The heart of the ClariVUE 10 is a near-infrared (NIR) laser and a photodiode for detecting the intensity of light scattered from suspended particles in water. The detector is positioned at 90 degrees to the emitter to measure the side-scatter energy. The ClariVUE 10 has two measurement ranges.

  • Page 9: Specifications

    6. Specifications Standards: Meets ISO 7027-1:2016 (side scatter) standard for turbidity measurements. Compliance: SDI-12 v1.4 Operating temperature range: –2 to 40 °C CAUTION: Sensor may be damaged if it is encased in frozen liquid. Power requirements: 9.6 to 18 VDC Power consumption Idle: <300 µA...

  • Page 10: Installation

    Shield U and C terminals are automatically configured by the measurement instruction. If multiple SDI-12 sensors are connected to a data logger, Campbell Scientific recommends using separate terminals when possible. However, multiple SDI-12 sensors can connect to the same data logger control (C) or universal (U) terminal. Each must have a unique SDI-12 address. Valid addresses are 0 through 9, a through z, and A through Z.

  • Page 11: Crbasic Programming

    Orient the unit so that the ClariVUE 10 looks into clear water without reflective surfaces. This includes any object such as a mounting structure, a stream bed, or sidewalls. The sidescatter sensor can see to about 5 cm (2 in) at 90°.
  • Page 12 Campbell Scientific recommends avoiding direct sunlight. The ClariVUE 10 measures any infrared light source pulsing at a 5 kHz rate that is in sync with the 5 kHz internal VCSEL light driver. Therefore, the combination of direct sunlight and a rippling water surface can affect turbidity measurements.
  • Page 13 Use spacer blocks when necessary to prevent chafing the unit with the frame or the wire. Mounting inside the end of a PVC pipe is a convenient way to provide structure and protection for deployments. The ClariVUE 10 fits inside a 2-in schedule 40 PVC pipe. ClariVUE™10 Side-Scatter Turbidity Sensor...

  • Page 14: Operation

    8. Operation This section provides the following information: 8.1 Turbidity units 8.2 SDI-12 measurements 8.3 SDI-12 extended commands 8.4 Vertical-cavity surface-emitting laser diode 8.1 Turbidity units Conceptually, turbidity is a numerical expression in turbidity units (TU) of the optical properties that cause water to appear hazy or cloudy as a result of light scattering and absorption by suspended matter.

  • Page 15: Sdi-12 Measurements

    Procedures, describes the units: http://water.usgs.gov/owq/turbidity/TurbidityInfoSheet.pdf 8.2 SDI-12 measurements The ClariVUE 10 responds to the SDI-12 commands shown in Table 8-1 (p. 13). When the data logger issues an M! command, the sensor should respond immediately indicating how long it will take to perform the measurement.
  • Page 16 Table 8-1: SDI-12 measurement commands Sensor SDI-12 Values Returned Units response Comments command time 1. Median turbidity (mmm.mm) 2. Mean turbidity (nnn.nn) 1. FNU 3. Standard deviation 2. FNU Burst data. Sensor turbidity (sss.s) 3. FNU aM!, aMC!, 4. Minimum turbidity (lll.ll) 4.

  • Page 17: Sdi-12 Extended Commands

    8.4 Vertical-cavity surface-emitting laser diode The ClariVUE 10 sensor detects suspended matter in water and turbidity from the relative intensity of light side scattered at 90° in accordance with ISO7027. A 3D image of the main components of the sensor is shown in FIGURE 8-1 (p.

  • Page 18: Maintenance, Troubleshooting, And Calibration

    FIGURE 8-1. Sidescatter detector cones. The larger window is the VCSEL laser, and the smaller window is the photo diode detector. 9. Maintenance, troubleshooting, and calibration NOTE: All factory repairs and recalibrations require a returned material authorization (RMA) and completion of the “Statement of Product Cleanliness and Decontamination” form. Refer to Assistance page at the end of this manual for more information.

  • Page 19: Troubleshooting

    5% send to Campbell Scientific for factory calibration (refer to Assistance for more information). 9.2 Troubleshooting 1. Check the wiring to ensure the ClariVUE 10 wires are connected to the correct data logger terminals (see Wiring (p. 7)).
  • Page 20 2. Wire sensor to the data logger. Many data loggers offer a terminal mode to talk to SDI-12 sensors. This procedure requires an SDI-12 recorder/data logger that can return multiple lines for an extended SDI-12 command. For this example, the ClariVUE 10 is connected to the following terminals on a Campbell Scientific CR1000X data logger.
  • Page 21 5. Select the correct Communication Port and click Connect. 6. Click the Terminal tab. NOTE: Click Start Export to save the 25 verification readings in a text editor. This log can be easily transferred to a spreadsheet. Select All Caps to simplify entering the SDI-12 commands.
  • Page 22 ClariVUE 10 will need to equilibrate to the ambient temperature before doing the next step. 11. Submerge the ClariVUE 10 into the first calibration standard or DI water. Place the sensor vertically, in the middle of the calibration cup. If the first point is DI water or a turbidity standard less than 20 TU, use a black 8 liter (2 gallon) bucket, preferably tumbled so the inside of the bucket is not glossy/reflective.
  • Page 23 12. Type aXTEST!, where a is the sensor address (0 in this example). This SDI-12 command collects 25 measurements, which is similar to running the M! command 25 times in rapid succession. 13. If the values are stable, remove the sensor from standard 1. If you have it in DI water, cover the DI water bucket and go to the next step.
  • Page 24 14. Place the sensor in your second standard. If the turbidity value is greater than 20 TU, use a smaller calibration cup, preferably a black plastic container with a diameter greater than 4 inches. NOTE: The second standard should be within the range of the field site conditions or the range of turbidity in which you are most interested.
  • Page 25 Calibration point 1 0.4 FNU SDI-12 Turbidity Temperature Turbidity Temperature Address (FNU) (°C) (FNU) (°C) 0.273755 22.9373 Mean 0.31 23.21 0.287878 22.946196 Median 0.27 23.23 0.271526 22.963276 St dev 0.11 0.17 0.258146 22.986679 0.238077 23.013351 0.293824 23.041656 0.676631 23.070333 0.623111 23.098751 0.31092 23.126926...
  • Page 26 Calibration point 2 763 FNU 5% = 38.15 SDI-12 Turbidity Temperature Turbidity Temperature Address (FNU) (°C) (FNU) (°C) 780.74 22.87 Mean 764.46 23.14 763.88 22.88 Median 764.37 23.15 766.56 22.90 St dev 4.13 0.17 765.84 22.92 764.28 22.94 764.37 22.97 765.17 23.00 766.29...

  • Page 27: References

    10. References Anderson, C.W., 2005, Turbidity (ver. 2.1): U.S. Geological Survey Techniques of Water-Resources Investigations, book 9, chap. A6., sec. 6.7, Sept 2005, accessed December 8, 2011, from http://pubs.water.usgs.gov/twri9A6. Lewis, Jack. 1996. Turbidity-controlled Suspended Sediment Sampling for Runoff-event Load Estimation. Water Resources Research, 32(7), pp. 2299-2310. U.S.

  • Page 28: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: 1.

  • Page 29: Appendix B. Factors That Affect Turbidity And Suspended-Sediment Measurements

    Appendix B. Factors that affect turbidity and suspended- sediment measurements This appendix summarizes some of the factors that affect turbidity measurements and shows how ignoring them can lead to erroneous data. If you are certain that the characteristics of suspended matter will not change during your survey and that your sensor was factory- calibrated with sediment from your survey site, you only need to skim this section to confirm that no problems have been overlooked.

  • Page 30: High-Sediment Concentrations

    than spherical particles, while angular shapes have intermediate scattering efficiency. Turbidity sensors are very sensitive to shape effects and this makes it very important to calibrate with material from the monitoring site. It is also essential that particle shape remains constant during the monitoring period.

  • Page 31: Appendix C. Sdi-12 Sensor Support

    SDI-12, Serial Data Interface at 1200 baud, is a protocol developed to simplify sensor and data logger compatibility. Only three wires are necessary — serial data, ground, and 12 V. With unique addresses, multiple SDI-12 sensors can connect to a single SDI-12 terminal on a Campbell Scientific data logger.

  • Page 32: Acknowledge Active Command (A!)

    Table C-1: Campbell Scientific sensor SDI-12 command and response set Response Name Command Address Query a<CR><LF> aAb! Change Address b<CR><LF> Start Measurement atttn<CR><LF> aM1!...aM9! Start Measurement aMC! atttn <CR><LF> aMC1!...aMC9! and Request CRC Start Concurrent Measurement atttnn<CR><LF> aC1!...aC9! aCC! Start Concurrent Measurement atttnn<CR><LF>...

  • Page 33: Start Verification Command (Av!)

    cccccccc 8-character vendor identification mmmmmm 6 characters specifying the sensor model 3 characters specifying the sensor version (operating system) Up to 13 optional characters used for a serial number or other specific xxx…xx sensor information that is not relevant for operation of the data logger Terminates the response <CR><LF>...

  • Page 34: Start Measurement Commands (Am!)

    C.1.6 Start measurement commands (aM!) A measurement is initiated with the M! command. The response to each command has the form atttn<CR><LF>, where a = sensor address ttt = time, in seconds, until measurement data is available. When the data is ready, the sensor notifies the data logger, and the data logger begins issuing D commands.
  • Page 35 nn = the number of values to be returned when one or more subsequent D commands are issued. See the following example. A data logger has three sensors wired into terminal C1. The sensors are addresses X, Y, and Z. The data logger will issue the following commands and receive the following responses: Table C-3: Example aC! sequence The data logger makes a request to sensor X to start...

  • Page 36: Start Measurement Commands With Cyclic Redundancy Check (Amc! And Acc!)

    Table C-3: Example aC! sequence Ten seconds later, after a total of 40 seconds have passed, the data logger starts the process of YD0! collecting data from sensor Y by issuing the first D command. The sensor immediately responds with the sensor Y+1+2+3+4+5+6<CR><LF>...

  • Page 37: Continuous Measurement Command (Ar0

    characters of data in response to a D command that follows an M! or MC! command. A sensor may return up to 75 characters of data in response to a D command that follows a C! or CC! command. Data values are separated by plus or minus signs. Command: aD0! (aD1! …...

  • Page 38: Changing An Sdi-12 Address

    Transparent mode is entered while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific data logger support software or other terminal emulator programs. Data logger keyboards and displays cannot be used.
  • Page 39 4. Select the correct Communication Port and click Connect. 5. Click the Terminal tab. 6. Select All Caps Mode. 7. Press Enter until the data logger responds with the data logger (CR1000X>) prompt. 8. Type SDI12 and press Enter. 9. At the Select SDI12 Port prompt, type the number corresponding to the control port where the sensor is connected and press Enter.

  • Page 40: References

    response Entering SDI12 Terminal indicates that the sensor is ready to accept SDI-12 commands. 10. To query the sensor for its current SDI-12 address, type ?! and press Enter. The sensor responds with its SDI-12 address. If no characters are typed within 60 seconds, the mode is exited.
  • Page 41 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 42 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 43 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
