EK -FB SR2 Installation And Mounting Manuals

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using o-rings.

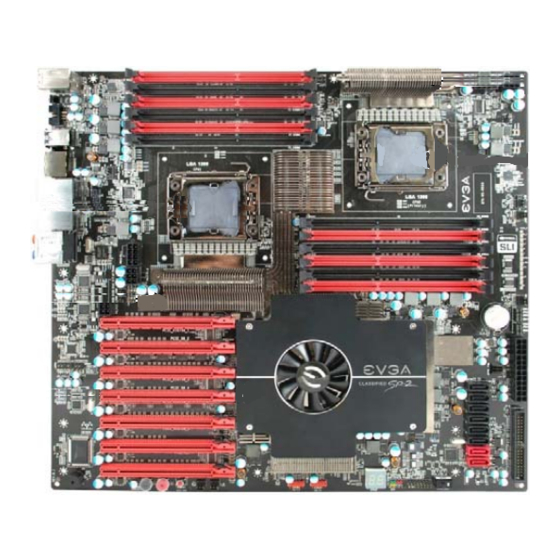

STEP 1: GENERAL INFORMATION Sample photo of EVGA SR2 CLASSIFIED PCB design

STEP 2: PREPARING YOUR MOTHERBOARD

1. REMOVING STOCK COOLER. Remove all encircled screws.
cooler assembly screws should be removed. There are 14 screws on the back
of the motherboard.
3. APPLYING THERMAL COMPOUND
Apply thermal compound: put a small drop of thermal compound on the chips
marked in substep 5. For example Céramique™ thermal compound. Follow this
link http://www.arctic-
cooling.com/catalog/product_info.php?cPath=39_&mID=127&language=en
for detailed instructions. EKWB recommends non-conductive MX-2, which
should be applied in cross form for best performance (see sample picture).
5. PLACING THERMAL PADS ON MOTHERBOARD. Place thermal pads you cut on PCB as shown on picture bellow.
(PLEASE REMOVE FOIL OF THERMAL PADS PRIOR TO INSTALLATION.)
Place 0,5mm thick thermal pads here.
Place 1mm thick thermal pads here.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FB SR2 water block:
CPU socket
Mosfets
Stock cooler
All stock
2. CLEANING THE PCB.
Carefully detach the original stock cooler after removing all screws
securing it to the board. Wipe off the remains (by using non–abrasive cloth or qtip, as shown
on sample photo) of the original thermal compound until the components and circuit board are
completely clean. EKWB does not recommend using any liquids for removing paste.
4. CUTTING THERMAL PADS.
Three types of thermal pads are enclosed with your water
block. (WARNING: DIMENSIONS ON PICTURES BELLOW ARE SCALED!)
1mm thick
Apply thermal grease on
Northbridge and Southbridge.
www.ekwaterblocks.com
Mosfets
CPU socket
0,5mm thick 1,5mm thick
Place 1mm thick thermal pads here.
Place 0,5mm thick thermal pads
Place 1,5mm thick thermal pads here.
Released on 28
for updates.
th
of July, 2010.
