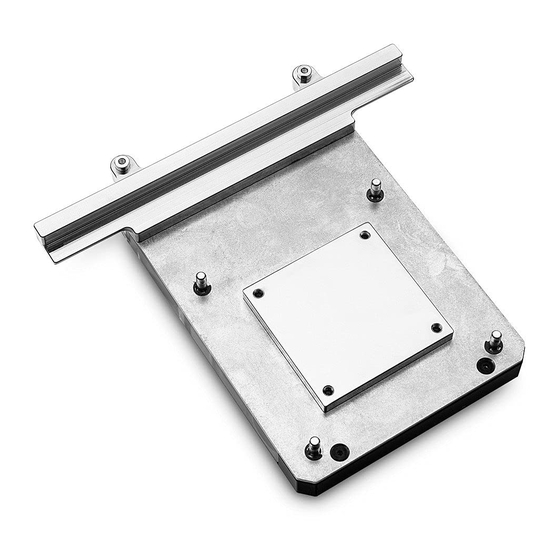

- Page 1 EK-Quantum Momentum ROG Rampage VI Encore MONOBLOCK USER GUIDE...
- Page 2 CPU and/or motherboard’s circuit board (PCB). The EK- Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR MOTHERBOARD REMOVING BACKPLATE AND STOCK COOLER APPLYING THERMAL COMPOUND CUTTING AND PLACING THERMAL PADS ON THE MOTHERBOARD PLACING THE BLOCK ON TO MOTHERBOARD ATTACHING BLOCK ON THE MOTHERBOARD PLACING THE REPLACEMENT HEATSINK ON TO MOTHERBOARD CONNECTING THE D-RGB LED STRIP INSTALLATION OF FITTINGS AND TUBING REQUIRED TOOLS... -
Page 4: Preparing Your Motherboard
APPLYING THERMAL COMPOUND Apply thermal compound on CPU heat spreader (IHS) with enclosed EK-TIM Ectotherm thermal grease. The quantity of about two rice grains is just about right. There is no need to cover the whole IHS. Applying too much thermal grease will have negative impact on the... -
Page 5: Cutting And Placing Thermal Pads On The Motherboard
CUTTING AND PLACING THERMAL PADS ON THE MOTHERBOARD Thermal Pad F – 1.0 mm Your block comes with thermal pads which needs to be trimmed in order to fit the voltage regulation area (MOSFET) on the motherboard’s circuit board. 1. Thermal PAD F 1,0mm - (120x16mm) EAN: 3830046996732 Thermal Pad F –... -
Page 6: Placing The Block On To Motherboard
PLACING THE BLOCK ON TO MOTHERBOARD Place EK-Quantum Momentum ROG Rampage VI Encore series water block to the motherboard or vice versa (as shown on the photo). Make sure that mounting holes are aligned. ATTACHING BLOCK ON THE MOTHERBOARD STEP 1 Prior to fastening the screws please make sure the mounting holes on the motherboard’s circuit board are aligned with the water block. -
Page 7: Placing The Replacement Heatsink On To Motherboard
ON TO MOTHERBOARD Stock CoolerStandoffs STEP 1 Replacement Heatsink From the original heatsink take off four (4) standoffs using EK-loop wrench and attach them on to replacement heatsink which comes with the EK-Quantum Momentum ROG Rampage VI Encore monoblock. STEP 1... - Page 8 STEP 3 Carefully place the replacement heatsink with I/O cover screen on to the motherboard (as shown on the photo). Make sure that Thermal Pad I/O Cover Screen is placed correctly. Replacement Heatsink STEP 3 STEP 4 Place the factory provided backplate back on the motherboard Factory Screws and secure the replacement heatsink with Factory screws(as shown on the photo).
-
Page 9: Connecting The D-Rgb Led Strip
INSTALLATION OF FITTINGS AND TUBING Tubing STEP 1 EK recommends the use of EK-Fittings. When using fittings other than EK series please use hose clamps or appropriate substitute to secure the tubing to the barb. The use of biocide containing and... -
Page 10: Required Tools
REQUIRED TOOLS Phillips-head screwdriver Scissors Allen Key - 10 -... -
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
