TECNARE IBZA Series Operation Manual

TECNARE IBZA Series Operation Manual

Wide coverage loudspeaker
Hide thumbs Also See for IBZA Series:

Advertisement

Quick Links

Operation Manual
Version 2.5
IBZA Series
Wide Coverage Loudspeaker
IBZA15
Keep these important operating instructions.
Check www.tecnare.com for updates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBZA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TECNARE IBZA Series

  • Page 1 Operation Manual Version 2.5 IBZA Series Wide Coverage Loudspeaker IBZA15 Keep these important operating instructions. Check www.tecnare.com for updates.
  • Page 3 IBZA Series | rev. EXEL ACOUSTICS SL CL Encinar, 282 – Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (Toledo) Spain...
  • Page 4: Important Safe Instructions

    Use the rigging accessories described in the rigging manual a follow the associated procedures. CAUTION: Rigging should only be done by experience professionals. This speaker enclosure is capable of creating a strong magnetic field. Please use IBZA Series | rev.
  • Page 5: Declaración De Conformidad

    (1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE (3) Directiva RoHS - 2011/65/UE (4) Directiva RAEE - 2012/19/UE (1) Low Voltage Directive 2006/95/CE (2) EMC 2004/108/CE (3) RoHS Directive 2011/65/UE (4) WEEE Directive 2012/19/UE IBZA Series | rev.
  • Page 6: Table Of Contents

    Integrating IBZA15 Using Subwoofers ..............16 Connection to PA4.1500 ..................14 Connection to PA2100/PA3000 ................15 Technical specifications ....................17 Connection to T-44 Series ..................15 Integrating IBZA15 Loudspeakers Systems with Tecnare Subwoofers ....16 Signal Delay ......................16 IBZA Series | rev.
  • Page 7: Introduction

    All Tecnare products are carefully engineered for world-class performance and reliability. ® If you would like further information about this or any other Tecnare product, please contact us. We look forward to helping you in the near future. As part of a continuous evolution of techniques and standards, Exel Acoustics SL as ®...
  • Page 8: Ibza Series

    IBZA Series constitutes a broad range of point source, full range loudspeakers that providing high SPL, different directivities patterns and a good sonic performance off-axis. The IBZA Series is suited to various sound reinforcement applications as a main or complementary system.

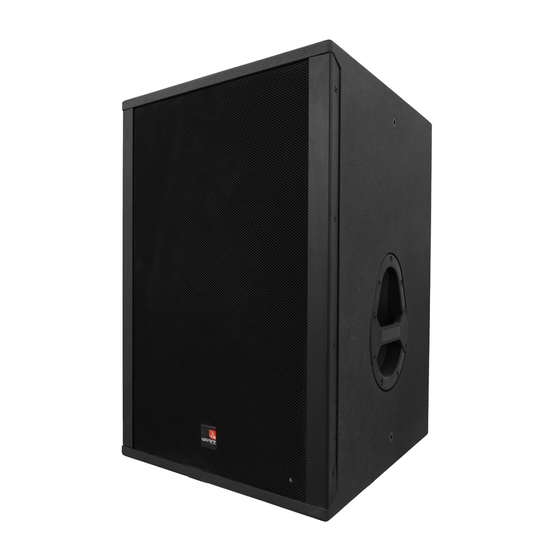

  • Page 9: The Ibza15 Compact Loudspeaker

    T-Series amplifiers are available to operate the IBZA15 in full-range mode or combined with Tecnare® subwoofers. The full-range compact IBZA15 loudspeaker offers total versatility among all types of near- field listening applications: drum-fill; distributed systems; in-fill/near-fill/delay etc; PA with or without subwoofers.
  • Page 10: Connections

    The IBZA15 uses the pin assignment 1+/1+. Using one as the input, the second connector allows for direct connection to a second cabinet in parallel. Internal pinout for IBZA15 enclosures ® IN speakON point Connection LF + LF - NC IBZA Series | rev.
  • Page 11: Processing And Amplification

    In certain specific cases it is possible to slightly under-power the subs or loudspeakers as long as the amplifier will not be driven to its limits. In any case, the Tecnare processors should be deployed in front of the amp to ensure that the amplifiers to not go into clip.
  • Page 12: 1.2 Loudspeaker Configuration

    In this configuration the system operates over the nominal frequency range of the enclosure. Ensure that the loudspeakers are securely attached to prevent personal injury and property damage. NOTE TECNARE recommends using only the accessories specified by TECNARE to secure the loudspeakers. Frequency Range (+/- 6dB) 48Hz- 18KHz IBZA15 Standalone mode...
  • Page 13: Point Source With Low-Frequency Element

    - a measurement system such as SMAART should be used to determine the correct delay and polarity. Frequency Range (+/- 6dB) 38- 18KHz SW 215 Recommended ratio SW 215 2xSW-215: 4xIBZA15 IBZA15 + SW-215 IBZA Series | rev.
  • Page 14: Recommended Speaker Cables

    Damping factor is a ratio of rated loudspeaker impedance (ZL) to the source impedance (Zs). In this case our source impedance is (Rcable + Ramplifier). Damping Factor = Z ® The table below indicates the cable valour recommended by Tecnare Recommended maximum length 8 Ω 4 Ω...
  • Page 15: 1.4 Amplifier Configuration

    Tecnare loudspeaker controllers. ® Tecnare only recommends using preset/amplifier developed by Tecnare; otherwise there is a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series amplifier and T-Series amplifier are ideal for this purpose. Ensure that the right preset was selected before connecting the loudspeaker with the amplifier.
  • Page 16: Connection To Pa2100/Pa3000

    SPE AKO N 1+1- SPE AKO N 1+1- SPE AKO N 1+1- SPE AKO N 1+1- SPE AKO N 1+1- IBZA Series | rev. IBZA15 IBZA15 IBZA15 IBZA15 650W AES 650W AES 650W AES 650W AES 8 OH M 8 OH M...
  • Page 17: 2.3 Integrating Ibza15 Using Subwoofers

    Integrating IBZA15 Loudspeakers Systems with Tecnare Subwoofers An IBZA15 loudspeaker system can be deployed in combination with Tecnare's subwoofers likes a SW215, SW118M, SW-18VR. These subwoofers can achieve very low frequency response extending system response appreciably and increasing the overall acoustic power of a system in the lowest frequencies.
  • Page 18: 3.2 Technical Specifications

    Dimensions (HxWxD) 640mm x 460mm x 482,1 mm (25.60” x 18.11” x 18.98”) Weight 34,8 Kg. (76.72 lbs) Custom finish White code available on request Without charge. RAL code on special order. IBZA Series | rev.
  • Page 19 Operation Manual IBZA15 Dimensions IBZA Series | rev.
  • Page 20 Exel Acoustics. Tecnare and PCC-Net are trademarks of Exel Acoustics SL. Podware, System Engineer, BvNet, Smaart and all third-party trademarks mentioned IBZA Series | rev.
  • Page 21 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain (e) support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:2.5 2017...

This manual is also suitable for:

Ibza15
