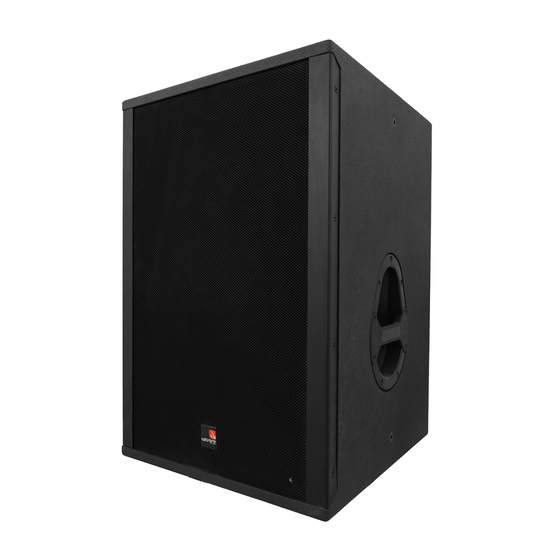

TECNARE IBZA Series Operation Manual
Ultra-compact multipurpose loudspeaker
Hide thumbs
Also See for IBZA Series:
- Operation manual (24 pages) ,
- Operation manual (21 pages) ,
- Operation manual (21 pages)
Subscribe to Our Youtube Channel
Related Manuals for TECNARE IBZA Series
Summary of Contents for TECNARE IBZA Series

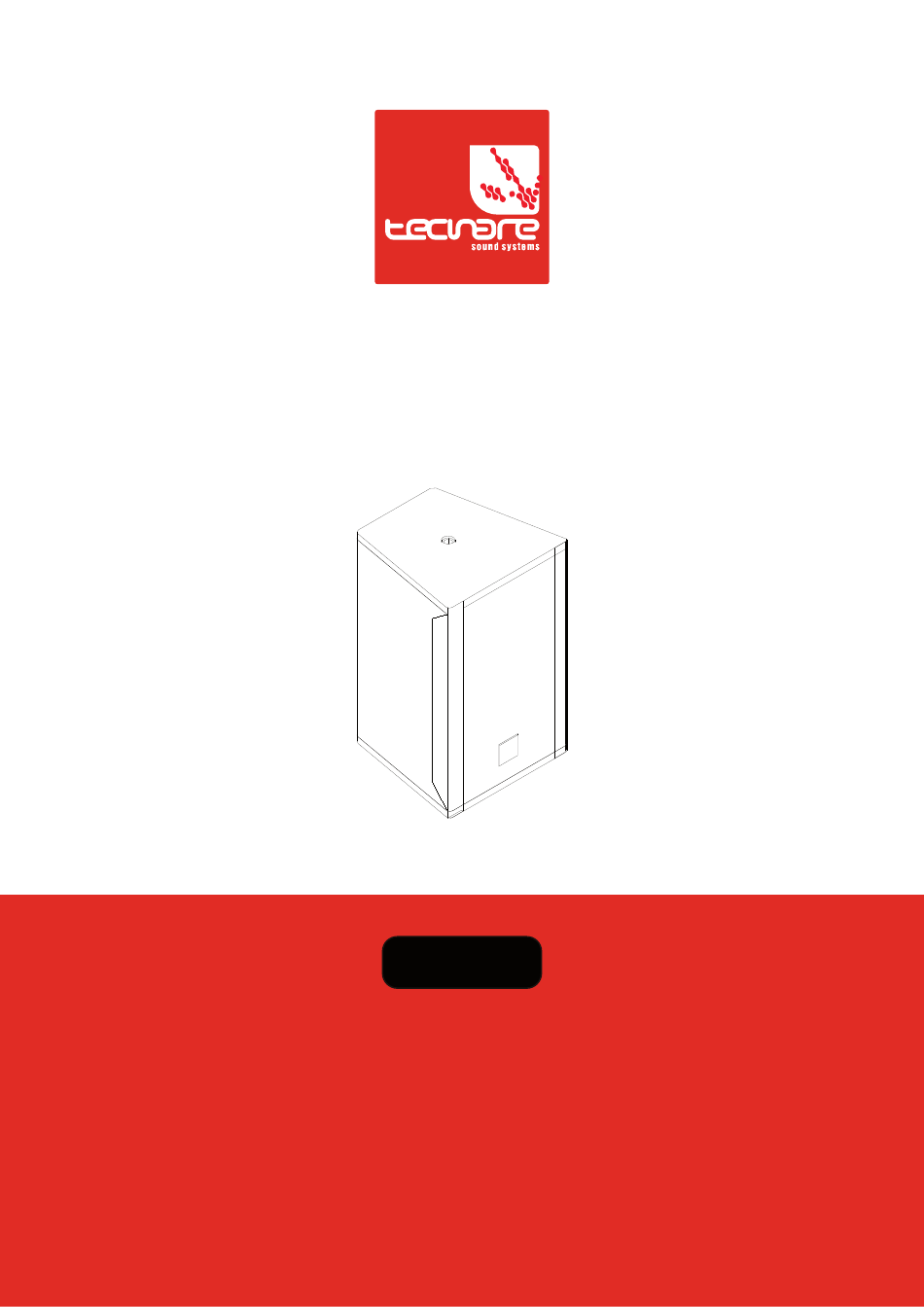

- Page 1 Operation Manual IBZA Series Ultra-Compact Multipurpose Loudspeaker IBZA6Plus Keep these important operating instructions. Check www.tecnare.com for updates.
- Page 3 EXEL ACOUSTICS SL CL Encinar, 282 – Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (Toledo) Spain Phone: (+34) 918 170 110 Fax: IBZA Series | rev. e-mail: support@tecnare.com www.tecnare.com...
-
Page 4: Important Safe Instructions
Use the rigging accessories described in the rigging manual a follow the associated procedures. CAUTION: Rigging should only be done by experience professionals. This speaker enclosure is capable of creating a strong magnetic field. Please use IBZA Series | rev. -
Page 5: Declaración De Conformidad
(1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE (3) Directiva RoHS - 2011/65/UE (4) Directiva RAEE - 2012/19/UE (1) Low Voltage Directive 2006/95/CE (2) EMC 2004/108/CE (3) RoHS Directive 2011/65/UE (4) WEEE Directive 2012/19/UE IBZA Series | rev. -
Page 6: Table Of Contents
Connection to PA4.450 ................... 13 Integrating IBZA6Plus Using Subwoofers ..............15 Connection to PA900....................14 Connection to T-44 Series ..................14 Technical specifications ....................16 Integrating IBZA6Plus Loudspeakers Systems with Tecnare Subwoofers ....15 Signal Delay ......................15 1.00 IBZA Series | rev. -
Page 7: Introduction
All Tecnare products are carefully engineered for world-class performance and reliability. ® If you would like further information about this or any other Tecnare product, please contact us. We look forward to helping you in the near future. As part of a continuous evolution of techniques and standards, Exel Acoustics ®... -
Page 8: Ibza Series
IBZA Series constitutes a broad range of point source, full range loudspeakers that providing high SPL, different directivities patterns and a good sonic performance off-axis. The IBZA Series is suited to various sound reinforcement applications as a main or complementary system. -
Page 9: The Ibza6Plus Ultra-Compact Loudspeaker
T-Series amplifiers are available to operate the IBZA6Plus in full-range mode or combined with Tecnare® subwoofers. The ultra-compact IBZA6Plus offers total versatility between all types of near-field listening applications: stage monitoring; distributed systems; in-fill/near-fill/delay etc; PA with or without subwoofers. -
Page 10: Connections
® Only operate Tecnare loudspeaker with a correctly configured Tecnare preset. Tecnare offer a complete solution that guarantees the highest level of performance. A complete range of controllers, amplified and amplified controller with DSP are available to get this objective. - Page 11 To power IBZA Series, Tecnare recommends amplifiers with the power ratings enough to feed the loudspeakers. In any case, the Tecnare processors should be deployed in front of the amp to ensure that the amplifiers to not go into clip.
-
Page 12: 1.3 Loudspeaker Configuration
If your IBZA6Plus loudspeakers and subwoofers are separated by a greater distance - or delay must be used between them - a measurement system such as SMAART should be used to determine the correct delay and polarity. IBZA Series | rev. - Page 13 Operation Manual Frequency Range (+/- 6dB) 40- 20KHz Recommended ratio 1xSW-118M: 4xIBZA6Plus IBZA6Plus + SW-118M IBZA Series | rev.
-
Page 14: Configuration
Tecnare loudspeaker controllers. ® Tecnare only recommends using preset/amplifier developed by Tecnare; otherwise there is a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series amplifier and T-Series amplifier are ideal for this purpose. Ensure that the right preset was selected before connecting the loudspeaker with the amplifier. -
Page 15: Connection To Pa900
Therefore, a single T-44 amplifier controller can drive up to 16 enclosures. A single T-48 amplifier controller can driven 32 enclosures Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures, 2Ω for 4 enclosures. IBZA Series | rev. T-44 Series Amplifier... -
Page 16: 3.2 Integrating Ibza6Plus Using Subwoofers
Integrating IBZA6Plus Loudspeakers Systems with Tecnare Subwoofers An IBZA6Plus loudspeaker system can be deployed in combination with Tecnare's subwoofers likes a SW-12, SW115, and SW118M. These subwoofers can achieve very low frequency response extending system response appreciably and increasing the overall acoustic power of a system in the lowest frequencies. -
Page 17: 4.1 Technical Specifications
2 x M6 insert for TUB-6Plus U-Bracket, Wall Bracket and Horizontal Array Frame Dimensions (HxWxD) 230mm x 211,7mm x 223mm (9.05” x 8.31” x 8.78”) Weight 5,3 Kg. (11.68 lbs) Custom finish White code available on request Without charge. RAL code on special order. IBZA Series | rev. - Page 18 Operation Manual IBZA6Plus Dimensions IBZA Series | rev.
- Page 19 Operation Manual IBZA Series | rev.
- Page 20 Exel Acoustics. Tecnare and PCC-Net are trademarks of Exel Acoustics SL. Podware, System Engineer, BvNet, Smaart and all third-party trademarks mentioned herein are the property of their respective trademark holders.
- Page 21 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:1.00 2017...
