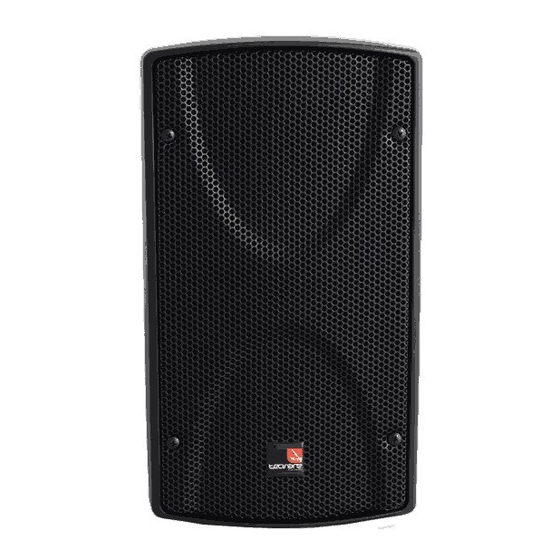

TECNARE IBZA Series Operation Manual
Ultra-compact loudspeaker
Hide thumbs
Also See for IBZA Series:
- Operation manual (24 pages) ,
- Operation manual (21 pages) ,
- Operation manual (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for TECNARE IBZA Series
Summary of Contents for TECNARE IBZA Series

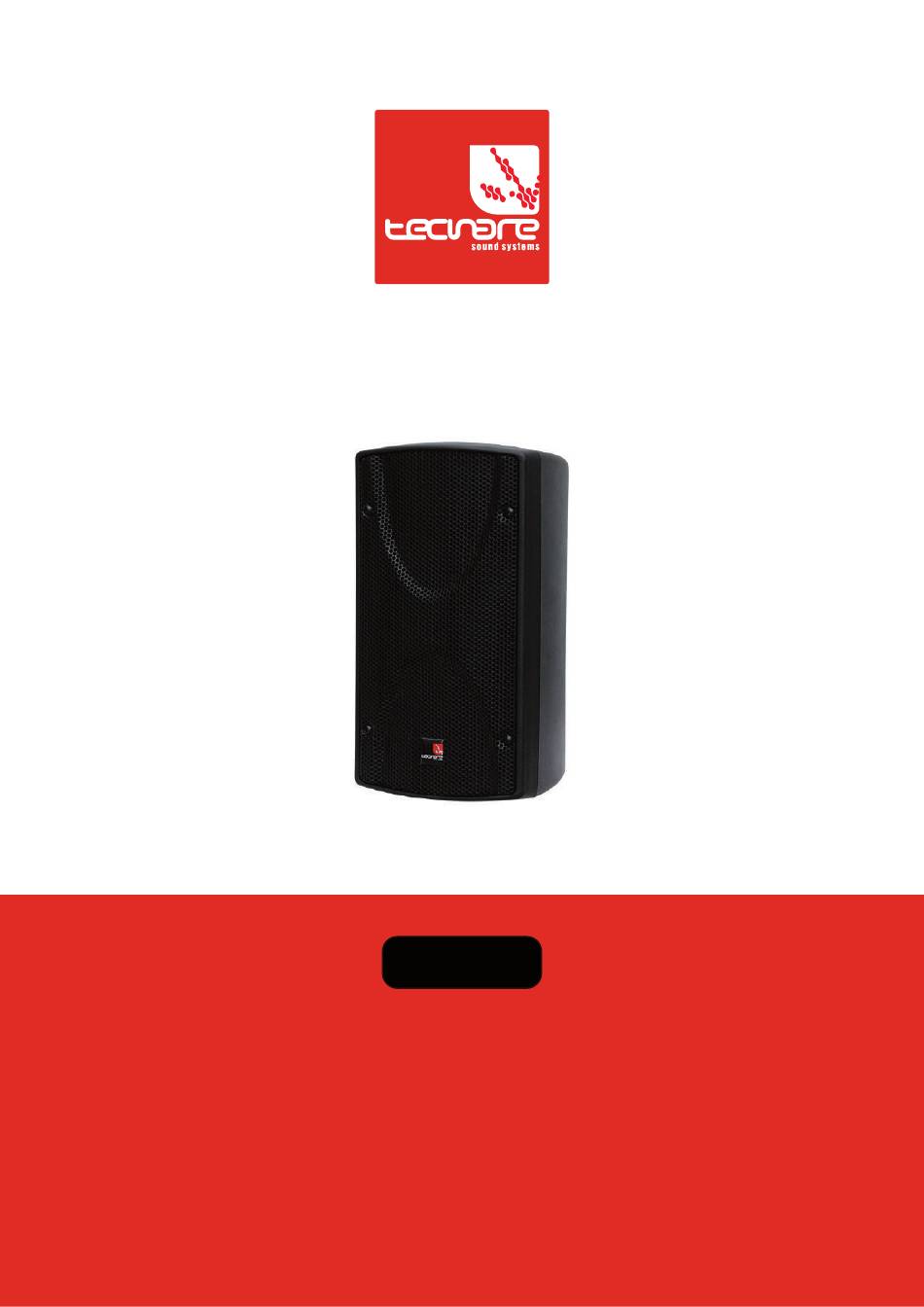

- Page 1 Operation Manual IBZA Series IBZA P204 Keep these important operating instructions. Check www.tecnare.com for updates. Ultra-Compact Loudspeaker...
- Page 3 As manufacturers 2.50 we reserve the right to make alterations and IBZA Series | rev. modifications within the framework of legal provisions, as well as changes aimed at improving quality. EXEL ACOUSTICS SL CL Encinar, 282 –...
-
Page 4: Important Safe Instructions
Use the rigging accessories described in the rigging manual a follow the associated procedures. CAUTION: Rigging should only be done by experience professionals. This speaker enclosure is capable of creating a strong magnetic field. Please use 2.50 IBZA Series | rev. -
Page 5: Declaración De Conformidad
(1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE (3) Directiva RoHS - 2011/65/UE (4) Directiva RAEE - 2012/19/UE (1) Low Voltage Directive 2006/95/CE (2) EMC 2004/108/CE (3) RoHS Directive 2011/65/UE (4) WEEE Directive 2012/19/UE 2.50 IBZA Series | rev. -
Page 6: Table Of Contents
Installation ........................15 Connection to PA4.450 ................... 12 Technical specifications ....................16 Connection to PA900....................13 Connection to T-44 Series ..................13 Integrating IBZAP204 Loudspeakers Systems with Tecnare Subwoofers ....14 Signal Delay ......................14 2.00 IBZA Series | rev. -
Page 7: Introduction
All Tecnare products are carefully engineered for world-class performance and reliability. ® If you would like further information about this or any other Tecnare product, please contact us. We look forward to helping you in the near future. As part of a continuous evolution of techniques and standards, Exel Acoustics ®... -
Page 8: Ibza Series
IBZA Series constitutes a broad range of point source, full range loudspeakers that providing high SPL, different directivities patterns and a good sonic performance off-axis. The IBZA Series is suited to various sound reinforcement applications as a main or complementary system. -
Page 9: The Ibzap204 Compact Loudspeaker
Special mounting bracket is designed for convenient min. 10 splay angle adjustment of the cabinet vertically is available. Connections IBZAP204 loudspeaker utilizes Banana Plug connectors. There are two connectors on the rear of each IBZAP204. The following subsections describe the electrical connections. Internal pinout for IBZAP204 enclosures 2.50 IBZA Series | rev. -
Page 10: Processing And Amplification
To power IBZA Series, Tecnare recommends amplifiers with the power ratings enough to feed the loudspeakers. In any case, the Tecnare processors should be deployed in front of the amp to ensure that the amplifiers to not go into clip. -
Page 11: Loudspeaker Configuration
If your IBZAP204 loudspeakers and subwoofers are separated by a greater distance - or delay must be used between them - a measurement system such as SMAART or SYSTune should be used to determine the correct delay and polarity. 2.00 IBZA Series | rev. - Page 12 Loudspeaker Configuration Frequency Range (+/- 6dB) 40- 20Hz Recommended ratio 1xSW-12: 4xIbzaP204 IBZAP204 + SW-12 MiniSub 2.50 IBZA Series | rev.
-
Page 13: 1.2 Configuration
Tecnare loudspeaker controllers. ® Tecnare only recommends using preset/amplifier developed by Tecnare; otherwise there is a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series amplifier and T-Series amplifier are ideal for this purpose. Ensure that the right preset was selected before connecting the loudspeaker with the amplifier. -
Page 14: Connection To Pa900
Therefore, a single T-44 amplifier controller can drive up to 32 enclosures. A single T-48 amplifier controller can drive up to 64 enclosures Impedance load: 16Ω for 1 enclosure, 4Ω for 4 enclosures, 2Ω for 8 enclosures. 2.50 IBZA Series | rev. T-44 Series Amplifier... -
Page 15: 2.1 Integrating Ibzap204 Using Subwoofers
Integrating IBZAP204 Loudspeakers Systems with Tecnare Subwoofers An IBZAP204 loudspeaker system can be deployed in combination with Tecnare's subwoofers likes a SW-12, SW115, SW118M. These subwoofers can achieve very low frequency response extending system response appreciably and increasing the overall acoustic power of a system in the lowest frequencies. -
Page 16: Installation
Technical Specifications Installation The bracket included with the enclosure allows deployment on wall-mounted or ceiling- mounted with an adjustable splay angle of 10º. 2.50 IBZA Series | rev. -
Page 17: Technical Specifications
Powder-coated perforated steel with acoustically transparent reticulated foam Rigging 4 x M4 insert for Special Mounting Bracket Dimensions (HxWxD) 320mm x 182mm x 182mm (12.6” x 7.16” x 7.16”) Weight 4,5 Kg. (14.10 lbs) Custom finish 2.50 IBZA Series | rev. - Page 18 Operation Manual IBZAP204 Dimensions 2.50 IBZA Series | rev.
- Page 19 Operation Manual 2.50 IBZA Series | rev.
- Page 20 Exel Acoustics. Tecnare and PCC-Net are trademarks of Exel Acoustics SL. System Engineer, BvNet, Smaart, SYSTune and all third-party trademarks mentioned herein are the property of their respective trademark holders.
- Page 21 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:2.50 2016...
