TECNARE Versatile V Series User Manual

Loudspeakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

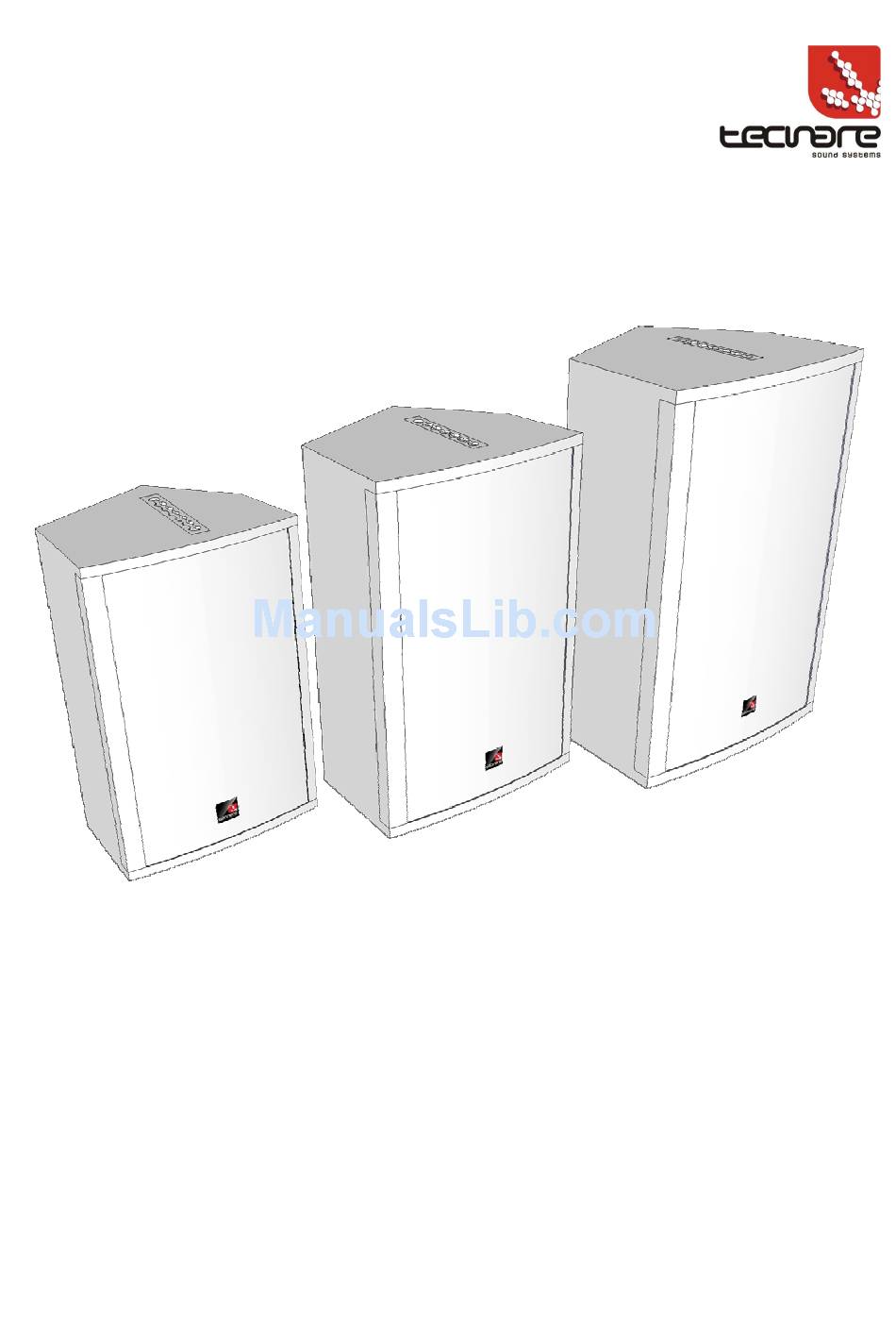

V SERIES USER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Versatile V Series and is the answer not in the manual?

Questions and answers

Related Manuals for TECNARE Versatile V Series

Summary of Contents for TECNARE Versatile V Series

  • Page 1 V SERIES USER’S MANUAL...

  • Page 2: Table Of Contents

    On wind stand or on SW118 ............. 27 Contact ......................... 28 1 INTRODUCTION Thanks for purchasing TECNARE. This product comprises the best quality designed to offer a professional use for many years. V Series means Versatile loudspeakers, DSP controlled networking powered and non-...
  • Page 3 V series User’s Manual Common characteristics to all models are: Multiply Birch plywood enclosures. • Highest quality speaker standards. • Weather proof protection, both in speakers components and enclosures. • Very high power capacity. • Proprietary wave guide design. • Hi-fi quality speaker response.

  • Page 4: Safety

    V series User’s Manual 2 SAFETY Some terminals carry electrical current of 2. KEEP THESE INSTRUCTIONS sufficient magnitude to constitute a risk of safety operating instructions electric shock. only high-quality should be retained for future reference. commercially-available speaker cables 3. HEED ALL WARNINGS with ¼”...
  • Page 5 V series User’s Manual bookcase or rack unless proper ventilation fall, causing serious injury provided manufacture's someone, and serious damage to the instructions have been adhered to. appliance. A unit and cart combination 8. DO NOT INSTALL NEAR ANY HEAT should be moved with care.

  • Page 6: Series Features

    V series User’s Manual 3 V SERIES FEATURES V Series means Versatile loudspeakers, Consisting of seven models, and suitable DSP controlled networking powered and for portable or fixed installation dance non-powered, portable sound sound reinforcement applications, reinforcement products, ideally suited to IBZA Series has set the standard for all kinds of live performance, including professional disco loudspeaker systems.

  • Page 7: System's Features

    V series User’s Manual 4 SYSTEM’S FEATURES V 10 Rotatable horn allows swap of horizontal and vertical pattern. Frequency Response: 52Hz-20kHz ±4dB Impedance: 8 Ohm Nominal Dispersion: 90ºH x 60ºV @ -6dB Sensitivity: 101dB (1w/1m) Impedance: 8 Ohm Calculated max SPL: 130dB Continuous Sensitivity: 97dB (1w/1m) Power Handling: 720W nominal...

  • Page 8: Amplifier Selection

    Array series or Tenare unit. parameters include levels, delay, polarity, 8 bands of parametric EQ per Tecnare recommends a maximum length channel, multiple crossover selections, cable according to the section cable used. compressor, Limiter, USB and Ethernet port connection. Precise frequency control Section [mm is achieved with its 1 Hz resolution.

  • Page 9: Front Panel Functions

    V series User’s Manual USB port connection. 4.- LCD Screen CH-A: Show all the • Ethernet port connection necessary information to control de unit • 30 bands Input graphic equalizer. 5.- Rotary thumb wheel CH-A: Allows you • bands Output Parametric to switch between presets.

  • Page 10: Series Recommended Configurations

    V series User’s Manual 5.1.4 V Series Recommended configurations. 10/28...
  • Page 11 V series User’s Manual 11/28...
  • Page 12 V series User’s Manual 12/28...

  • Page 13: Pcc Advanced Series

    V series User’s Manual 5.2 PCC ADVANCED SERIES PCC Advanced series allows control in real time the parameters of each speaker individually or grouped as we decide, factors such as volume, graphic equalisation, parametric equalisation, crossover, box delay, clock settings, internal delays, compressor-limiters, check test, save and recall of presets, mute, transfer spectrum analysis, real time analyzer spectrum control, phase check…...

  • Page 14: Back Panel

    V series User’s Manual 5.2.2 Back Panel Original Series 14/28...
  • Page 15 V series User’s Manual Advanced Series: 15/28...
  • Page 16 V series User’s Manual Cobranet Series: 16/28...

  • Page 17: Connection Diagram

    5.2.4.2 USING THE PCC CONTROLLER 5.2.4 Pcc Advaced Software ADVANCED SERIES User’s Manual The Tecnare PCC Controller advanced 5.2.4.1 INSTALLATION series software application provides real- time control and configuration editing for 1.- Click on Pcc12G_Setup.exe icon the DPA-28X using a laptop or other PC- 2.- Follow the wizard instruction (for...
  • Page 18 V series User’s Manual Save Set: Save the current set of • To start the application click on the PCC 10 presets to a file. Icon on your desktop Exit: Exit the application • It will appear a screen as is in the CONNECT following image: On line: Connects the computer to the...
  • Page 19 V series User’s Manual The output level is controlled by the fader INPUT SECTION control. INPUT LEVEL This section contains following modules: Unit ID and grouping. • Signal Generator • Input Level • Input Compressor • General Setup • 30 bands Graphic equalizer •...
  • Page 20 V series User’s Manual INPUT COMPRESSOR signal falls below the threshold. It is calibrated in milliseconds, with a range from 10 ms to 2500 ms (2.5 seconds). Ratio: This determines the change • in output level as a function of the change in input level, once the threshold has been exceeded.
  • Page 21 V series User’s Manual Changes made in the PC software are Transfer Function immediately executed in the DPA-28X, Phase Response and stored in the selected preset. Impulse Response A Preset name can also be stored. Average: Eight different time • average can be selected: 1, 5, 10, ANALYZER 20, 30, 50, 80 and 120.
  • Page 22 V series User’s Manual so the user can see the window behind. PHASE RESPONSE It allows the user to analyze the phase response of an installation SPECTRUM ANALYZER This feature allows the user to visualize the spectral components either of the input signal (given by microphone...
  • Page 23 V series User’s Manual GRAPHIC EQUALIZER Click the ON button to turn the Graphic EQ on and off Click and drag on the slider fader to adjust Three different kinds of filters can be the equalization from -15dB to +15dB. selected: OUTPUT SECTION Bessel...
  • Page 24 V series User’s Manual Frequency: Ranges from 20 to LIMITER • 20,000Hz in 1Hz steps Bandwidth: Ranges from 0.1 to 2 • Octaves Level: Ranges from -25dB to 25dB • Threshold: THRESHOLD • controls continuously adjustable from -40dBu (maximum limiting) to 17dBu Bypass: Turn the module in bypass •...

  • Page 25: Rigging

    When flying outdoor systems ensure that the system is not exposed to excessive • wind or snow loads and is protected from rainfall. When deploying Tecnare Systems always wear protective headwear, footwear and • eye protection Ensure that all local and National regulations regarding the safety and operation of •...

  • Page 26: Single V10/V12/V15

    V series User’s Manual Accessories are: • LP_V • 5.3.2.2 Mounted On a wall. 5.3.2 Single V10/V12/V15 Items required: 5.3.2.1 Flown Vertically LP_V10/LP_V12/LP_V15 • Items required: L_V10/L_V12/L_V15 • Double Stud Ring Procedure: • Procedure: Remove the two up-side screws • Place the Double stud ring into the •...

  • Page 27: On Wind Stand Or On Sw118

    V series User’s Manual 5.3.2.3 On wind stand or on SW118 Items required: 1x Wind stand • 27/28...

  • Page 28: Contact

    V series User’s Manual 6 Contact Exel Acoustics, S.A. Poligono Industrial Monte Boyal C/Encinar, 282 45950 Casarrubios del Monte Toledo – Spain sales@tecnare.com Phone: +34 918 170 110 Fax: +34 918 183 053 28/28...

This manual is also suitable for:

V seriesV 10V 12V 15
