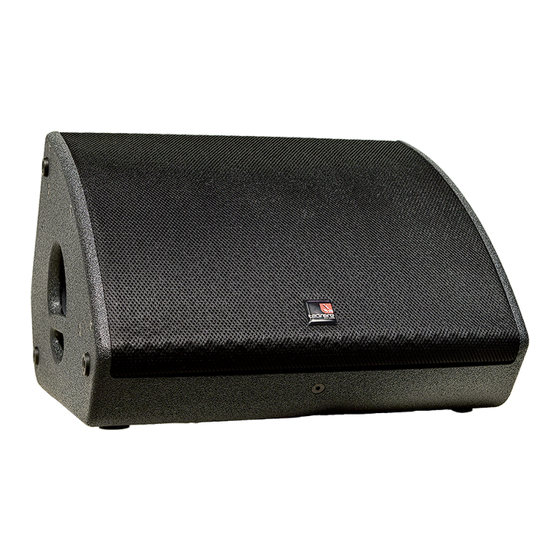

- Page 1 Operation Manual Version 1.0 V Series V14CX Coaxial Loudspeaker Keep these important operating instructions. Check www.tecnare.com for updates.
- Page 3 EXEL ACOUSTICS SL CL Encinar, 282 – Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (Toledo) Spain Phone: (+34) 918 170 110 Fax: e-mail: support@tecnare.com www.tecnare.com...
-
Page 4: Important Safe Instructions
Operation Manual IMPORTANT SAFE INSTRUCTIONS Before using our product, be sure to carefully read the manual and safe Instructions. Keep this document with the device all time. Read these instructions. several enclosures on top of one another, straps secure them against Keep these instructions. - Page 5 Operation Manual SYMBOLS USED OBLIGATION. Important operating Additional This instructions instructions information must be strictly followed Obligation. Cela Pour indequer important Information doit être Instructions complémentaire strictement instructions Suivi Wichtige Pflicht. Diese Betriebsanweisung Informationen. Anweisungen oder Zusätzliche müssen strikt Gebrauchsanleitung Informationen befolgt sanleitung...
-
Page 6: Declaración De Conformidad
Operation Manual DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY EXEL ACOUSTICS SL CL Encinar, 282. Polígono Industrial Monte Boyal. 45950 – Casarrubios del Monte (Toledo), España (Spain). Declara que el producto V14CX y sus respectivas opciones, cumple con las Directivas: Declare under our sole responsibility that devices in the V14CX range of products, comply with relating Directives: (1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE... -
Page 7: Table Of Contents
Table of Contents Table of Contents IMPORTANT SAFE INSTRUCTIONS ..................3 DECLARACIÓN DE CONFORMIDAD ..................5 Introduction ........................7 Welcome to Tecnare ....................7 Overview the V14CX ....................8 Connections ......................... 9 Operation modes......................10 Processing and Amplification ..................11 Dispersion Characteristics .................... -
Page 8: Introduction
All Tecnare products are carefully engineered for world-class performance and reliability. ® If you would like further information about this or any other Tecnare product, please contact us. We look forward to helping you in the near future. As part of a continuous evolution of techniques and standards, Exel Acoustics ®... -
Page 9: Overview The V14Cx
The V14CX loudspeaker is recommended for all applications and offers clarity and control in a compact format. Tecnare V14CX is designed as a complete system with the T-Series class D amplifier or DP-4896 DSP controller. Tecnare only recommends using presets developed by Tecnare Sound System. -
Page 10: Connections
Operation Manual Connections ® ® The V14CX loudspeaker utilizes Neutrik SpeakON connectors. There are two NLT4 ® connectors on the rear of each V14CX. These connectors made with Neutrik NL-4 or NL-4 compatible in-line cable connectors. All four pins of both connectors are wired in parallel to link multiple loudspeakers on a single amplifier output. -
Page 11: Operation Modes
Operation Manual Operation modes The V14CX may be switched between passive (full-range) mode and Bi-amped mode. It has a selector switch located in the rear recess on the connection panel. In the PASSIVE mode the V14CX is driven with a full-frequency range amplifier channel, and wire only the 1+ and 1- pins of the NL4 connectors. -
Page 12: Processing And Amplification
In certain specific cases it is possible to slightly under-power the subs or loudspeakers as long as the amplifier will not be driven to its limits. In any case, the Tecnare processors should be deployed in front of the amp to ensure that the amplifiers to not go into clip. -
Page 13: Dispersion Characteristics
Operation Manual Dispersion Characteristics The graph below is showing the dispersion angle over frequency of a V14CX enclosure. Isobar diagram V14CX horizontal Isobar diagram V14CX vertical... -
Page 14: Amplifier Selection For V14Cx
Also, Tecnare PA Series two and four channel power amplifiers are recommended for use with V Series together with the DP4896 processors. These amplifiers work well at 4 ohms, making it possible to power two cabinets in parallel from each amplifier channel. -
Page 15: Recommended Speaker Cables
Damping factor is a ratio of rated loudspeaker impedance (ZL) to the source impedance (Zs). In this case our source impedance is (Rcable + Ramplifier). Damping Factor = Z ® The table below indicates the cable valour recommended by Tecnare Recommended maximum length 8 Ω 4 Ω... -
Page 16: Loudspeaker Connection
Tecnare loudspeaker controllers. ® Tecnare only recommends using preset/amplifier developed by Tecnare; otherwise there is a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series amplifier and T-Series amplifier are ideal for this purpose. Ensure that the right preset was selected before connecting the loudspeaker with the amplifier. -
Page 17: Connecting V14Cx To Pa4.1500
Operation Manual Connecting V14CX to PA4.1500 MAXIMUM OF 2 ENCLOSURES PER PA4.1500 2 x V14CX can be connected in parallel to each pair of output channels on the PA4.1500 amplifier. Impedance load: PASSIVE: 1 Enclosure: 8Ω; 2 Enclosures: 4Ω BI-AMP: 1 Enclosure → LF: 8Ω; HF: 8Ω; 2 Enclosures → LF: 4Ω; HF: 4Ω SPK-CABLE SPK-CABLE OUT2:HF... -
Page 18: Connecting V14Cx To T-Series
Operation Manual Connecting V14CX to T-Series MAXIMUM NUMBER OF ENCLOSURES PER T-SERIES Max enclosures in parallel Max enclosures by amplifier Enclosure T20- T10- T06- T10- T06- T03- T20- T10- T06- T10- T06- T03- V14CX BI-AMP V14CX PASSIVE * For bi-amp loudspeaker, the value corresponds to the number of cabinet connected in parallel in the way by output. -
Page 19: Loudspeaker Configuration
Ensure that the loudspeakers are securely attached to prevent personal injury and property damage. NOTE TECNARE recommends using only the accessories specified by TECNARE to secure the loudspeakers. Rotating the horn The horn of V14CX loudspeaker is mounted at the factory for use as a stage monitor such a way its horizontal coverage is 40º... - Page 20 Operation Manual 1. Place the V14CX loudspeaker with the wedge inclined toward you with the front grill facing up. Ensure that the working surface is clean with a non-slip finish. 2. To remove the front grill of the loudspeaker, use a 6 mm hex key. Remove the six fixing screws placed at both side loudspeaker enclosures.
-
Page 21: Transport And Storage
Operation Manual Transport and storage Because the V14CX loudspeaker weighs over 18 kg (555lbs), When the enclosure is transported or stored, it is very important to ensure that both the finish and front grille are not damaged. The following accessory parts for transport and storage are available from Exel Acoustics: ... -
Page 22: Technical Specifications
Technical Specifications Technical specifications ACOUSTICAL 55/65 (1) Hz – 18kHz±3dB (1 box), measured on axis. Recommended operating frequency range. Operating Frequency Range Response depends on loading conditions and room acoustics Axial Sensitivity 99 dB (1w/1m) Bi-amp: 125 dB continuous/131 Peak [V14CX_FOH] Preset Calculated SPL Passive: 124 dB continuous/130 Peak [V14CXP_FOH] Preset Horizontal: 40º... - Page 23 Operation Manual V14CX Dimensions...
- Page 24 Operation Manual...
- Page 25 Exel Acoustics. Tecnare and PCC-Net are trademarks of Exel Acoustics SL. Podware, System Engineer, BvNet, Smaart and all third-party trademarks mentioned herein are the property of their respective trademark holders.
- Page 26 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain (e) support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:1.00 2018...
