Leviton LP3 MC Series Installation Instructions

INSTALLATION INSTRUCTIONS

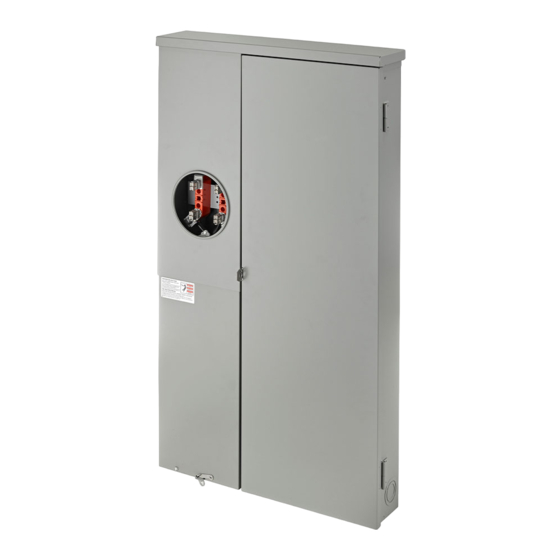

Outdoor Meter - Load Center Combination Enclosure
Cat. Nos. LP3xx-MC, LP4xx-MC
IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING.
• TO AVOID FIRE, SHOCK, OR DEATH: TURN OFF POWER THAT IS SUPPLYING THIS EQUIPMENT AND CONFIRM POWER IS OFF
before installing, removing, or servicing this equipment.
• This equipment MUST BE installed and serviced by an electrician.
• To be installed and/or used in accordance with electrical codes and regulations.
• Use ONLY approved fittings and clamps to avoid damage to wires.
• Leviton circuit breakers MUST BE used with a Leviton circuit breaker enclosure.
®
• Before providing power to the load center, check all electrical connections and confirm that the wiring is correct.
• Replace all doors and covers before connecting power to this equipment.
•
SAVE THESE INSTRUCTIONS.
LIMITED PRODUCT WARRANTY
For Leviton's limited product warranty, go to www.leviton.com. For a printed copy of the warranty, you may call 1-800-323-8920.
Patents covering this product, if any, can be found on Leviton.com/patents.

INSTALLATION

WARNING: TO AVOID FIRE, SHOCK,
OR DEATH: TURN OFF POWER THAT
IS SUPPLYING THIS EQUIPMENT AND
CONFIRM POWER IS OFF before installing,
removing, or servicing this equipment.
Step 1: Remove meter and wiring
compartment covers
(Figure 1).
a. Remove meter cover (B) by loosening
the securing screw (J) and sliding cover
down and out.
b. Remove wiring compartment cover (C)
by loosening the securing screw (K), sliding
the securing latch (A) upward, and
sliding cover out and down.
c. Slide the wiring compartment cover (C)
up and out.

Step 2: (Optional) Remove load center door.

NOTE: The load center door can be removed for
easier installation.
a. Lift door (D) upward to remove from
hinge (E) (Figure 2).
b. When installation is complete, align the
door hinge (E) with the hinge pin and insert
downward until door is seated.

Step 3: Wire bottom feed.

NOTE: Before removing any knockouts from
the enclosure, consult local electrical codes to
determine the knockout requirements.
a. To remove knockouts (F), first strike the center
of the knockout.
b. Pry each ring (G) up, one at a time, and grip
both ends with a pair of pliers.
c. Use pliers to bend the rings (E) until they
disconnect from the enclosure (Figure 3).

Step 4: Mount the enclosure.

a. Remove the deadfront (S) by loosening the
securing screw (T) and lifting the deadfront
(S) off the enclsoure (Figure 9).
b. Remove mounting knockouts (H) from the
back of the enclosure (Figure 4).
c. Use outdoor-approved screws or nails (not
provided) in the mounting knockouts (H) to
secure the enclosure to the wall.
WARNINGS

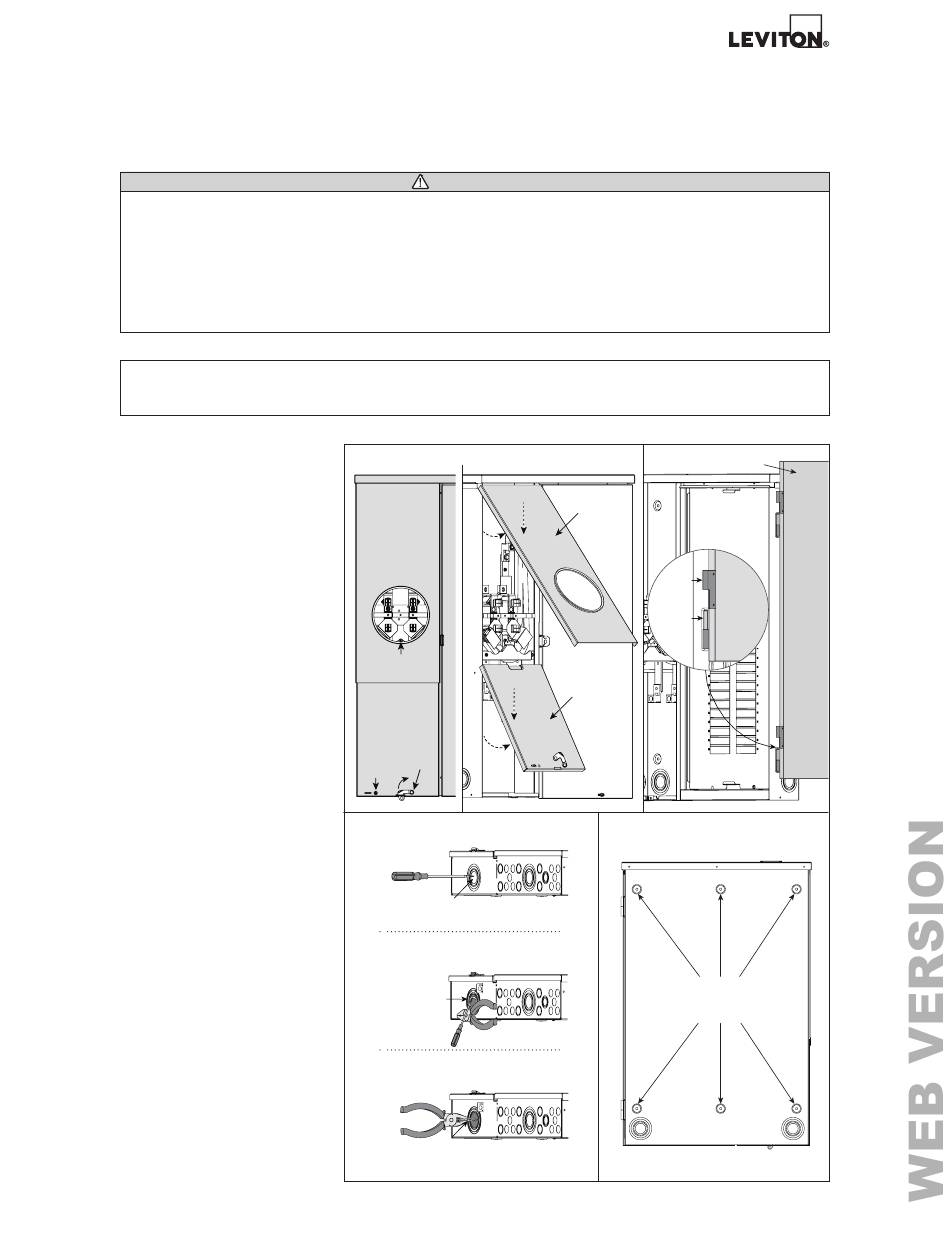

Figure 1
Down
Out
Meter Cover (B)
Screw
(J)
Down
Wiring
Compartment
Cover (C)
Out
Securing
Screw
Latch (A)
(K)
Figure 3
a.
Knockout
(F)
b.
Ring
(G)
c.
Ring
(E)
PK-A3218-10-00-0C
Figure 2
Door (D)
Meter Cover
(B)
Hinge (E)
Hinge Pin
Wiring
Compartment
Cover (C)
Figure 4
Mounting
Knockouts
(H)
