Leviton LP3-MC Series Installation Instructions

INSTALLATION INSTRUCTIONS

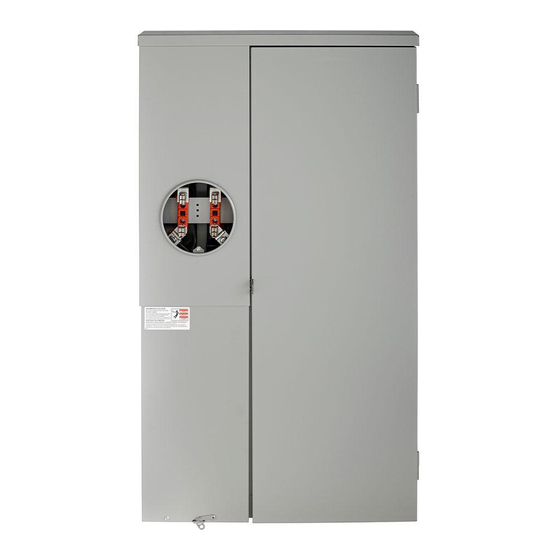

Outdoor Meter - Load Center Combination Enclosure
Nos. LP3xx-MC, LP4xx-MC
IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING.
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER SUPPLYING THIS EQUIPMENT, AND CONFIRM POWER IS OFF,
before installing, removing or servicing this equipment.
• This equipment MUST BE installed and serviced by an electrician.
• Replace all doors and covers before connecting power to this equipment.
• To be installed and/or used in accordance with electrical codes and regulations.
LIMITED PRODUCT WARRANTY
For Leviton's limited product warranty, go to www.leviton.com. For a printed copy of the warranty you may call 1-800-323-8920.
PATENTS PENDING
INSTALLATION
WARNING: TO AVOID FIRE, SHOCK OR
DEATH: TURN OFF POWER SUPPLYING
THIS EQUIPMENT, AND CONFIRM POWER
IS OFF, before installing, removing or
servicing this equipment.

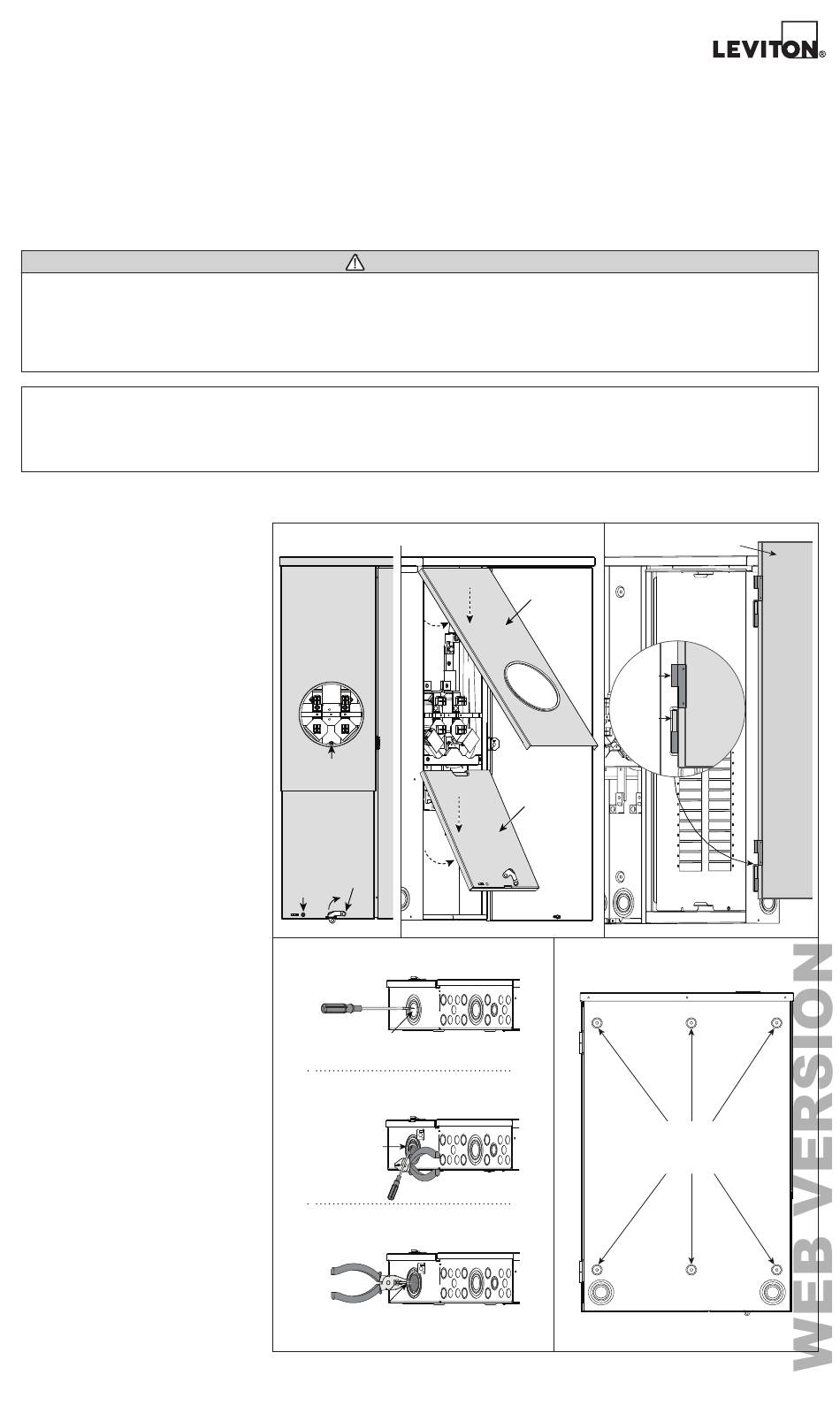

Step 1: Remove meter and wiring
compartment covers (fig. 1)
a. Remove Meter cover (B) by loosening
the securing screw (J) and sliding cover
down and out.
b. Remove wiring compartment cover (C)
by loosening the securing screw (K) and
sliding security latch (A) upward and
sliding cover out and down.
c. Slide wiring compartment cover (C)
up and out.

Step 2: Remove Load Center Door (Optional)

NOTE: The load center door can be removed for
easier installation.
a. Lift door (D) upward to remove from
hinge (E) (fig. 2).
b. When installation is complete, align the
door hinge (E) with the hinge pin and insert
downward until door is seated.

Step 3: Bottom Feed Wiring

NOTE: Before removing any knockouts from the
enclosure, consult the local electrical code to
determine the knockout requirements.
a. To remove knockouts (F), first strike the center
of the knockout.
b. Pry each ring (G) up, one at a time, and grip
both ends with a pair of pliers.
c. Use the pliers to bend the rings (G) until they
disconnect from the enclosure (fig. 3).

Step 4: Enclosure Mounting

Surface Mounting
a. Remove deadfront (S) by loosening the securing
screw (T) and lifting the deadfront (S) off the
enclsoure.
b. Remove mounting knockouts (H) from the back
of the enclosure (fig. 4).
c. Use outdoor approved screws or nails (not
provided) in the mounting knockouts (H) to
secure the enclosure to the wall.
