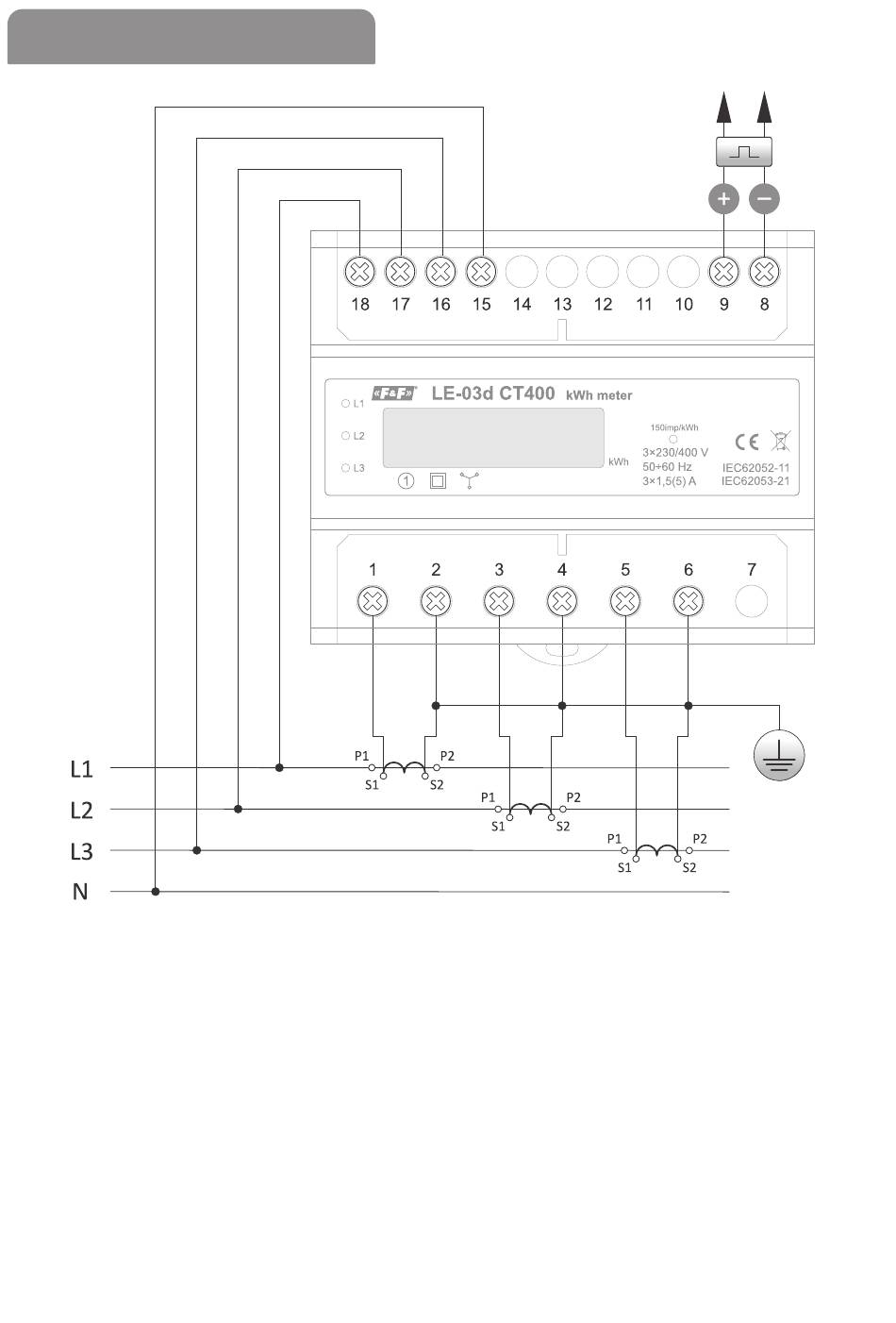

Schemat podłączenia
Current measurement circuits:
1-2
3-4
5-6
Pulse output (open collector):
L1 phase
L2 phase
L3 phase
8
transistor emitter (–)
9
transistor collector (+)
- 5 -
cont. on next page
