sitrex TR/11 Assembly, Use And Maintenance

Hay rake, pull type
Hide thumbs

Advertisement

Quick Links

Download this manual

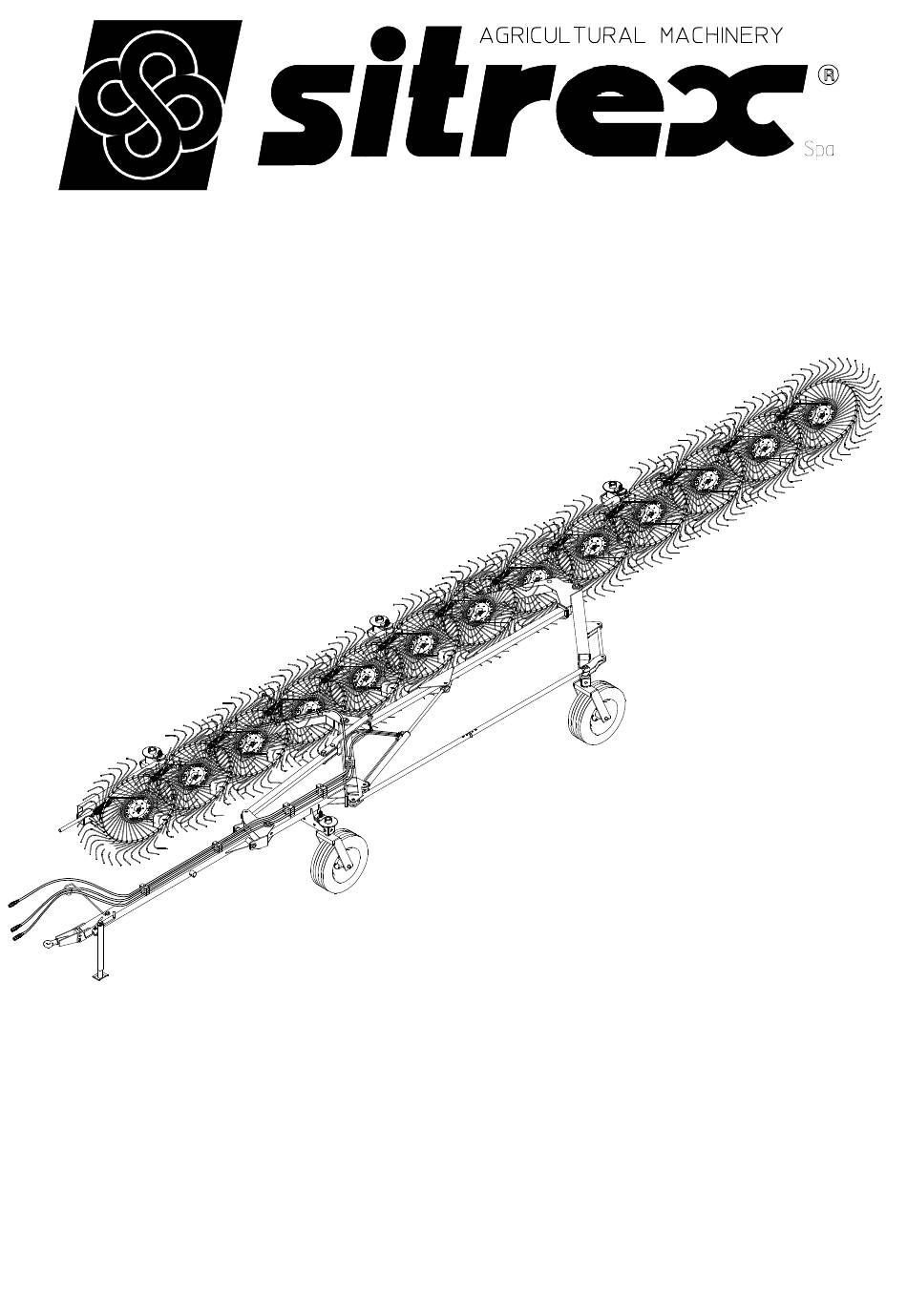

ASSEMBLY,
USE AND MAINTENANCE
HAY RAKE, PULL TYPE
TR/11-13 S

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR/11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sitrex TR/11

Summary of Contents for sitrex TR/11

  • Page 1 ASSEMBLY, USE AND MAINTENANCE HAY RAKE, PULL TYPE TR/11-13 S...

  • Page 2: Warranty

    Introduction This manual includes full instructions for the correct use and maintenance of the machinery, and also the recommended spare parts list. In order to prevent any possible damage or injury to the machine and/or the operator(s), read this manual carefully for proper knowledge of the assembly of the implements, their use in the field, and their maintenance.
  • Page 3 1)General instructions for operation and maintenance Read all the directions carefully before using the machine. When in doubt, seek advice from the manufacturers. The manufacturing company declines all liability for non-compliance with the following safety and accident-prevention instructions. 1- Pay attention to the danger signs and symbols in this manual and on the machine. 2- Do not touch moving parts.
  • Page 4 2) Guide to the signs and symbols used on the machine IMPORTANT These signs and symbols give information to the operator on how to make the best use of the machine so as to prolong its life, avoid damage, optimize work and, above all, to avoid injury to the operator and anyone within range of the machine.
  • Page 5 4) Risk of possible ejection of blunt objects. Keep a safe distance from the machine 5) Indicates that there is a risk of crushing your hands. Keep your distance. 6) Indicates a greasing point.
  • Page 6 Examples of general measurements for identifying the assembly accessories based on type. When tightening the bolts refer to the tightening torque table (the class of the material is generally stamped on the head of the bolts).

  • Page 7: Product Identification

    3) Product identification Please write below the type and serial number of the machine. This information is to be provided to the dealer for all spare parts orders. MACHINE SPECIFICATIONS DRAWBAR TIE ROD PARKING STAND SUPPORT TIE ROD FRONT ARM WHEEL ASSY.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS MODELS TR/11 TR/13 Weight 1400 Kg / 3100 lb 1500 Kg / 3300 lb Overall length (A) 10.3 m / 33’8” 12.8 m / 42’ Transport height (B) 1.750 m / 68.9” 1.750 m / 68.9” Transport width (C) 2.48 m / 97.6”...

  • Page 9: Delivery And Assembly

    4) Delivery and assembly Delivery and unpacking The machine is delivered partially assembled in 1 (one) box containing 6 (six) boxes and 1 (one) pallet. The boxes "A", "B", “C”, ”D”, ”E”, and “F” are all the various mounting accessories (pins, screws, fittings, etc..) components are inspected by...
  • Page 10 Assembly instructions ATTENTION Assembly must be done carefully and accurately, for the safety of the person(s) doing the assembling and to ensure proper machine operation. Assembly should be done on a flat, solid surface, using the proper tools and wearing suitable clothing, making sure that all people not involved in the assembly are kept at a safe distance.
  • Page 11 Step 1 Step 1 Set sections 1 and 2 on supports A, then connect the two sections using bolts 3 and nuts 4. (If you do not have supports, the assembly can also be done on the ground.) In this step use the following parts: Position 3: 8 bolts M16x45 (0.63”x1.77”) Position 4: 8 nuts M16 (0.63”)
  • Page 12 Step 2 Step 2 Before attaching the wheel assembly 2, brush pin B and pin 6 with grease. Insert nylon bushings 4 in the seats as shown. Place the shim 3 over the pins of the wheel assemblies 2. Insert the preassembled wheel assemblies 2 into the seats in section 1. Attach the flange 5 to the pin on wheel assemblies 2 using the spring pin 6.
  • Page 13 Step 3 Step 3 Attach arm 2 to section 1 between lugs B and C, using plates 3 bolts 4 and nuts 5. In this step use the following parts: Position 4: 8 bolts M14x140 Position 5: 8 nuts M14...
  • Page 14 Step 4 Step 4 With the section resting on supports A and kept in balance with a belt attached to the forks of the forklift C, attach the swiveling arm 2 to arm B, first placing shims 3 between the two plates, then pin 4, washer 5, bolt 6, washer 7 and nut 8. Insert grease nipple 9 into the seat on arm 2.
  • Page 15 Step 5 Step 5 Keeping the machine in balance with a belt attached to arm 2 and to the forks of the forklift A, attach arm 1 to arm 2 with bolts 3 and nuts 4. In this step use the following parts: Position 3: 8 bolts M14x45 Position 4: 8 nuts M14...
  • Page 16 Step 6 Step 6 Before attaching the wheel assembly 2, brush pin B and pin 6 with grease. Keeping the machine in balance with a belt attached to the forks of the forklift A, insert nylon bushings 4 in the seats in arm 1. Place the spacer 3 over the pin of the wheel assembly 2. Insert the preassembled wheel assembly 2 into the seat in section 1.
  • Page 17 Step 7 Step 7 Fasten the swivel attachment section 1 to section 2 using bolts 3 and nuts 4. Insert the nylon bushings 5 in the seats as shown. Attach the grease nipple 6 to the seat in support 1. IMPORTANT Insert the bolts and nuts as shown in the drawing –...
  • Page 18 Step 8 Step 8 Attach rear arm 2 to section 1 within the spaces indicated with adhesive, using counterplates 3, bolts 4 and nuts 5. IMPORTANT In order to facilitate the assembly of the next components, do not fully tighten the bolts.
  • Page 19 Step 9 Step 9 Attach the rear swiveling arm 2 to arm 1, first inserting the shims 3 between the two plates on arm 1, then assemble the pin 4, washer 5, bolt 6, washer 7 and nut 8. Attach the grease nipple 9 to the seat in arm 2. In this step use the following parts: Position 3: 2 shims ø75-100x1 Position 4: 1 pin ø75x127...
  • Page 20 Step 10 Step 10 Before attaching the wheel assembly 2, brush pin A and pin 6 with grease. Insert nylon bushings 4 in the seats in arm 1. Place the shim 3 over the pin of the wheel assembly 2. Insert the preassembled wheel assembly 2 into the seat in arm 1.
  • Page 21 Step 11 Step 11 Insert the nylon bushings 3 in the seat in section 1. Insert the rake wheel arm 2 in the seat in section 1, insert the washer 4 and fasten with pin 5. Attach rake wheel 6 to arm 2 using bolts 7, washers 8 and nuts 9. Attach the grease nipple 10 to the rake wheel arm bushing.
  • Page 22 Step 12 Step 12 Connect the tie rod 1 to the fixed arms A and B using the bolts 2 and nuts 3. Connect cylinder 4 fastening the bottom at point C with pin 5, washer 6 and nut 7, the head at point D with pin 8, washer 6 and nut 7.
  • Page 23 Step 13 Step 13 Assemble tie rod 1, inserting part 8 into preassembled part 7 and fasten with pins 9 and 10, inserting one inside the other. Connect tie rod 1, first inserting the swivel eye over pin A and fastening it in place with washer 3 and nut 4, then rotate it and insert it between the two plates B, fastening it with pin 2, washer 3 and nut 4.
  • Page 24 Step 14 Step 14 Connect the swiveling section 2 (resting on supports A) to swivel attachment section 1 using pin 4, spacer 5, washer 6 and bolt 7. For TR/13 Attach additional section 3 to section 2 with bolts 8 and nuts 9. In this step use the following parts: Position 4: 1 pin ø50x245 Position 5: 1 spacer ø23-75x12...
  • Page 25 Step 15 Step 15 Before attaching the wheel assembly 2, brush pin B and pin 6 with grease. Insert nylon bushings 4 in the seats in section 1. Place the shim 3 over the pin of the wheel assembly 2. Insert the preassembled wheel assembly 2 into the seat in section 1.
  • Page 26 Step 16 Step 16 Attach the swiveling bracket 1 to arm A, first inserting the two shims 2 between the two plates, then assemble the pin 3, washer 4, bolt 5, washer 6 and nut 7. Make sure that bracket 1 swivels freely in arm A. In this step use the following parts: Position 2: 2 shims ø75-100x1 Position 3: 1 pin ø75x127...
  • Page 27 Step 17 Step 17 Connect the two bent brackets 2 at points B and C, insert bushings 3 and fasten with pin 8, washers 5 and nuts 6, without fully tightening. Connect tie rod 1 between the two bent brackets and fasten it with bolts 7, washers 9 and nuts 6.
  • Page 28 Step 18 Step 18 Insert bushings 2 in drawbar 1. Connect drawbar 1 to bracket A and fasten with pin 3, washer 4 and nut 5. Attach the package stand 6 at point C and fasten with pin 7 and R-clip 8. Attach the tractor hitch 9 at point B and fasten in the upper hole with bolt 10, washer 11 and nut 12, in the lower hole with bolt 13, flat washers 14, split washer 15 and nut 16.
  • Page 29 Step 19...
  • Page 30 Step 19...
  • Page 31 Step 19 Insert pipes 1-2-3-4-5-6 in the proper places of sections 7-8-9-10-11. The pipes can be inserted either from point A or from point B, following, however, the order shown above. At the same time the bushings with chain 12 must be put on the pipes (point X).
  • Page 32 Step 20 NINTH LINK CHAIN K TWENTY-FOURTH LINK CHAIN K (SIXTH FROM THE Step 20 Hook X on spring 1 is more closed than hook Y. Hook Y (the more open one) should be inserted into hole Z in the lever of arms 2. First of all pass chain K welded to bushing 3 through the spring 1.
  • Page 33 Step 21...
  • Page 34 Step 21 Connect the eye end of hose 2 to cylinder Y at point F using washers 5 and the screw-type coupling 4. Connect the eye end of hose 3 to cylinder Y at point G using washers 5 and the screw-type coupling 4.
  • Page 35 5) INSTRUCTIONS FOR WORK AND TRANSPORT IMPORTANT Start working from point 1. Turn at the end of the field towards left and join the two swaths (point 2).
  • Page 36 DANGER Be very careful when working on slopes (Fig. 1) The machine tends to rotate, pivoting at the tractor hitch (Fig. 2)

  • Page 37: General Maintenance Instructions

    6) GENERAL MAINTENANCE INSTRUCTIONS...
  • Page 38 MAINTENANCE POINTS EVERY X POS. Qty. DESCRIPTION OPERATION HOURS WHEEL SUPPORT LUBRICATE 50(A) FRONT DRAWBAR SUPP. LUBRICATE 50(A) WHEEL AXLE, SIDE REAR LUBRICATE 50(A) WHEEL AXLE, SIDE REAR LUBRICATE 50(A) FRONT AXLE DRAWBAR ATTACH. LUBRICATE 50(A) SECTION JOINT LUBRICATE 11-13 RAKE WHEEL ARM JOINT LUBRICATE 11-13 RAKE WHEEL HUB LUBRICATE...
  • Page 40 Zona Industriale-Viale Grecia, 8 06018 TRESTINA-(Perugia)-ITALY Tel. +39.075.8540021-Telefax +39.075.8540523 e-mail: sitrex@sitrex.it www.sitrex.com...

This manual is also suitable for:

Tr/13
