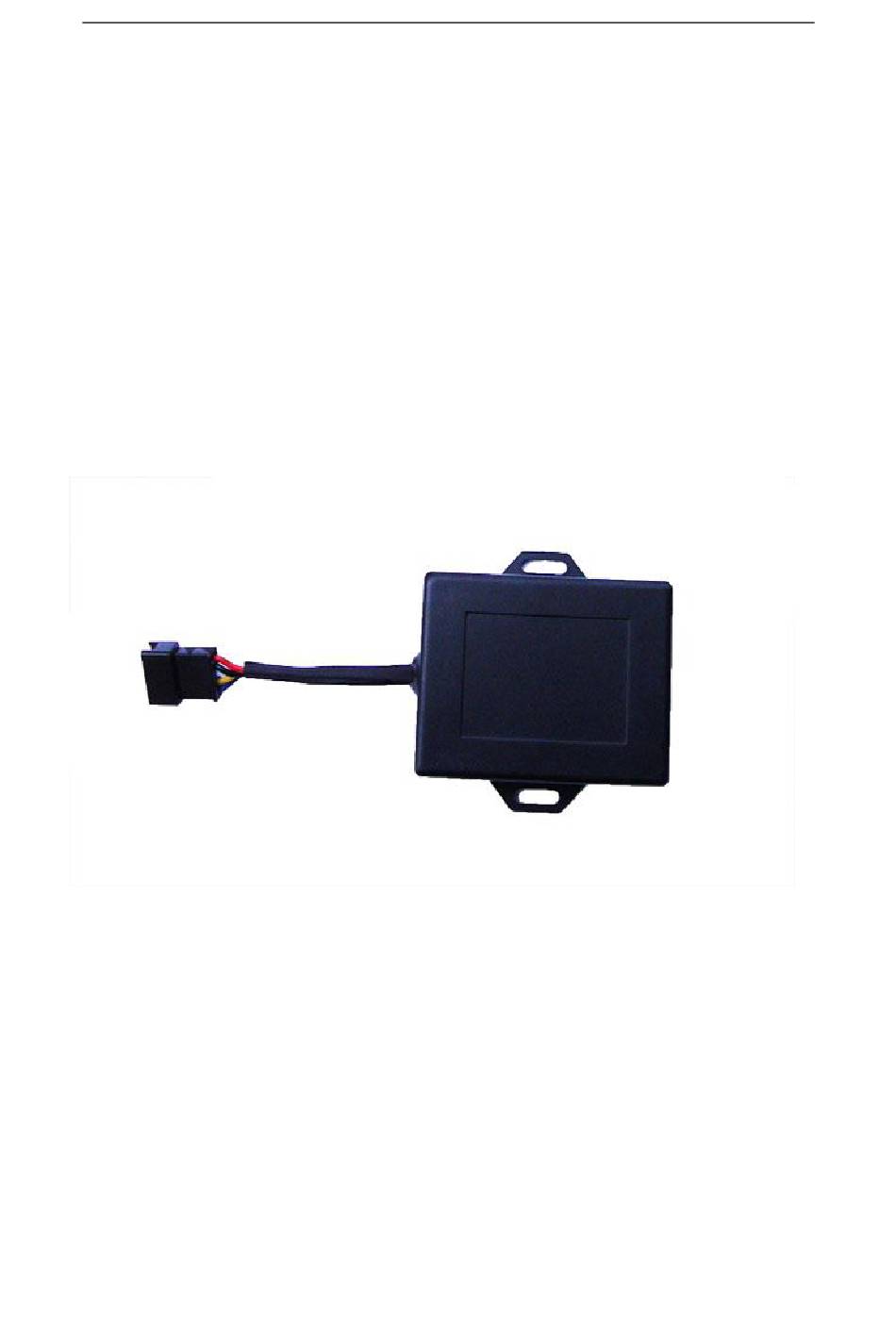

- Page 1 User Manual of MT08 GPS Vehicle Tracker User Manual (Model: MT08) Please Read Carefully Before Operation - 1 -...
- Page 2 User Manual of MT08 - 2 -...
-
Page 3: Table Of Contents
5.1 Install SIM Card--------------------------------------------------------------------------------------5 5.2 Charging-----------------------------------------------------------------------------------------------6 5.3 LED indications---------------------------------------------------------------------------------------6 6. Connect the tracker MT08 to GPRS01 Web Server Platform----------------------------------------6 Optional 1: Configure by Computer to set GPS tracker online--------------------------------------6 Optional 2: SMS Commands to set GPS tracker online---------------------------------------------11 Settings on Topshine GPRS01 Platform---------------------------------------------------------------12 ①... -
Page 4: Product Overview
User Manual of MT08 1. Product Overview MT08 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles. -
Page 5: Specifications
User Manual of MT08 4. Specifications Items Specifications Dimension 60*50*22mm Weight Input voltage DC 9V~24V/1.5A Back-up Battery 350mAh/3.7V Power Consumption 65mA standby current Operating Temperature -20°C~75°C Humidity 5%~95% Work Time 18 hours in power-saving mode and 4 hours in normal mode... -
Page 6: Charging
Device is connected to the GSM network Flashing (1 second on and 2 seconds off) Device is not connected to the GSM network 6. Connect the tracker MT08 to GPRS01 Web Server Platform Two Methods to set GPS tracker online: Configure by Computer or SMS Commands Optional 1: Configure by Computer to set GPS tracker online This part shows the basics of how to use the GPS tracker Parameter Editor. - Page 7 The USB port is virtual comm. Port (com3) in this example, 3. Open the GPS Tracker Parameter Editor ① Connect MT08 with PC by the configuration cable ② Confirm MT08is in the Power Off states ③ Double click GPS Tracker Parameter Editor.exe and Select the COM Port, following picture...
- Page 8 4. Click Start button to open the COM port, 5. Turn on MT08 and it will connect with the Editor automatic, As soon as they connect successful, all the buttons are availability and the status bar will clue on’ Tracker Connect!’ , first click “Read”...
- Page 9 Item Description GPRS Tick to enable GPRS function, select TCP or UDP mode Tracker ID MT08 is default using its own ID number, cannot be changed APN, Account, Put your local APN, APN username and password if necessary APN Password...
- Page 10 To set Mobile phone No. for SMS or Calling when Button Button C/IN3 C/Input 3 is triggered (alarm), it will call/SMS to this phone After write finished, click “Write” button to configure the MT08’s Parameters. It will pop-up a mini window, as below pictures: - 10 -...
-
Page 11: Optional 2: Sms Commands To Set Gps Tracker Online
Command: W000000,010,ID Description: every tracker has a unique ID. Tracker ID must be less than 14 digitals. But model MT08 is default using its own ID number, cannot be changed. ② Set APN by SMS Command: W000000,011,APN,APN name, APN password Description: APN name, APN username, APN password If no password required, just put in APN name only. -
Page 12: Settings On Topshine Gprs01 Platform
User Manual of MT08 Next Step: Settings on Topshine GPRS01 Platform Turn on the tracker MT08, when it normal working (find the GSM & GPS signal), ① Login Topshine GPRS01 Platform Website: www.global-track.net User Name: *** Password: *** Note: Red box means the vehicle Online;... - Page 13 User Manual of MT08 Picture 2 Click the company name, e.g. in picture below: Click , then you can see picture below: - 13 -...
-
Page 14: ④ Set Up Information For A New Vehicle
User Manual of MT08 Input ‘demo123’ in the blank of Group Name ，then group ‘demo123’ is ready as below: Click ④ Set up information for a new vehicle e.g. ‘Benz123’ Click the group name , and click , then you can see... - Page 15 User Manual of MT08 2012060200010 Input the correct Kind, GPRS ID and Plate No. and Customize Mark etc. necessary information, click , then you can see group ‘demo123’ and vehicle ‘Benz123’ with tracker ID 20120602000010 have been set ready as below.
-
Page 16: Installation
User Manual of MT08 6. Installation Please select experienced technicians to install this system. The installation should be carried in the working condition for this system. Install this system in a secret place. Prevent this system from dust and humidity. -
Page 17: Digital Input
User Manual of MT08 6.1 5-p wires I/O instruction PIN Number Color Description Input 1/Input 2 White wire Digital Input 1 (negative triggering), E.g. connect SOS panic button or door detection Input 4/AD Blue wire Digital Input 4 (positive triggering), e.g. detecting the ACC or... - Page 18 User Manual of MT08 6.3 Recommended install place For automobile: - 18 -...
- Page 19 User Manual of MT08 For Motorcycle: - 19 -...
-
Page 20: How To Operate
User Manual of MT08 8. How to operate it: Note: ①The default password is 000000, you should change the password when use the device. Change user’s password: W000000,001,****** (000000 is old password; ******is new password) ② Command Letter must be capital letters. -
Page 21: Authorize The Alarm-Received Mobile
User Manual of MT08 This command is used to disarm the system & stop sending alert SMS. 8.3 Check the location by Google map’s URL SMS command: 000000MAP Upon receiving the SMS command, the tracker will automatically send back the SMS including the Google map’s URL, user an use smart phone (GPRS data service is enabled) to open... -
Page 22: Check The Gps Coordinates By Sms
8.9 Restore the stopped car to normal status SMS command: 000000RES This instruction is used to restore the car to normal status after stopping the car. Note: More SMS Commands, please check Appendix 2: Command List 9. MT08 Packing and Accessories Accessories IMAGE FUNCTION... -
Page 23: Troubleshooting
Unit is sleeping Cancel sleeping mode Wrong password in your SMS Insert the correct password The SIM in MT08 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages. -
Page 24: Appendix 1 Configure By Computer
User Manual of MT08 MT08 is in an inner place Wait for the target to come out Appendix 1 Configure by computer Item Description SMS tracking No. Interval To put a mobile phone number for automatic tracking by SMS at certain time interval in minutes... -
Page 25: Appendix 2: Command List
Cut off Power Tick it to send alert when the external power be cut off Appendix 2: Command List Description Command Remarks Get current location W******,000 Get current location of MT08 location W******,100 http://maps.google.com/map Google s?f=q&hl=en&q=22.542563 format via SMS ,114.077971&ie=UTF8&z= 16&iwloc=addr&om=1... - Page 26 =08, 2000m Extend Settings W******,008,ABCDEF A=0, disable position report function GHIJ### when a call is made to MT08 A=1, enable position report function to get position SMS by Calling MT08 I=0, disable power failure alert I=1, enable power failure alert...
- Page 27 GSM enters function. It is in standby mode stop unit of minute. sending out message until it is Example: activated by an SMS or an If XX=10, MT08 will enter incoming call) power saving mode in 10 minutes - 27 -...
- Page 28 User Manual of MT08 after it is immobile. Set phone number for W******,030,T T is the telephone number for wiretapping wiretapping and max. 16 digits Set time zone difference W******,032,T T=0, to disable this function T=[1, 65535] to set time difference in minutes to GMT.
-
Page 29: Appendix 3: Fuel Sensor Installation And Function
User Manual of MT08 Initialization W******,990,099### ### is the ending character. To turn all the parameters / settings (except password) to factory default. Password Initialization W888888,999,666 This command will reset the current password to factory default password 000000 Appendix 3: Fuel Sensor Installation and Function 1. - Page 30 User Manual of MT08 1.3 Flange installation 1.3.1 Put the gasket under the flange and holing, then tighten with screws. 1.3.2 Put sealing ring 1.3.3 The sensor has two circle sealing rings, first fit the bigger ring and then the small one, fix them on the top of the sensor, see the flow chart.
- Page 31 User Manual of MT08 2.2 Register on platform 2.2.1 Don’t write anything in “Init Fuel”, like follow picture 1: Picture 1 2.2.2. Like picture 2 (1) Fill it up with fuel/oil in fuel tank. Let the tracker working. Then track the fuel(L) on platform: For example: the fuel(L) display: 603, this is Max Fuel, please write into “Max Fuel”.
- Page 32 User Manual of MT08 3. Write the vehicle’s fuel tank capacity into “Quart” 4. Click “Save”. Finish. 2.3 Select your device, such as instructed 1; it will display your car’s the current oil/Fuel (L) (instructed2). 2.4 If you want to see the history record chart. Please click “Report Centre”(instructed 3), then the Report interface will pop up;...
- Page 33 User Manual of MT08 2.5 In Report options, there is a Fuel Report (Line), click it (instructed 4), then it will display instructed 5, 6; you need choose “vehicle, Time or data etc.”, and click search (instructed 6), later it will display “Fuel Line” chart.
