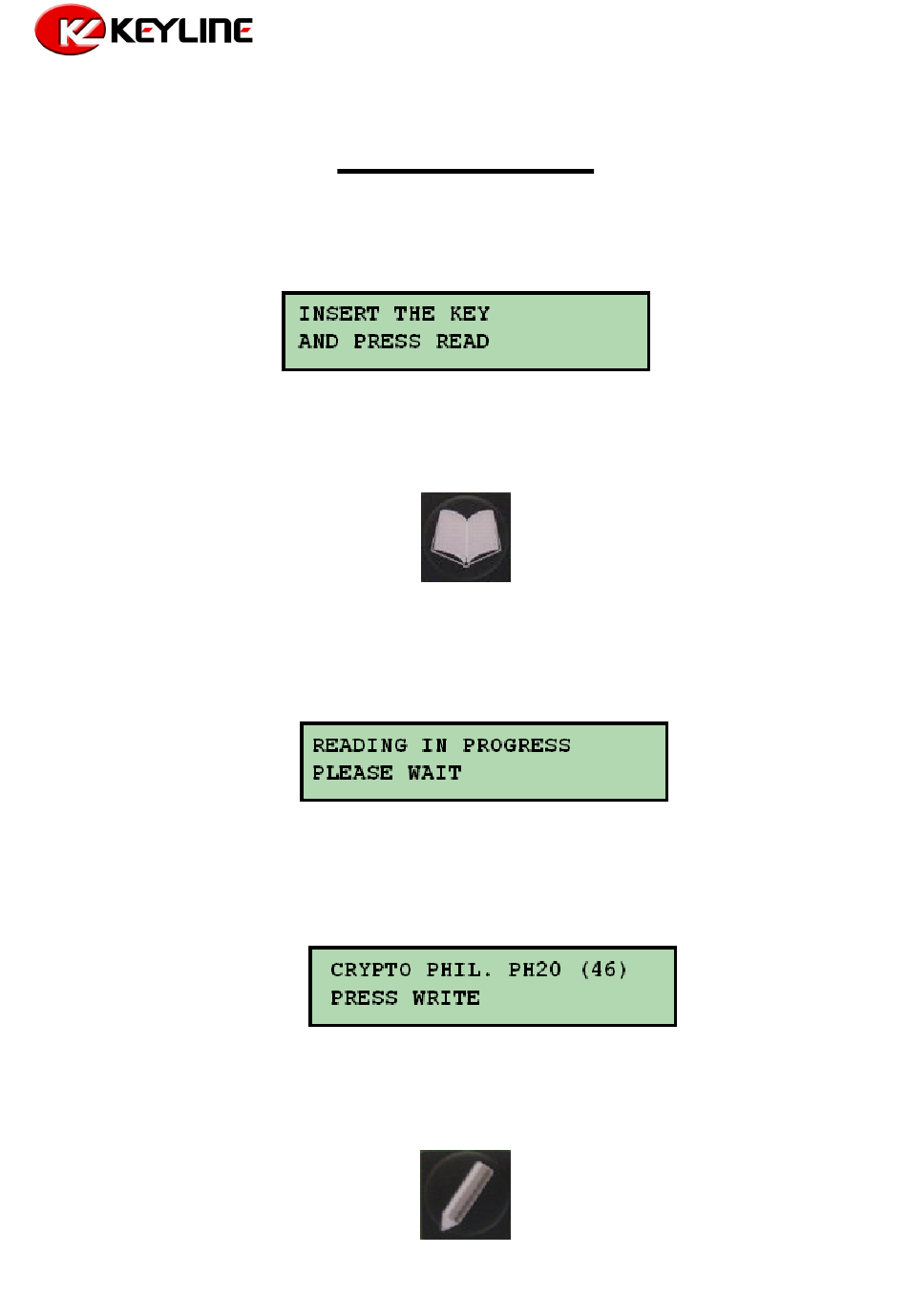

The main page appears on the screen a few seconds after starting the cloning tool. It shows the
following message:
1. Insert the original transponder key to be cloned into the 884 "READ-WRITE insertion slot" and press
the "READ" button:
2. The following message will appear on the display for a few seconds:
3. If the transponder/remote control identification is displayed on screen as PHILIPS® CRYPTO PH20, it is
possible to proceed with the following step:
4. Leave the original key in the 884 "READ-WRITE insertion slot" and press the "WRITE" button.
page 1
RK60 GUIDE
Copyright by KeyLine - Italy – 11 / 2010
E
NGLISH
KEYLINE S.p.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keyline RK60
Summary of Contents for Keyline RK60
- Page 1 3. If the transponder/remote control identification is displayed on screen as PHILIPS® CRYPTO PH20, it is possible to proceed with the following step: 4. Leave the original key in the 884 “READ-WRITE insertion slot” and press the “WRITE” button. page 1 Copyright by KeyLine - Italy – 11 / 2010 KEYLINE S.p.A.
- Page 2 8. Duplicate the metal section of the original key using the KEYLINE equivalent horse-shoe key. 9. Use the RK60 key to turn the car’s ignition to the ON position three times (see note). WARNING For Renault cars, during the “9” phase, between one ignition of the electric panel and another using the TK60 key, use the original key to turn the ignition in the ON position.
- Page 3 11. The following message will appear: 12. Press the “WRITE” button. 13 . You will be asked to proceed with the programming of the KeyLine key with RK60. to proceed, press “WRITE” again: 14. Now extract the KeyLine duplicated key, insert the original key as requested and press “WRITE”:...
- Page 4 20. Press trunk button on the remote control of the original key. If the remote does not have this button, press open button or close button until this screen appears: page 4 Copyright by KeyLine - Italy – 11 / 2010 KEYLINE S.p.A.
- Page 5 NGLISH 21. When the calculation is completed, the following message will appear 22. Now pull out the original key, insert the RK60 KeyLine key (used in the previous steps) and press “WRITE”. Wait until the following message appears: 23. Now you go near the car and press open button two times, open the car manually or with the original remote 24.
