Making Air Connection and Mounting Nozzle(s)

To install the mounting bracket, place bracket over the air inlet on the back of the
nozzle. Install desired air fitting through hole in bracket and thread firmly into the
back of the nozzle. If using the right angle fitting, install the provided spacer over
the threads of the fitting and thread firmly into place. It may be necessary to use a
wrapping of PTFE sealing tape on the air fitting to ensure no air leakage. Once the
bracket has been secured to the back of the nozzle in its desired position, mount the
nozzle into place. The slots in the bracket will accommodate #10 or M5 hardware.
Once in place, run the air line to the back of the nozzle and press into the fitting.
Supplied fittings will accommodate 1/4" OD tubing.

5. OPERATION

CAUTION – Electrical Shock Hazard
Do not touch nozzle during operation.
1. Before energizing any power supply:
• Ensure that all power supplies are properly grounded.
• Ensure that all nozzles have been properly located, positioned and installed.
• Ensure all requirements printed in the applicable power supply instructions
have been fully complied with.
2. After the above checks have been performed, simply energize each power supply
to operate the nozzles.
3. To ensure proper system monitoring, run the calibration cycle on the power
supply. Repeat any time nozzles are added or removed from the system.
4. Always turn the power supply OFF when the system is not in use. For safety
and ease of operation, it is recommended to connect the power supply line cord
to the electrical system of the machine in such a manner that the power supply
is only energized when the machine is in operation.
IQ Power Nozzle

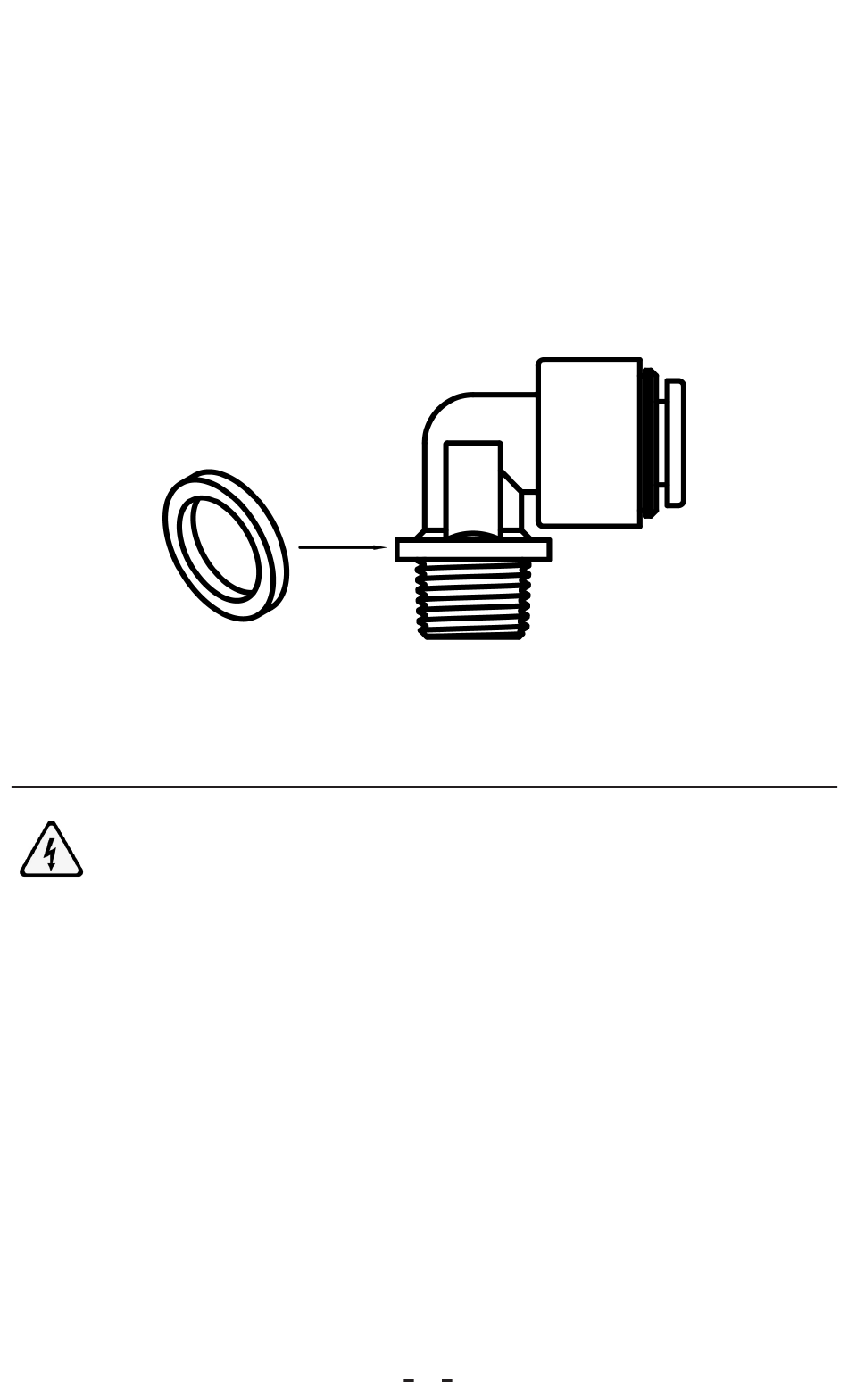

Figure 3. Spacer Installed on Right Angle Fitting
