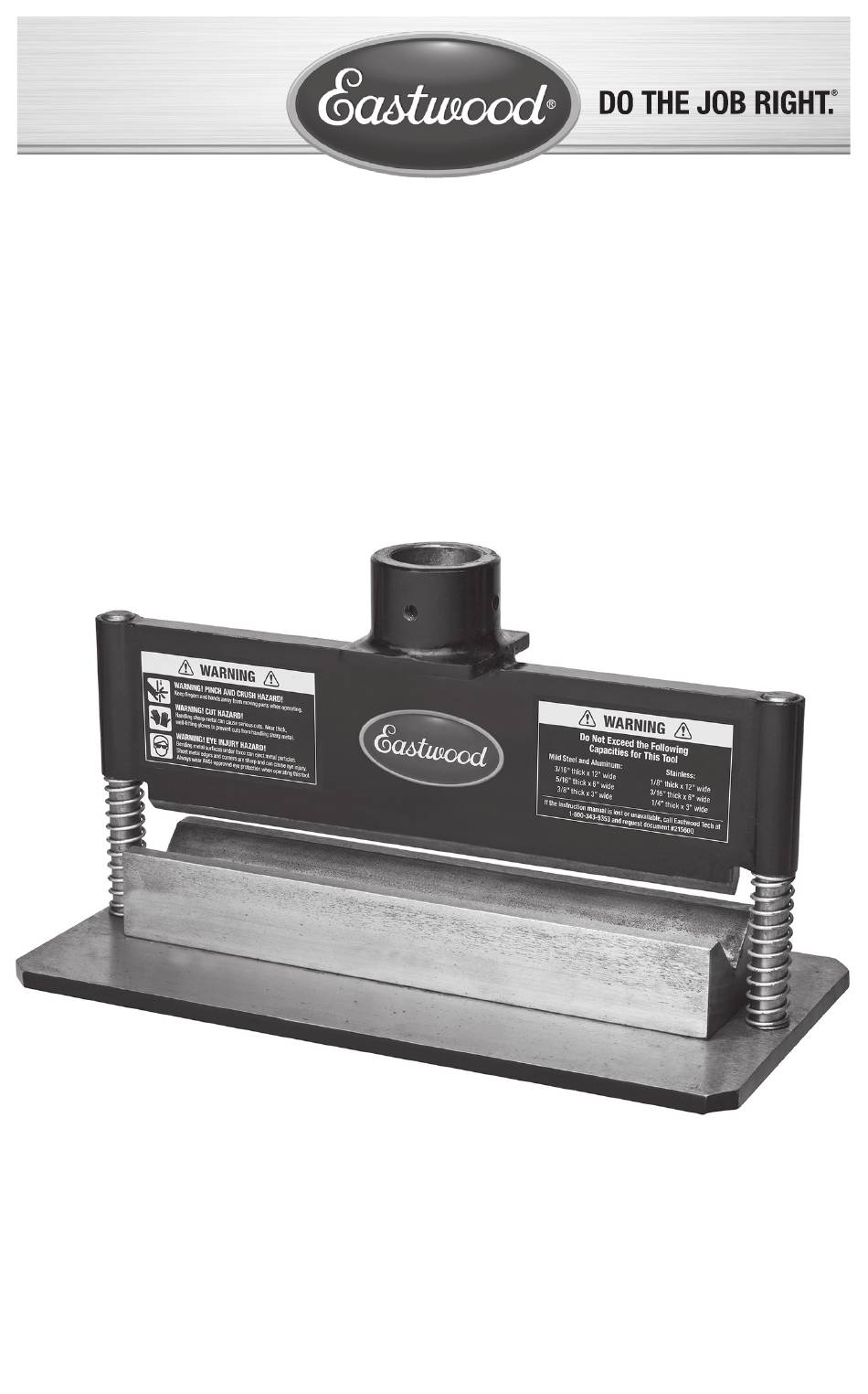

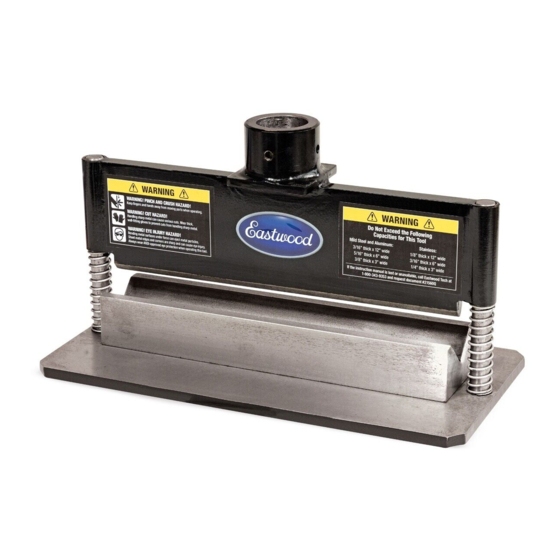

- Page 1 Item #21560 PRESS BRAKE ATTACHMENT INSTRUCTIONS...
- Page 2 The EASTWOOD PRESS BRAKE ATTACHMENT is a precision engineered metal working tool designed to produce accurate, variable length bends in angles up to 90°, in mild steel and aluminum, in widths up to 12” [305mm] and thicknesses up to 3/8” [10mm]. Create complex shapes, such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors, truck bedside panels, inner fender structures, suspension brackets, engine/transmission mounts and much more.
- Page 3 • Save for future reference. PINCH AND CRUSH HAZARD! • The Eastwood Press Brake Attachment consists of moving components that quickly generate extreme crushing force which can present a hand/fin- ger pinch hazard and cause potentially serious injuries. Avoid pinching hands while handling.
- Page 4 Clean or repair as necessary or discard and begin with a new piece. Also inspect Press Brake components and host hydraulic press for looseness or damage. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 5 • Slowly draw down the ram of the hydraulic press so that it nests within the cup on the top of the Upper Die [E]. Secure to ram by tightening the four Set Screws with a 6mm hex key. To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 6 Dirt and metal chips can cause uneven clamping and inaccurate bends. • Store in a clean & dry environment when not in use. Coat all machined surfaces with a light lubricant film of oil or suitable protectant to prevent rust formation. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 7 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Mini Metal Saw If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
