Summary of Contents for Eastwood 21749

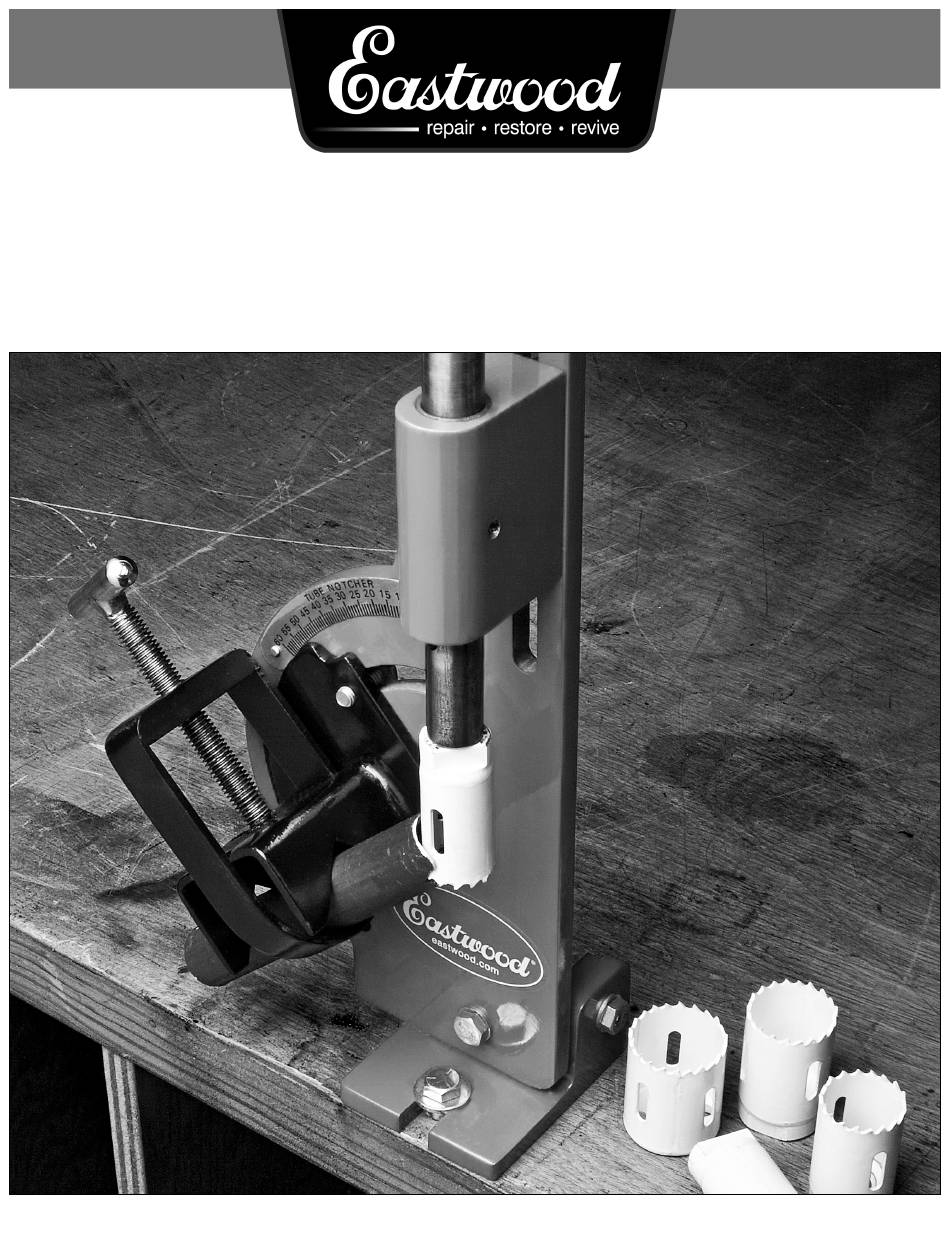

- Page 1 Eastwood Economy Tubing Notcher Instructions Part #21749 Carefully read this operation manual prior to using your tubing notcher. Please keep this manual for your future reference!
- Page 2 Retaining Retaining 2. The Eastwood Tubing Notcher is supplied with the Arbor Shaft installed in a reversed position for shipping purposes. It will need to be removed and re-installed in the correct position (Fig. A). Pull out the retaining pin, slide the Arbor...
- Page 3 FIG. D FIG. D FOR BENCHTOP AND HAND DRILL USE 1. If using a hand drill, be sure the base of the Eastwood Lock bolts Lock bolts Tubing Notcher is securely mounted to a stable work surface or clamped tightly in a solidly mounted vice of substantial size.
- Page 4 SUGGESTED PRODUCTS • 28003 Hole Saw Kit. • Eastwood also offers a complete line of welders and welding equipment and accessories. If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 1-866-759-2131 email: techelp@eastwood.com...
