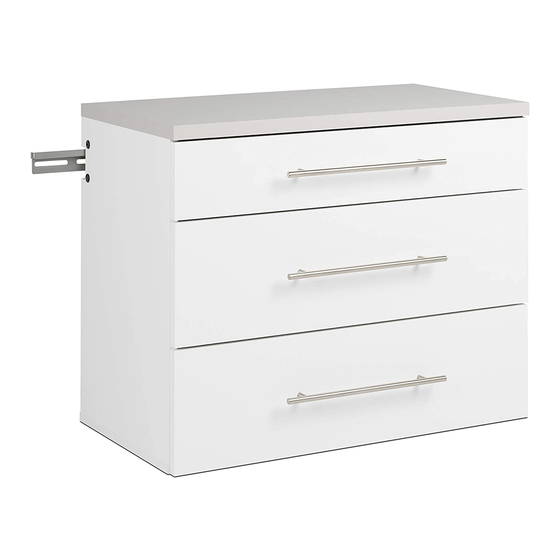

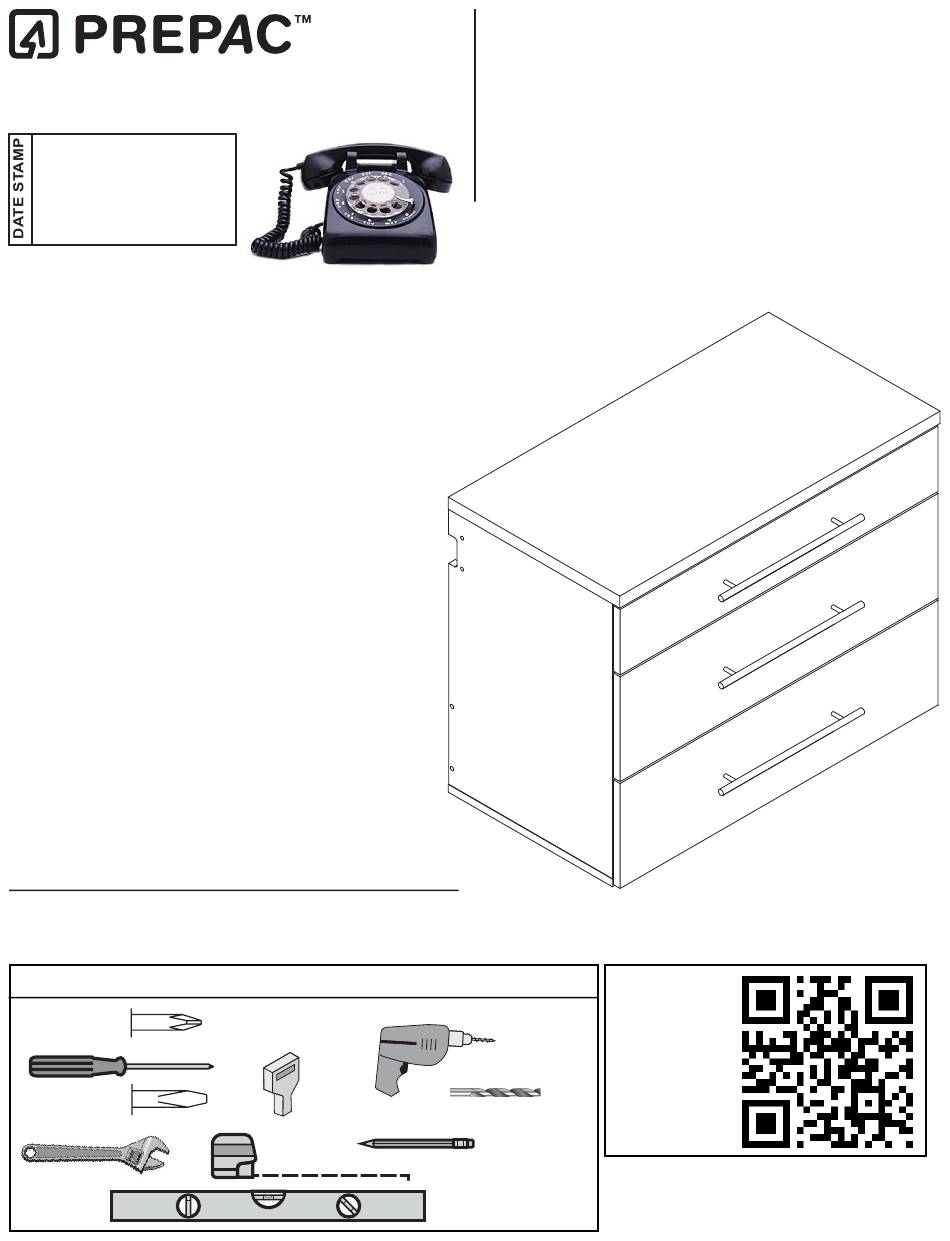

Assembly Instructions
CONTACT US FIRST
parts@prepacmfg.com
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
•
For help with assembly
•
If you have received a damaged or defective
part or are missing hardware.
We will process replacement parts in 2 business
days or less. Parts are shipped via UPS Ground or
mail.
Before you call please:
1)
Record the following information from the
shipping label on the outside of the box.
You will need it for warranty purposes:
Ship To Name
Sales Order Number
2)
Note the product model number.
3)
Review the contents of your shipment to
determine what you are missing.
Online Option
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com
Required Tools
3/16th inch drill bit
stud
finder
Scan the
QR code
to view an
installation
video for
this product
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0741
2014-05-21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Prepac HangUps WRGW-0701-2M
Summary of Contents for Prepac HangUps WRGW-0701-2M
- Page 1 Fill out the Replacement Parts Order form in the Product Support section of our website: www.prepacmfg.com Required Tools Scan the QR code to view an installation 3/16th inch drill bit stud video for finder this product Prepac Manufacturing Ltd. 6705 Dennett Place LB-0741 Delta, BC V4G 1N4 2014-05-21...
- Page 2 Cabinet Parts Top (1) Gable (1) Left Side (1) Right Side (1) Dessus Pignon Côté gauche Côté droit TP-10055-G gray / gris GA-10057 SL-10057-G gray / gris SR-10057-G gray / gris unfinished / non-fini Upper Stabilizer (1) Lower Stabilizer (1) Bottom (1) Renforcement Renforcement grand...
- Page 3 Drawer Parts RM-0921 Small Metal Drawer Sides Petit tiroir métallique côté Small Cabinet Slides Petite abinet glisse RM-0921 RM-0921 Small Metal Drawer Box (1) Métal petite boîte de tiroir (1) Includes: Comprend : Small Drawer Small Drawer Small Drawer Left (D4) & Right (D5) Small Metal Gauche (D4) &...
- Page 4 AVANT DE COMMENCER BEFORE YOU BEGIN Identifier toutes les pièces et le matériel afin de Identify ALL parts and hardware to s’assurer que tout est inclus. ensure everything is included. Hardware Metal Rail (1) Rail métallique RM-0904 Allen Key (1) Clef “Allen”...
- Page 5 Insert cams into the top of the Left (C3) Attach Rail Hooks to the Left (C3) and Right (C4) and (C4) Right Sides Sides as shown. Use wrench to tighten nuts. Insérez des cames dans les côtés Fixez les crochets de suspension aux côtés gauche �C3��...
- Page 6 Insert cams into the Upper Stabilizer (C5) Insérez des cames dans la renforcement supérieure �C5��. Insert cams with the opening facing toward the hole for the twister dowel. Insérez les cames dans l’ouverture fai- sant face au trou du goujon à visser. Attach Gable (C2) to Upper Stabilizer (C5) with Confirmat Screws Fixez le pignon �C2��...
- Page 7 Attach drawer slides to Left (C3) and Right (C4) Sides with Euro Screws Euro Screw Attachez les cabinet glisse aux côtés Vis “Euro” gauche �C3�� & droit �C��� avec les Vis Euro Small Cabinet Slides at the top Petit cabinet glisse en haut Green Twister Dowel Goujons verts...
- Page 8 Attach Upper Stabilizer (C5) to Left (C3) and Right Attach Lower Stabilizer (C6) to Left (C3) and Right (C4) Sides and tighten cams (C4) Sides with Confirmat Screws Fixez le renforcement supérieure �C5�� aux côtés Fixez le renforcement inférieure �C7�� aux côtés gauche �C3��...
- Page 9 Insert green twister dowels into Top (C1) Insérez les goujons verts à visser dans le dessus �C1�� Green Twister Dowel Goujons verts à visser Tightening Cams Pour serrer les cames Attach the Top (C1) and tighten cams. Attachez le dessus �C1�� et serrez les cames. Unlocked Locked Déverrouillées...
- Page 10 The following steps apply to both large and small drawers Les étapes suivantes s’appliquent à la fois aux grands et petits tiroirs Wood Dowel Insert wood dowels into small (D3) and Goujons de bois large (D8) drawer fronts Insérez les goujons de bois en avant de tiroir petit (D3) et grand (D8) Attach the bracket to the drawer front AS SHOWN BELOW...
- Page 11 Slide the small (D2) and large (D7) drawer bottoms toward the bottom of the drawer sides until they connect with the metal frame. The two metal tabs on each drawer side go into the holes on the drawer bottom. The wood dowels will remain uncovered Faites glisser la petite �D2��...
- Page 12 Attach handels with screws provided Fixez les poignées avec vis fournies Inserting Drawers Insertion de tiroirs We recommend inserting drawers AFTER you complete the wall mounting steps in the next section. Nous recommandons d’insérer les tiroirs APRèS que vous avez terminé le montage mural étapes dans la section suivante.
- Page 13 L’AIDE EN LIGNE To see a how-to installation video, click on Pour visionner le vidéo décrivant l’installation “How to Install Prepac’s Garage Storage rangement de garage de suspension, consultez Collection” on the Assembly page in the la page de Soutien Produits sur notre site web : Support section of our website: www.prepacmfg.com/content/assembly...
- Page 14 Hanging Multiple Cabinets Pour suspendre plusieurs armoires We will illustrate how hang multiple cabinets using the Nous allons illustrer comment accrocher plusieurs armoires à sample configuration below. partir de l’exemple de configuration ci-dessous. 1. On your wall, mark where the cabinets will be 1.
- Page 15 The illustration below shows where the Metal Rails & L’illustration ci-dessous montre où les rails métalliques & Connecting Braces should be attached to the wood la connexion les accolades ne doivent être connectés au studs for this configuration bois goujons pour cette configuration NOTE: Rails and Braces are shown ABOVE cabinets REMARQUE : Les rails et les accolades sont indiqués for clarity...
- Page 16 Installing Hang Ups Garage Cabinets Installation “Hang ups” Garage armoires For Base Cabinets, measure 31½ inches from the floor and make multiple marks along the wall Pour armoires de base, mesurer 31½ pouces du sol et faire plusieurs repères le long du mur 31½...
- Page 17 Find the center of the wall studs and mark the location of each stud along the line. Studs are typically 16 inches apart center to center. Trouver le centre du mur et marquer l’emplacement de chaque goujon le long de la ligne. Les goujons sont généralement de 16 centimètres l’un de l’autre centre à...
- Page 18 Hang the First Rail Attach the Connecting Brace Accrocher la première position de Rail Fixez le renfort reliant Position the Metal Rail over the pre-drilled holes and Position the Connecting Brace so that it overlaps the insert wood screws into the first & second holes. last hole on the First Metal Rail.
- Page 19 Hanging the Second Rail Accrocher le deuxième position de Rail Slide the second Metal Rail BEHIND the Faites glisser le Rail métallique deuxième derrière le Connecting Brace connectant le renfort Secure the Connecting Brace to the Sécuriser la connexion renfort pour le deuxième rail Second Rail Page 1 of 20...
- Page 20 Carefully hang the cabinet onto the Metal Rail until it locks into place. Laisser pendre soigneusement le cabinet sur la rail métallique jusqu’à ce qu’elle se verrouille en place. Make sure the Rail Hook slides fully into the notch on the Metail Rail Track. Assurez-vous que le crochet de Rail de diapositives pleinement dans l’encoche du Metail voies de chemin de fer.
