12-drawer tall queen platform storage bed

Advertisement

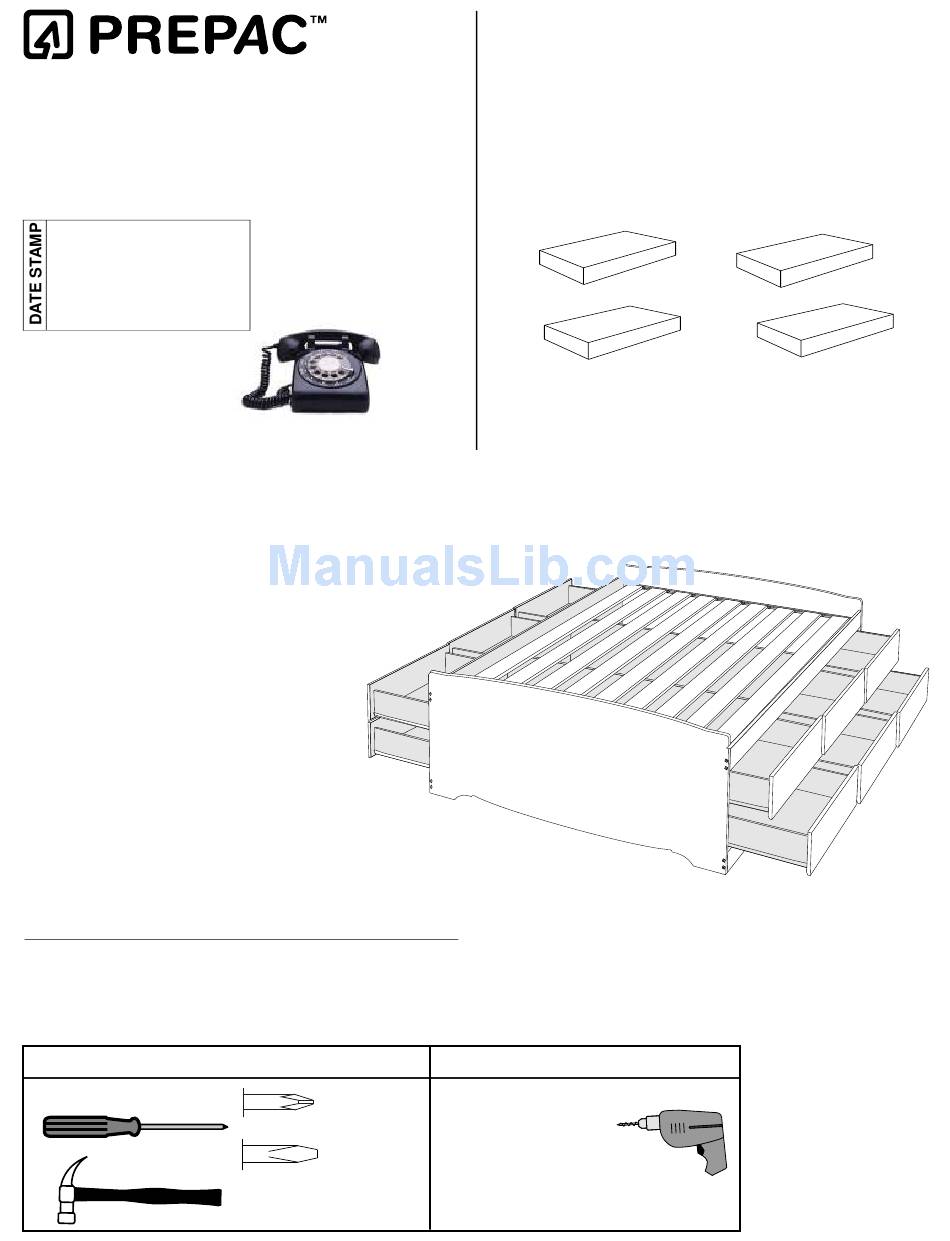

Assembly Instructions
CALL US FIRST
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
For help with assembly
If you have received a damaged or
defective part or are missing hardware.
We will process replacement parts
business days or less. Parts are shipped via
UPS Ground or mail.
Before you call please:
1) Record the following information from the
shipping label on the outside of the box.
You will need it for warranty purposes:
• Ship To Name
• Sales Order Number
2) Note the
product model number.
3) Review the contents of your shipment to
determine what you are missing. This unit
is shipped in 4 cartons. Make sure you
have received all cartons.
Online Option:
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com

Required Tools

Screwdrivers
in 2
Phillips Head
Flat Head
Hammer
12-drawer Tall Queen
Platform Storage Bed
Model # BQ-6212
This product is shipped in
1 of 4
+
3 of 4
Make sure you have all cartons.
Sometimes cartons shipped on the same
day get separated and are delivered on
Optional Tools
Using a power screwdriver
will speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by hand.
4 cartons
2 of 4
+
4 of 4
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0638
2012-06-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BQ-6212 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prepac BQ-6212

  • Page 1 12-drawer Tall Queen Platform Storage Bed Assembly Instructions Model # BQ-6212 This product is shipped in 4 cartons 1 of 4 2 of 4 4 of 4 3 of 4 CALL US FIRST 1-877-PREPAC1 Make sure you have all cartons.
  • Page 2 Hardware Identification Bed Hardware Drawer Slide Screw (162) RM-0074 JRN Nut JCB Connector (24) T Spacer Package will contain (24) RM-0310 bronze (cherry / espresso) (48) more than required RM-0312 RM-0314 black RM-0628 Machine Screw Allen Key Black #8 - 9/16" Drawer Bottom Wing Nut (4) Washerhead Screws (4)
  • Page 3 Bed Parts Inner Gables (2) Upper Stabilizer (2) Lower Stabilizer (2) Plywood Slats (9) Metal U-channel with Outer Gables (2) GA-4131 black ST-4120 black ST-4121 black BF-2000-PW Blocks (2) GA-4130 black ST-4920 cherry GA-4931 cherry ST-4921 cherry BF-3000-C GA-4930 cherry ST-4620 espresso ST-4621 espresso GA-4631 espresso...
  • Page 4 STEP 1 Estimated Time: 10 minutes Attach metal U-channels to each outer gable using drawer slide screws Note: In the center of the U-channels there are two pairs of holes. Each pair has a small and large hole. Make sure the LARGE HOLE is positioned to the top of the outer gable.
  • Page 5 STEP 3 Estimated Time: 10 minutes Attach drawer glides to T-spacers on outer gables as shown in the photo Position the Drawer Glides with: A) The wheel at the finished side B) The wheel on the unfinished bottom Finished Side Bottom Use 14th hole Use 1st hole...
  • Page 6 STEP 4 Estimated Time: 5 minutes Insert JRN nuts into the holes on each end of the inner gables. The holes are drilled through. You can insert them from either side. Insert the nut as shown, so that the hole lines up with the hole on the edge of the gable.
  • Page 7 STEP 5 Estimated Time: 5 minutes Identifying the upper and lower stabilizers Insert JRN nuts into the holes on each end of the upper (B3) and lower (B4) stabilizers. Upper Stabilizers Top edge (FINISHED) is rounded Upper Stabilizers Side hole is close to the UNFINISHED edge...
  • Page 8 STEP 6 Estimated Time: 10 minutes Attach “T” spacers and drawer glides to Inner Gables Attach “T” spacers to ONE side of each Drawer Slide inner gable with drawer slide screws Screw Attach drawer glides to “T” spacers on inner gables. 4”...
  • Page 9 STEP 7 Estimated Time: 5 minutes Using JCB connectors, and the Allen Key provided, attach each lower stabilizer (B4), one at a time, to both inner gables BELOW the drawer slide Finished edge IMPORTANT Identifying the Lower Stabilizer The screw hole is at the top, close to the finished edge Connector If you have any difficulty tightening the JCB connector, use a screwdriver to adjust the JRN nut to make sure...
  • Page 10 STEP 8 Estimated Time: 5 minutes Using JCB connectors, attach each upper stabilizer (B3), one at a time, to both inner gables. Top edge (FINISHED) is rounded Upper Stabilizer The screw hole is closest to the lower, unfinished edge Page 10 of 20...
  • Page 11 STEP 9 Estimated Time: 10 minutes Attach one outer gable (B1) to stabilizers with JCB connectors Page 11 of 20...
  • Page 12 STEP 10 Estimated Time: 5 minutes Lay the four metal braces, as shown, with the bend resting on top of the inner gables Find the pre-drilled holes on the inner gables and secure the bent end of each metal brace to the inner gables with the small black screw (#8 - 9/16”...
  • Page 13 STEP 11 Estimated Time: 5 minutes Spread the wooden slats out across the inner stabilizers Slide the slats into the wide spaces of the metal U-channel (B6) on one outer gable. Remember that one set of metal braces are still loose on one end. Slide Page 13 of 20...
  • Page 14 STEP 12 Estimated Time: 10 minutes This Step easiest with 2 People Carefully attach second outer gable to stabilizers Secure the gable in place with with JCB connectors, but don’t fully tighten Ensure the slats are set inside the u-channel and that they haven’t pulled out of the first outer gable. Firmly tighten the connectors STEP 13 Estimated Time: 10 minutes...
  • Page 15 Drawer Parts Identification Drawer Front (12) DF-10012-B black DF-10012-C cherry DF-10012-E espresso Left Drawer Side (12) DS-0415W-L Plywood Drawer Back (12) Right Drawer Side (12) Drawer Bottom (12) DK-4100W DS-0415W-R DB-4100 unfinished Plywood Unfinished STEP 14 Estimated Time: 5 minutes PER DRAWER Insert cams into drawer sides Right Drawer Side Left Drawer Side...
  • Page 16 Screw black twister dowels into drawer fronts To see a video showing how the cam and connectors work, please visit our website: ONLINE www.prepacmfg.com/support/assemblyvideos.html HELP Attach drawer sides to drawer back with 1½” Hi Lo screws 1½” Hi Lo Screws Page 16 of 20...
  • Page 17 Attach drawer front and tighten cams using a flat head screwdriver Left Drawer Side Right Drawer Side Locked Unlocked Locked Turn 210° Unlocked Turn 210° Turn drawer upside down and slide drawer bottom into grooves Page 17 of 20...
  • Page 18 Secure the drawer bottom to the drawer back with nails Use 4 nails per drawer Insert the Drawer Bottom Stabilizer Position the Stabilizer in the center of the drawer and insert it into the groove on the drawer front. This is the same groove that you inserted the drawer bottom into.
  • Page 19 Attach drawer slides to left and right drawer sides using drawer slide screws Right Drawer Side Drawer Slide Screws Left Drawer Side Drawer Slide Screws Page 19 of 20...
  • Page 20 STEP 15 Estimated Time: 2 minutes Insert drawers Note: When drawers are installed correctly, you will not be able to remove them without first lifting up the drawer front. Furniture Care Q&A How do I clean your products? We recommend that you simply wipe your products with a clean, damp cloth and then dry immediately with another clean cloth to maximize the life span and look of your unit Can I paint or varnish your products? Our products are made from durable composite woods with a laminate finish and therefore should not be...
