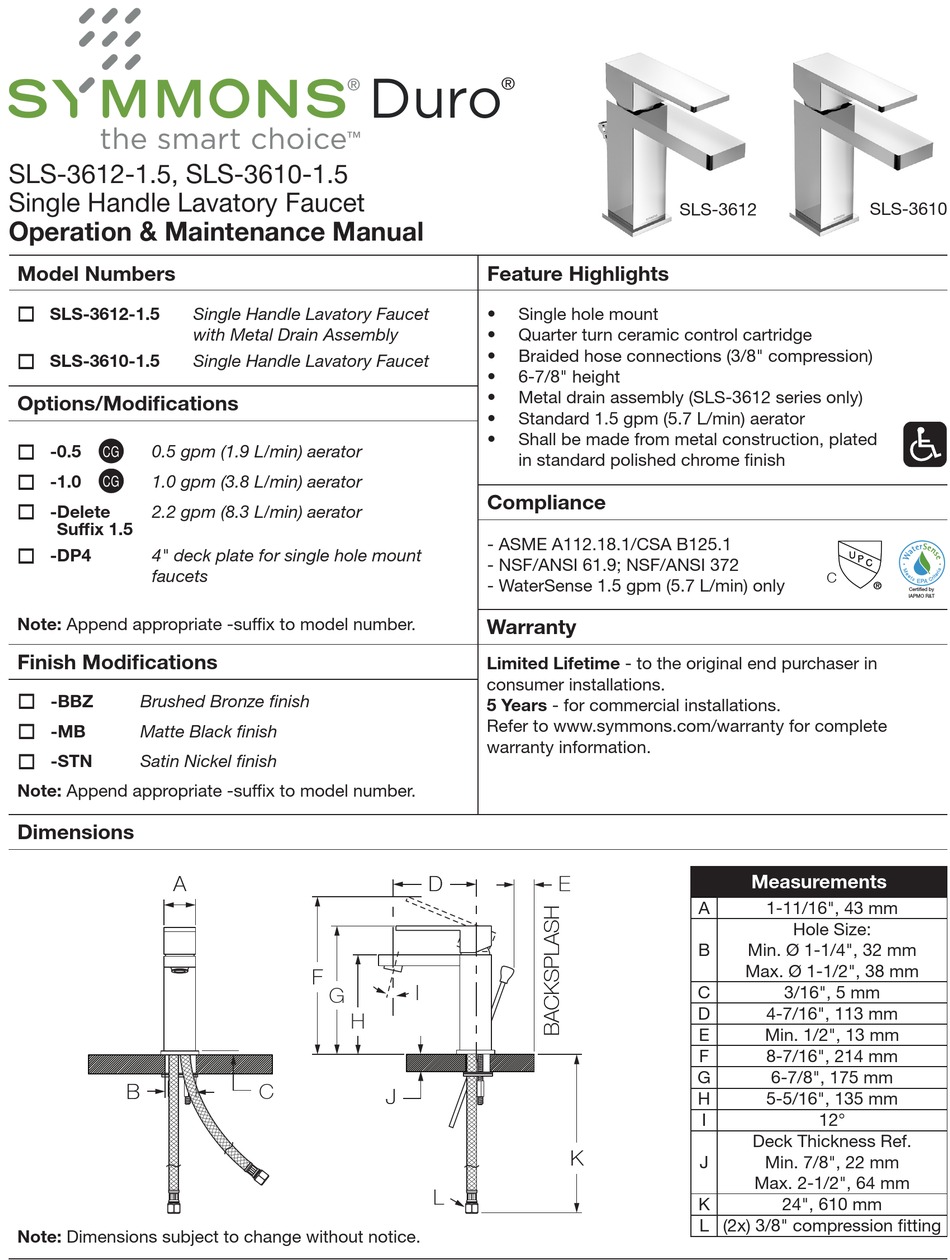

Symmons Duro SLS-3610 series Operation & Maintenance Manual

SLS-3612-1.5, SLS-3610-1.5

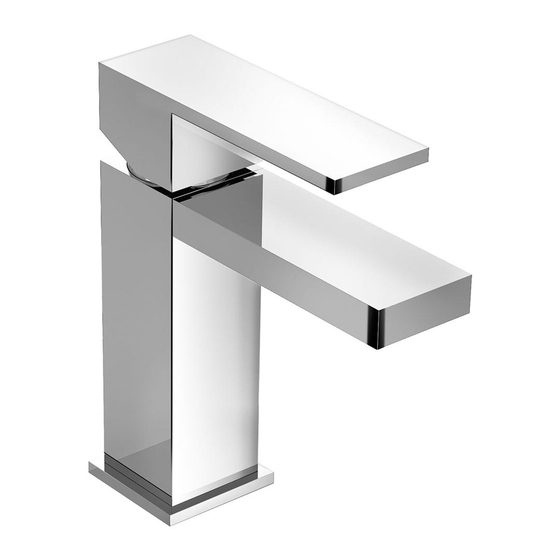

Single Handle Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
 SLS-3612-1.5
 SLS-3610-1.5
Options/Modifications
CG
 -0.5 0.5 gpm (1.9 L/min) aerator
CG
 -1.0
1.0 gpm (3.8 L/min) aerator
 -Delete 2.2 gpm (8.3 L/min) aerator
Suffix 1.5
-DP4
 4" deck plate for single hole mount
faucets
Note: Append appropriate -suffix to model number.
Finish Modifications
 -BBZ Brushed Bronze finish
 -MB Matte Black finish
 -STN Satin Nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
A A
B B
Note: Dimensions subject to change without notice.
Duro
Single Handle Lavatory Faucet
with Metal Drain Assembly
Single Handle Lavatory Faucet
F F
G
H
C
®
Feature Highlights
• Single hole mount
• Quarter turn ceramic control cartridge
• Braided hose connections (3/8" compression)
• 6-7/8" height
• Metal drain assembly (SLS-3612 series only)
• Standard 1.5 gpm (5.7 L/min) aerator
• Shall be made from metal construction, plated
in standard polished chrome finish
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 61.9; NSF/ANSI 372
- WaterSense 1.5 gpm (5.7 L/min) only
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
D D E
I
J J
L
SLS-3612
Measurements
A
B Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
C
D
E
F
G
H
I
K K
J
K
L (2x) 3/8" compression fitting
SLS-3610
c
Certi ed by
IAPMO R&T
1-11/16", 43 mm
Hole Size:
3/16", 5 mm
4-7/16", 113 mm
Min. 1/2", 13 mm
8-7/16", 214 mm
6-7/8", 175 mm
5-5/16", 135 mm
12°
Deck Thickness Ref.
Min. 7/8", 22 mm
Max. 2-1/2", 64 mm
24", 610 mm
