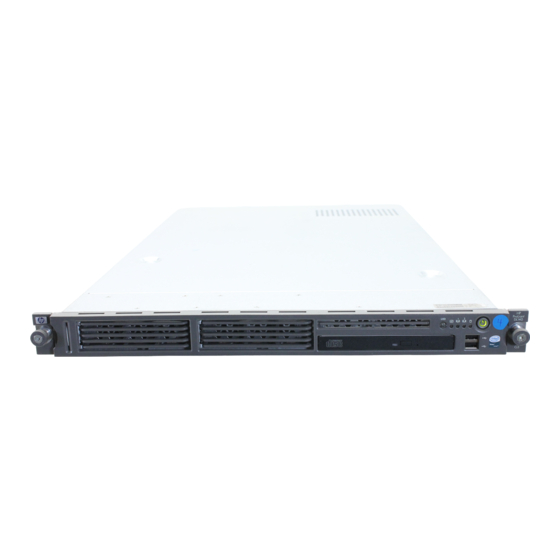

HP ProLiant DL140 Server
Setup and Installation Guide
November 2003 (Second Edition)
Part Number 349109-002
This guide provides IT administrators and technicians setup and installation requirements, precautions, and
instructions pertaining to the servers. The guide explains how to install hardware options for enhanced system
performance, how to install and configure memory, how to install expansion boards, how to install the server
in the rack, and how to cable and configure the servers.
2003 Hewlett-Packard Development Company, L.P.
Microsoft® and Windows NT® are U.S registered trademarks of Microsoft Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein.
The information in this document is provided "as is" without warranty of any kind and is subject to change
without notice. The warranties for HP products are set forth in the express limited warranty statements
accompanying such products. Nothing herein should be construed as constituting an additional warranty.
HP ProLiant DL140 Server Setup and Installation Guide
November 2003 (Second Edition)
Part Number 349109-002
Advertisement
Table of Contents
Troubleshooting
Related Manuals for HP PtoLiant DL140
Summary of Contents for HP PtoLiant DL140
- Page 1 The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
-
Page 2: Table Of Contents
Installing an Expansion Board ..........................12 Removing the PCI Riser Board Assembly ........................12 Installing the Expansion Board ............................13 Installing ATA Hard Drives..........................15 Installing a CD-ROM Drive Assembly.......................17 Installing a Processor ............................20 HP ProLiant DL140 Server Setup and Installation Guide... - Page 3 Laser Safety Warnings ..............................41 Compliance with CDRH Regulations..........................41 Compliance with International Regulations ........................41 Laser Product Label ................................. 42 Laser Information................................42 Battery Replacement Notice ..........................42 Power Cords................................43 Mouse Compliance Statement ..........................43 HP ProLiant DL140 Server Setup and Installation Guide...
- Page 4 System Configuration Switch (SW1) ..........................53 Clearing and Resetting System Password Settings......................54 Clearing and Resetting System Configuration Settings....................54 Setting the NIC Operating Mode............................55 APPENDIX E................................56 ............................56 ERVER PECIFICATIONS Operating and Performance Specifications ......................56 HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 5: About This Guide
All manuals and user guides at all-guides.com About This Guide This guide is designed to be used as step-by-step instructions for installation and as a reference for operation, troubleshooting, and future upgrades for the HP ProLiant DL140 server. Intended Audience This guide is intended for anyone configuring a ProLiant DL140 server. -
Page 6: Rack Stability
IMPORTANT: Text set off in this manner presents clarifying information or specific instructions. NOTE: Text set off in this manner presents commentary, sidelights, or interesting points of information. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 7: Text Conventions
Sans serif Related Documents For additional information on the topics covered in this guide, refer to the following documentation either on the Startup, Documentation and Utilities CD, on the HP website or included with the server. • HP ProLiant DL140 Server Maintenance and Service Guide •... -
Page 8: Hp Authorized Reseller
In Canada, call 1-800-263-5868. • Elsewhere, refer to for locations and telephone numbers. www.hp.com Reader’s Comments HP welcomes your comments on this guide. Please send your comments and suggestions by email to ServerDocumentation@hp.com. viii HP ProLiant DL140 Server Setup and Installation Guide... -
Page 9: Chapter 1
Most security features are established through BIOS Setup. Refer to Chapter 5 for detailed information on BIOS Setup. For additional information concerning server security features, refer to the documentation CD included in the shipping box. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 10: Chapter 2
Space and Airflow Requirements To allow for servicing and adequate airflow, observe the following spatial requirements when deciding where to install an HP, Compaq, Telco, or third-party rack: • Leave a minimum clearance of 63.5 cm (25 inches) in front of the rack. -
Page 11: Temperature Requirements
All manuals and user guides at all-guides.com HP servers draw in cool air through the rack front door and expel warm air through the rack rear door. Therefore, the front and rear rack doors must be adequately ventilated to allow ambient room air to enter the cabinet and warm air to escape from the rear of the cabinet. -
Page 12: Grounding Requirements
Because of the high ground leakage currents associated with multiple servers connected to the same power source, HP recommends the use of a power distribution unit (PDU) that is either permanently wired to the building’s branch circuit or includes a non-detachable cord that is wired to an industrial-style plug. -
Page 13: Server Warnings And Cautions
CAUTION: Do not operate the server for long periods without the access panel. Operating the server without the access panel results in improper airflow and improper cooling that can lead to thermal damage. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 14: Server Shipping Contents
In addition to these supplied items, the following additional items may be needed: • Application software diskettes • Options to be installed • Phillips screwdriver HP ProLiant DL140 Server Setup and Installation Guide... -
Page 15: Chapter 3
Press the server Power On/Off switch (1) to power down the server. The Power On/Off LED should change from green to off. HP ProLiant DL140 Server Setup and Installation Guide... - Page 16 Figure 3-2: Removing the server from the rack Removing the Access Panel WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal system components to cool before touching them. HP ProLiant DL140 Server Setup and Installation Guide...
- Page 17 1. Unscrew the rear access panel retention screw 2. Slide the access panel toward the rear of the unit, about 1.25 cm (0.5 inch), and lift the panel to remove it. HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 18: Identifying System Board Components
All manuals and user guides at all-guides.com Identifying System Board Components Use the following figure and table to identify the system board connectors and components for option installation or service events. Figure 3-3: Identifying system board components HP ProLiant DL140 Server Setup and Installation Guide... -
Page 19: Installing Additional Memory
266 MHz and 200 MHz. • Install the DIMMs in descending sequential order, starting with DIMM socket 4. • Use only HP recommended DIMMs. DIMMs from other sources can adversely affect data integrity Refer to for DIMM option kits. -
Page 20: Installing An Expansion Board
2. Lift the PCI riser board assembly from the server chassis. NOTE: If the PCI slot retention screw located near the slot cover is installed, it must be removed prior to removal of the PCI riser board. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 21: Installing The Expansion Board
Figure 3-5: Removing the slot cover CAUTION: Do not discard the slot cover. If the PCI expansion board is removed in the future, the slot cover must be reinstalled to maintain proper cooling. HP ProLiant DL140 Server Setup and Installation Guide... - Page 22 Place the PCI riser board assembly in the chassis and align the rear tab into the chassis. b. Press down firmly above the expansion slot until the assembly is seated in the expansion slot. c. Replace the access panel. Figure 3-7: Installing the PCI riser board assembly HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 23: Installing Ata Hard Drives
1. Loosen the bracket screw (1) and remove the hard drive tray (2). 2. Remove the four ATA hard drive mounting screws (3) from the hard drive tray. Figure 3-8: Removing the ATA hard drive tray HP ProLiant DL140 Server Setup and Installation Guide... - Page 24 3. Tighten the hard drive tray screw (2). IMPORTANT: When installing the hard drive tray screw, ensure all cables are clear of the hard drive tray. Figure 3-10: Installing an ATA hard drive assembly into the chassis HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 25: Installing A Cd-Rom Drive Assembly
1. Press in and hold the CD-ROM latch (1). 2. Slide the tray toward the rear of the server until the USB connectors are visible (2). 3. Lift the CD-ROM tray out of the server (3). HP ProLiant DL140 Server Setup and Installation Guide... - Page 26 To Install the CD-ROM drive in the tray: 1. Align CD-ROM drive (1) and the top cover (2) along the tray and Press down firmly above the tray until they are seated in place. 2. Tighten tray screws (3). HP ProLiant DL140 Server Setup and Installation Guide...
- Page 27 IMPORTANT: Make sure the CD-ROM drive cable is routed so as to not block airflow to the fan inlets. 6. Replace the Access cover. NOTE: The CD-ROM drive assembly can be removed to prevent unwanted software installation or for use in another ProLiant DL140 server. HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 28: Installing A Processor
Back up all server data. • Be sure that the server has the most recent ROM version. • This procedure assumes that the server is out of the rack and on a bench. HP ProLiant DL140 Server Setup and Installation Guide... - Page 29 Figure 3-17: Locating the processor socket 2. Open socket lever completely (1). 3. Insert the processor into the socket (2). 4. Close socket lever (3). Figure 3-18: Installing the processor into the socket HP ProLiant DL140 Server Setup and Installation Guide...
- Page 30 Missing or damaged thermal interface can lead to processor damage. 6. Install the heatsink onto the processor (1) and engage the retaining clips on each side of the heatsink (2). Figure 3-20: Installing the heatsink onto the processor HP ProLiant DL140 Server Setup and Installation Guide...
- Page 31 5. Be sure that the Server Status LED on the front of the chassis is not illuminated, indicating proper server operation. NOTE: If the Server Status LED on the front of the chassis is illuminated red, refer to the troubleshooting section of this document. HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 32: Chapter 4
All manuals and user guides at all-guides.com Server Installation Server Installation Procedures To install the rack-mounted server into an HP branded rack, complete the procedures described in the following subsections: Installing the Rack Rails Use the following procedures to install the rack rails to the rack: 1. - Page 33 Figure 4-2: Aligning the rear end of the server rails with the front end of the rack rails After installing the server in the rack, begin the procedure for “Connecting the Peripheral Device Cables and the Power Cord.” HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 34: Connecting The Peripheral Device Cables And The Power Cord
PCI-X Expansion slot RJ-45 GbE Ethernet connector for NIC 1 (WOL/PXE capable) Video connector Serial connector Keyboard connector CAUTION: Connect the power cord last or electrical damage to peripheral devices may occur. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 35: Powering Up The Server
Follow the instructions to complete the server initialization process. For Startup, Documentation and Utilities CD initialization procedures, refer to the Server Setup and Management pack shipped with the server or refer to Chapter 5, “Server Configuration and Utilities.” HP ProLiant DL140 Server Setup and Installation Guide... -
Page 36: Preconfigured Operating System
If the server was ordered with the operating system factory-installed, everything required to install the operating system is already on the server. Refer to the steps provided in the HP Factory-Installed Operating System Software User Guide for more information on using the operating system. -
Page 37: Routine Maintenance
HP offers an optional installation service for installing rack products. The installation service can be customized to meet the specific requirements of the customer, or it can be ordered as an HP Services Care Pack. The installation service covers the entire hardware installation process, from unpacking the components to routing the cables and running a system test. -
Page 38: Chapter 5
All manuals and user guides at all-guides.com Server Configuration and Utilities This chapter provides information about the utilities and support tools included with the HP ProLiant DL140 server. BIOS Setup This section describes the BIOS Setup Utility, which is used to change the server configuration defaults. -
Page 39: Setup Screens
The currently loaded System Memory. You cannot Memory change this value. It appears for informational purposes only. System Time HH:MM:SS Set the System Time in hour:minute:second format. System Date MM/DD/YYYY Set the System Date in month/day/year format. HP ProLiant DL140 Server Setup and Installation Guide... - Page 40 POST and during Boot Loader. Always: Redirection is always active. (Some OSs may not work if set to Always) Terminal Type [ANSI] Select the target terminal type VT100 VT-UTF8 VT-UTF8 [Disabled] Combo Key Enabled Support HP ProLiant DL140 Server Setup and Installation Guide...
- Page 41 The currently loaded User Password. You cannot change this value. It appears for informational purposes only. Change User Password [Enter] Install or change the password. Clear User Password [Enter] Immediately clears the user password HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 42: Automatic Server Recovery
This utility runs automatically every time the server is powered up. Refer to Appendix D, “Troubleshooting,” for the normal power-up sequence and diagnosis of problems encountered during POST. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 43: System Bios Update
Log generator (the device generating an Event Log) notifies the system of the event by sending an “Event Request Log” to the Event Receiver Device. Refer to Intelligent Platform Management Interface (IPMI) Specification v1.0, Document Revision 1.1, November 15, 1999 HP ProLiant DL140 Server Setup and Installation Guide... -
Page 44: Bios Beep Codes
Main memory read / write test error. Motherboard timer not operational Processor error Keyboard controller BAT test error. General exception error. Display memory error. ROM checksum error CMOS shutdown register read/write error Cache memory bad HP ProLiant DL140 Server Setup and Installation Guide... -
Page 45: Regulatory Compliance Notices
Regulatory Compliance Notices Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, the HP ProLiant DL140 server is assigned a regulatory model number. The regulatory model number for this product is: HSTNS-2100. This server regulatory model number can be found on the product label, along with the required approval markings and information. -
Page 46: Class B Equipment
Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000 or call 281-514-3333. To identify this product, refer to the part, marketing name, or regulatory model number found on the product. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 47: Modifications
EN 55022 (CISPR 22) – Electromagnetic Interference • EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) – Electromagnetic Immunity • EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics • EN61000-3-3 (IEC61000-3-3) – Power Line Flicker HP ProLiant DL140 Server Setup and Installation Guide... -
Page 48: Japanese Notice
All manuals and user guides at all-guides.com • EN 60950 (IEC 60950) – Product Safety Japanese Notice KOREAN NOTICE Class A Equipment Class B Equipment HP ProLiant DL140 Server Setup and Installation Guide... -
Page 49: Bsmi Notice
BSMI Notice Laser Devices All HP systems equipped with a laser device comply with safety standards, including International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment complies with laser product performance standards set by government agencies as a Class 1 laser product. -
Page 50: Laser Product Label
All manuals and user guides at all-guides.com Laser Product Label The following label or equivalent is located on the surface of the HP supplied laser device. This label indicates that the product is classified as a CLASS 1 LASER PRODUCT. -
Page 51: Power Cords
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 52: Electrostatic Discharge
If the suggested equipment for proper grounding is not available, have an authorized reseller install the part. NOTE: For more information on static electricity or for assistance with product installation, contact an authorized reseller. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 53: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting This appendix provides specific troubleshooting information for the HP ProLiant DL140 server. Use it to diagnose server startup and installation problems. For information on LEDs, switch settings, and jumpers, refer to Appendix D, “LEDs and Switch.”... -
Page 54: Diagnosis Steps
If yes, video is available for diagnosis. Determine the next action by observing POST progress and error messages. NOTE: If the server attempts to load the operating system, go to “Problems After Initial Startup” in this appendix. HP ProLiant DL140 Server Setup and Installation Guide... - Page 55 If these steps do not correct the problem, the most likely cause lies either in the power supply subsystem or a processor. Contact an authorized service provider for further technical support. HP ProLiant DL140 Server Setup and Installation Guide...
- Page 56 A series of beeps indicates the presence of a POST error message. Monitor the diagnostic LEDs on the system board for failure conditions. If these steps do not correct the problem, contact an authorized service provider for further technical support. HP ProLiant DL140 Server Setup and Installation Guide...
- Page 57 If the system video adapter is an add-in card, replace or reseat the video adapter. If the video adapter is an integrated part of the system board, the board may be faulty. HP ProLiant DL140 Server Setup and Installation Guide...
-
Page 58: Problems After Initial Startup
Be sure that all instructions provided in the HP system. Factory-Installed Operating System Software Installation Guide are being followed. Remove the new hardware and complete the software installation. -
Page 59: Other Troubleshooting Resources
Find this guide at www.compaq.com/support Follow the link for maintenance and service guides, and download the guide provided for the server. Information on warranties and service and support upgrades (HP Services Care Pack) can be found by visiting www.hp.com... -
Page 60: Leds And Switches
The set of five LEDs on the front of the server indicates server status. The following figure and table identify and describe the location and function of the LEDs. Figure D-1: Identifying the front panel LED indicators HP ProLiant DL140 Server Setup and Installation Guide... -
Page 61: Switches
The system configuration switch (SW1) is a four-position switch used for system configuration. Refer to the labels attached to the inside of the server access panel for the proper system configuration switch settings. The following table shows the shipping configuration of SW1. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 62: Clearing And Resetting System Password Settings
2 is set to the ON position, the system is prepared to erase all system configuration settings from both CMOS and NVRAM. IMPORTANT: Clearing CMOS and/or (NVRAM) deletes the configuration information. Refer to Chapter 5 for complete instructions on configuring the server. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 63: Setting The Nic Operating Mode
The NIC operating speed does not have to be set because the controllers automatically differentiate between the 10-Mbit, 100-Mbit and 1000-Mbit environments. To configure the PXE and WOL options press Cntl-S when prompted during POST. HP ProLiant DL140 Server Setup and Installation Guide... -
Page 64: Server Specifications
Operating temperature has an altitude derating of 1°C per 308.4 M (1.8°F per 1000 ft). No direct sunlight. Storage maximum humidity of 95 percent based on maximum temperature of 45°C (113°F). Altitude minimum for storage is 70 KPa.. HP ProLiant DL140 Server Setup and Installation Guide...
