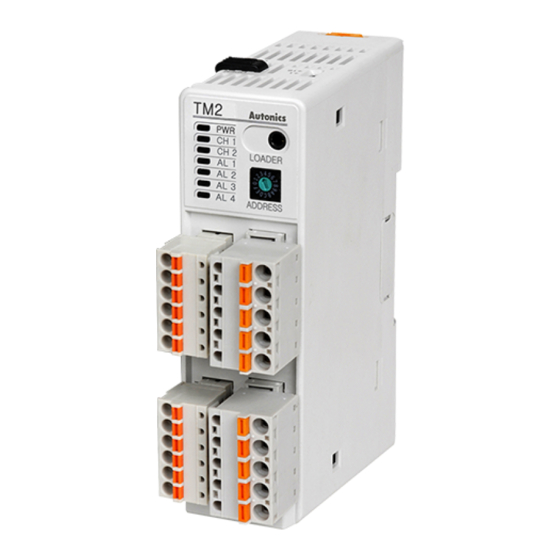

Autonics TM Series Manual

Multi-channel (4 channel / 2 channel) modular type pid control
Hide thumbs Also See for TM Series:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
TM Series
Multi-Channel (4 Channel / 2 Channel) Modular Type PID Control
Features
●●Multi-channel●(4●channel/●2●channel)●simultaneous●controlling●possible
●●High-speed●sampling●cycle●(4●channel:●100ms,●2●channel:●50ms)
●●No communication and power supply for expansion modules
required by using side connectors: Max. 31 units (124 channels / 62 channels)
●●Input●channel●isolated●design●(Dielectric●strength●1,000●VAC)
●●Heating/Cooling●simultaneous●controlling
●●●Allows●parameter●setting●by●USB●port●of●PC
:●Free●download●the●comprehensive●device●management●program●(DAQMaster)
※Communication●converter,●sold●separately
:●SCM-US●(USB●to●Serial●converter),●SCM-38I●(RS-232C●to●RS485●converter),●
●SCM-US48I●(USB●to●RS485●converter)
Parameter●setting●by●SCM-US●without●power/wiring
●●Easy●maintenance●via●connector●type●connection
:●Sensor●input●connector,●control●output●connector,●power/communication●connector
●●Multi●input●/●Multi●range
●●Heater●disconnection●function●(CT●input)●※ CT,●sold●separately:●CSTC-E80LN,●CSTC-E200LN
Manual
● ● Visit●our●website●(www.autonics.com)●to●download●user●manual●and●communication●manual.
● ● User●manual●describes●for●specifications●and●function,●and●communication●manual●describes●for●RS485●communication●
(Modbus●RTU●protocol)●and●parameter●address●map●data.
Comprehensive Device Management Program (DAQMaster)
● ● DAQMaster●is●comprehensive●device●management●program●for●convenient●management●of●parameters●and●multiple●
device●data●monitoring.
● ● Visit●our●website●(www.autonics.com)●to●download●user●manual●and●comprehensive●device●management●program.
<●Computer●specification●for●using●software●>
Item
Minimum●requirements
System
IBM●PC●compatible●computer●with●Intel●Pentium●Ⅲ●or●above
Operations
Microsoft●Windows●98/NT/XP/Vista/7/8/10
Memory
256MB+
Hard●disk
1GB+●of●available●hard●disk●space
VGA
Resolution:●1024×768●or●higher
Others
RS-232●serial●port●(9-pin),●USB●port
Ordering Information
TM
4
N
2
Option●I/O
Channels
Item
※ The●expansion●module●does●not●supply●power/comm.●terminal.●Order●it●with●the●basic●module.●
H-10
R
B
Module●type
Control●output
Power●supply
B
Basic●module
E
Expansion●module
R
Relay●output
2CH
C
Current●or●SSR●drive●output●selectable
R
Relay●output
4CH
S
SSR●drive●output
2
24VDC
CT●input,●Digital●input●(DI-1,●DI-2),●
2
Alarm●output●1+2,●RS485●comm.●output
2CH
CT●input,●Digital●input●(DI-1,●DI-2),
4
Alarm●output●1+2+3+4,●RS485●comm.●output
4CH
N
RS485●comm.●output
2
2●channels
4
4●channels
TM
Multi-channel●modular●temperature●controller
<●DAQMaster●screen●>
※ 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics TM Series

Summary of Contents for Autonics TM Series

  • Page 1 TM Series Multi-Channel (4 Channel / 2 Channel) Modular Type PID Control Features ●●Multi-channel●(4●channel/●2●channel)●simultaneous●controlling●possible ●●High-speed●sampling●cycle●(4●channel:●100ms,●2●channel:●50ms) ●●No communication and power supply for expansion modules required by using side connectors: Max. 31 units (124 channels / 62 channels) ●●Input●channel●isolated●design●(Dielectric●strength●1,000●VAC) ●●Heating/Cooling●simultaneous●controlling ●●●Allows●parameter●setting●by●USB●port●of●PC :●Free●download●the●comprehensive●device●management●program●(DAQMaster) ※Communication●converter,●sold●separately...
  • Page 2 Multi-channel Modular Type PID Control Specifications Photoelectric Sensors Series 2●channels● 4●channels● No.●of●channels Fiber (insulated●each●channel-dielectric●strength●1,000VAC) (insulated●each●channel-dielectric●strength●1,000VAC) Optic Sensors Power●supply 24VDC Permissible●voltage●range 90●to●110%●of●rated●voltage● Door/Area Power●consumption Max.●5W●(for●max.●load) Sensors Display●method None-●parameter●setting●and●monitoring●is●available●at●external●devices●(PC,●PLC,●etc.) Thermocouple K(CA),●J(IC),●E(CR),●T(CC),●B(PR),●R(PR),●S(PR),●N(NN),●C(TT),●G,●(TT),●L(IC),●U(CC),●Platinel●II Proximity Input●type Sensors JPt100Ω,●DPt100Ω●(permissible●line●resistance●max.●5Ω) Sampling●cycle 50ms●(2CH●synchronous●sampling)●● 100ms●(4CH●synchronous●sampling) ※1 Thermocouple Pressure (PV●±0.5%●or●±1℃,●select●the●highter●one)●±1digit●max. Sensors Measured●...

  • Page 3: Unit Description

    TM Series Dimensions ●(unit:●mm) 84.8 18.6 103.4 Unit Description 1. Sensor input connector 2. Control output connector 3. Power/Comm. terminal● [only●for●basic●module●(TM - 2 B)] Suppling●power●to●basic/expansion●modules●and●communicating●with● over●1●module●(s). 4. PC loader port It●is●the●PC●loader●port●for●serial●communication●between●one●module● and●PC●to●set●parameter●and●monitoring●by●DAQMaster.●Use●this●for● connecting●SCM-US●(USB●to●serial●converter,●sold●separately).●●● ※● W hen●using●PC●loader●port●(connecting●SCM-US),●communication●via● power/comm.●terminal●is●blocked●and●monitoring●is●not●available.● 5. Indicators ●TM2 Series Alarm●output...
  • Page 4 Multi-channel Modular Type PID Control Connections And Block Diagram Photoelectric TM2 Series Sensors SSR●OUT1 CURRENT●OUT1 RELAY●OUT1 CURRENT Fiber 12VDC●±3V DC0/4-20mA 250VAC●3A●1a 0.0A-50.0A Optic 30mA●Max.● Load●500Ω●Max. Sensors OUTPUT DI-1 RELAY●AL1●OUT CIRCUIT DIGITAL 250VAC●3A●1a CONTROL Door/Area INPUT DI-2 Sensors CIRCUIT RELAY●AL2●OUT 250VAC●3A●1a Proximity Sensors CH1●IN...

  • Page 5: Installation

    ●●DIN Rail Installation [Installation method] [Removal method] ① ① ① ●Put●the●top●edge●of●the●rail●Lock● ① ●Press●down●the●module●body.● on●the●top●edge●or●the●DIN●rail.● ② ●Pull●the●module●body●forward. ② ●Push●the●module●body●in●while● pressing●down. ② ② ※ Install the units vertically. ※ Use end plates (sold separately, not available from Autonics) to fix firmly. END●PLATE H-14...
  • Page 6 Multi-channel Modular Type PID Control Input Sensor Type And Temperature Range Photoelectric Sensors Input●range●( ℃ ) Input●range●( ℉ ) Input●sensor Display K(CA).H -200●to●1350 -328●to●2462 K(CA)●● Fiber K(CA).L -200.0●to●1350.0 -328.0●to●2462.0 Optic Sensors J(IC).H -200●to●800 -328●to●1472 J(IC)● J(IC).L -200.0●to●800.0 -328.0●to●1472.0 Door/Area Sensors E(CR).H -200●to●800 -328.0●to●1472...

  • Page 7: Communication Setting

    Computer A(+) ※ It is recommended to use Autonics communication converter; SCM-US48I (USB to RS485 converter, sold separately), SCM-38I (RS232C to RS485 converter, sold separately), SCM-US (USB to Serial converter, sold separately). Please use twisted pair wire for RS485 communication.
  • Page 8 Multi-channel Modular Type PID Control Sold Separately Photoelectric Sensors Communication converter SCM-38 SCM-US48 SCM-US Fiber Optic Sensors (RS232C to RS485 converter) (USB to RS485 converter) (USB to Serial converter) Door/Area Sensors Proximity Sensors Pressure Sensors Current transformer (CT) Rotary Encoders CSTC-E80LN F=50Hz Connectors/...
  • Page 9 TM Series Proper Usage Simple failure diagnosis Caution during use ● LED indicators flash (for 0.5 sec. in turn), or external ● ● Use●DC●power●only. device displays OPEN. ● ● Must●use●DC●power.● ●●Check●input●sensor●setting.● ● ● After●connecting●input●sensors●and●supplying●the●power,● ●●Disconnect●the●power●and●check●the●input●connection.● use●the●controller●20●minutes●later.● ●●If●input●is●connected,●disconnect●the●input●wiring● ● ● If●measurement●accuracy●is●low,●check●the●Input●Bias●...
