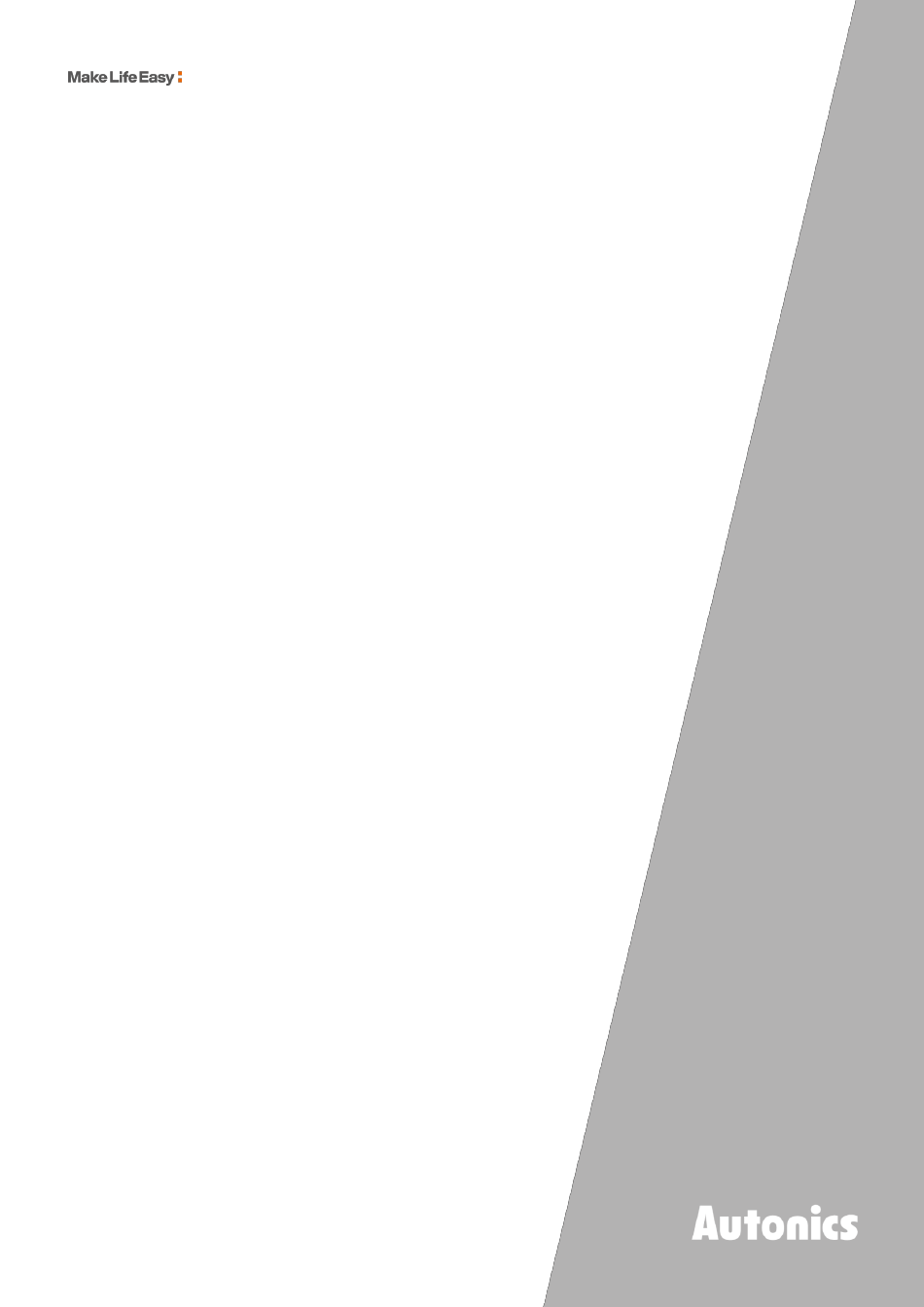

  • Page 1 Module manual Field Network Devices ARIO Series Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the porduct and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: Module Manual Guide

    Please visit our website (www.autonics.com) to download a copy.  The manual's content may vary depending on changes to the product's software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our homepage. ...

  • Page 5: Module Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. ※1 Annotation mark. © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Safety Considerations

    Do not cut off power or disconnect connectors (or terminals) while operating the unit. Failure to follow this instruction may result in fire or product damage. ※ The specifications and dimensions of this manual are subject to change without any notice © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Caution During Use

    For removing the terminal, body or base, do not operate units for a long time without it.  This unit may be used in the following environments. ① Indoors ② Altitude max. 2,000m ③ Pollution degree 2 ④ Installation category II © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Specifications ..................... 15 Dimensions ......................17 Status indicator ....................17 Wiring diagram ....................18 Power module [ARIO-P] ................20 Specifications ..................... 20 Dimensions ......................22 Status indicator ....................22 Wiring diagram ....................23 viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: Reference Manuals

    DAQMaster, a device integration management program, provides the expanded user convenience. You can use the module setting, real-time control, and monitoring/diagnosis function of input/output signal (except ARIO-C-PN and ARIO-C-PB). Also, you can arrange products through virtual mode and recommended sorting. © Copyright Reserved Autonics Co., Ltd.

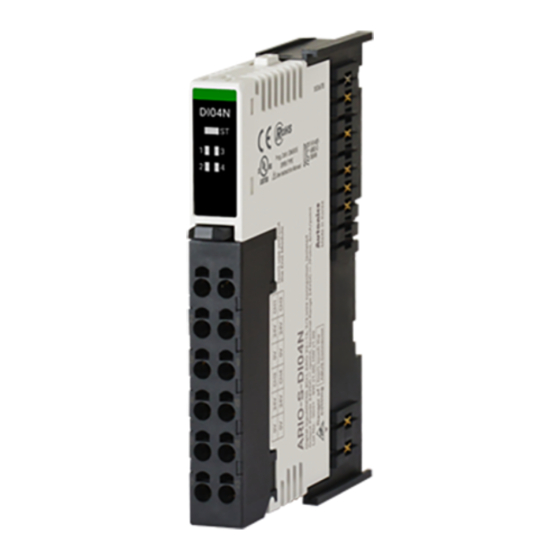

  • Page 10: Digital I/O Module [Ario-S-Di/Do]

    Max. 500mA/CH, 4CH/COM Rated output ㅡ current Max. 500mA/CH, 8CH/COM On delay time Max. 0.5ms Off delay time Max.1.5ms Power consump. (ABUS) 5VDCᜡ, max.100mA (max. 0.5W) Internal Transmission 4Mbps communication speed Installation method DIN rail mounting © Copyright Reserved Autonics Co., Ltd.
  • Page 11 ※ For connecting the modules, consider power concumption of the sensors and drivers connected the ARIO coupler. In case of one coupler module connecting, the ARIO digital module is available to connect up to 8 units. © Copyright Reserved Autonics Co., Ltd.

  • Page 12: Dimensions

    (2) Status LED color Flashing Flashing 1 Flashing 2 Flashing 3 Flashing 4 Waiting state for the ㅡ ㅡ ㅡ ㅡ Green internal network (ABUS) Error in the internal ㅡ ㅡ ㅡ ㅡ network (ABUS) © Copyright Reserved Autonics Co., Ltd.

  • Page 13: Wiring Diagram

    2 Digital I/O Module [ARIO-S-DI/DO] Wiring diagram ARIO-S-DI04N ARIO-S-DI04P ARIO-S-DI08N ARIO-S-DI08P ARIO-S-DO04N ARIO-S-DO04P © Copyright Reserved Autonics Co., Ltd.
  • Page 14 2 Digital I/O Module [ARIO-S-DI/DO] ARIO-S-DO08N ARIO-S-DO08P © Copyright Reserved Autonics Co., Ltd.

  • Page 15: Analog I/O Module [Ario-S-Ai/Ao]

    12bit 5VDCᜡ, max. 180mA 5VDCᜡ, max. 100mA ABUS (max. 0.9W) (max. 0.5W) Power consumption 24VDCᜡ, max. 15mA 24VDCᜡ, max. 60mA (max. 1.44W) (max. 0.36W) Internal communication Transmission speed: 4Mbps Installation method DIN rail mounting © Copyright Reserved Autonics Co., Ltd.
  • Page 16 For connecting the modules, consider power concumption of the sensors and drivers connected the ARIO coupler.In case of one coupler module connecting, the ARIO analog module is available to connect up to 4 units. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Dimensions

    LED color Flashing Flashing 1 Flashing 2 Flashing 3 Flashing 4 Waiting state for the ㅡ ㅡ ㅡ ㅡ Green internal network (ABUS) Error in the internal net- ㅡ ㅡ ㅡ ㅡ work (ABUS) © Copyright Reserved Autonics Co., Ltd.

  • Page 18: Wiring Diagram

    3 Analog I/O module [ARIO-S-AI/AO] Wiring diagram ARIO-S-AI02V1 ARIO-S-AI02C1 ARIO-S-AI04V1 ARIO-S-AI04C1 ARIO-S-AO02V1 ARIO-S-AO02C1 © Copyright Reserved Autonics Co., Ltd.
  • Page 19 3 Analog I/O module [ARIO-S-AI/AO] ARIO-S-AO04V1 ARIO-S-AO04C1 © Copyright Reserved Autonics Co., Ltd.

  • Page 20: Power Module [Ario-P]

    ※ The ARIO digital module is available to connect up to 8 units, and the ARIO analog and special module are available to connect up to 4 units. ※ For connecting the modules, consider power concumption of the sensors and drivers connected the ARIO power module. © Copyright Reserved Autonics Co., Ltd.
  • Page 21 ※3. For more information on the number of I/O supply power, go to ‘4.4 Wiring diagram’. ※ Environment resistance is rated at no freezing or condensation. ※ For connecting the modules, consider power concumption of the sensors and drivers connected the ARIO power module. © Copyright Reserved Autonics Co., Ltd.

  • Page 22: Dimensions

    4 Power module [ARIO-P] Dimensions Status indicator Green LED Operation state I/O supply voltage is connected. I/O supply voltage is not connected. © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Wiring Diagram

    4 Power module [ARIO-P] Wiring diagram ARIO-P-B ARIO-P-F1 ARIO-P-F2 © Copyright Reserved Autonics Co., Ltd.
  • Page 24 4 Power module [ARIO-P] ARIO-P-T1 ARIO-P-T2 © Copyright Reserved Autonics Co., Ltd.
  • Page 25 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MOO-ARIOMU-V1.1-1905US...
