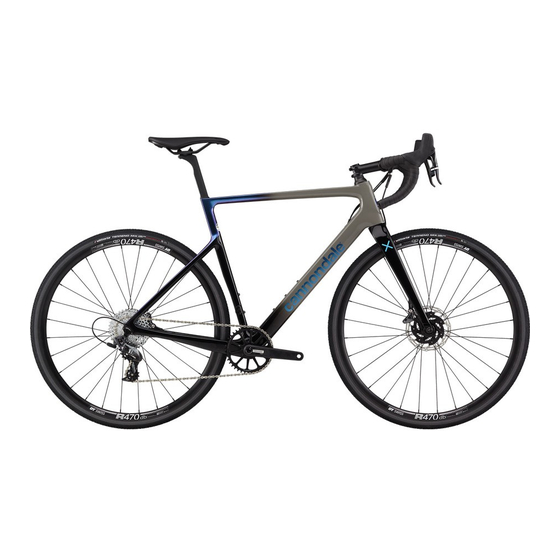

- Page 1 English SuperSix EVO CX/SE Owner’s Manual Supplement READ THIS SUPPLEMENT AND YOUR CANNONDALE BICYCLE OWNER’S MANUAL. Both contain important safety information. Keep both for future reference.
- Page 2 Safety Messages In this supplement, particularly important information is presented in the following ways: Indicates a hazardous situation which, if not avoided, may result in death or serious injury. NOTICE Indicates special precautions that must be taken to avoid damage. Symbols: Symbol Name...
- Page 3 It may be one of several important manuals/supplements for your bike; obtain and read all of them. Please contact your Authorized Cannondale Dealer immediately if you need a manual or supplement or have a question about your bike.
- Page 4 • An unusual or strange feel to the maintenance, and inspection of all the frame composites (frame, stem, fork, handlebar, seat post, etc.) Ask your Cannondale • Carbon which has a soft feel or Dealer for help. altered shape We urge you to read PART II, Section D.
- Page 5 You can be severely injured, paralyzed To minimize risk we strongly recommend or killed in an accident if you ignore this that owners always have mechanical message. work done by an Authorized Cannondale Dealer.
- Page 6 If you notice damage to the If you ride a trainer a lot, consider using an old bike: threaded insert, please ask your Cannondale Corrosion from sweat will take its toll. Weight is Dealer for help.
- Page 7 Tightening Torques Before building up a frame set, consult with Correct tightening torques for the fasteners your Cannondale Dealer and the component on your bicycle (e.g., bolts, screws, and nuts) manufacturers and discuss your riding style, is important for your safety and to maintain...
- Page 8 Technical Information Specifications SuperSix EVO CX/SE OMS TECHNICAL INFORMATION Specifications Item Specification Head Tube UPR: 1-1/8 in LWR: 1.5 in Headset Integrated 1-1/8 in - 1.5 in Bottom Bracket: Type/Width PF30A/83mm Front Derailleur Braze-on Seat Post: Dia./Binder /torque 27 KNØT/Internal Wedge/ 6 Nm 65 mm Min.
- Page 9 Technical Information Geometry Geometry Dimensions = centimeter * = same spec. Item Frame Size Seat Tube Length 44.9 48.8 52.4 54.6 56.6 Top Tube Horizontal 50.7 52.4 53.7 55.5 56.8 Top Tube Actual Head Tube Angle 70.0° 71.0° Seat Tube Angle Effective 74.6°...
- Page 10 Technical Information Downtube (DT) Port Guides / Routing SuperSix EVO CX/SE OMS Downtube (DT) Port Guides / Routing 0.5 N·m Identification 4 cable switch cover 4. Sram eTap cover 7. Cover screws, M3 x 12 2. Mechanical shift cover 5. Internal cable guide 3.
- Page 11 Technical Information Bottom Bracket (BB) Cable Guides / Routing Bottom Bracket (BB) Cable Guides / Routing 0.5 N·m (2X) M3 X 12mm Identification 1. RD / Shimano Di2 4. Blanking plate, right a. Slot for Di2 cable 2. FD/RB guide 5.
- Page 12 Do not over-tighten. or damage. If you find damage, have the frame inspected by your Cannondale • When using a mechanical FD system or Dealer .
- Page 13 BB shell edge. NOTICE Replacement • Consult with your Cannondale Dealer on the Bearings are not removable from the PF30 cup systems pressed into the bottom bracket shell. Therefore, both quality and compatibilty of any proposed bearing and cup must be removed and together replacement component.
- Page 14 A seat post should not be bottomed out inside place on the seat post. the frame at any time. If necessary, have your Cannondale dealer cut the seat post To adjust: appropriately. Insert the prepared seat post into the frame.
- Page 15 Technical Information Seat Post Identification Saddle Clamp Seat Post Sliding Clamp Cover Di2 Battery Battery Bracket Di2 Cable 6 N·m 65mm Apply carbon paste to 6 N·m entire length of the inserted seat post Minimum Insert Maximum Insert Maximum Depth...
- Page 16 Technical Information Seat Binder SuperSix EVO CX/SE OMS Seat Binder Key points: • The internal seat binder system consists of a sliding clamp assembly (1) and a nut base (2) permanently bonded into the frame. • Periodically, the seat binder should be removed and both the seat binder and the frame serviced.
- Page 17 Technical Information Seat Binder APPLY GREASE AND CARBON PASTE CAREFULLY TO SURFACES SHOWN HERE Identification 1. Seat Binder 2. Nut Base Seat binder shown disassembled for clarity Identification a. Sliding Clamp b. Roll Pins (2X) c. Washer d. Grub Screw...
- Page 18 Use only 6 mm offset rear wheels. Incorrect wheel offset can damage your frame. A standard-dish rear wheel assembled on this frame will result in insufficient tire clearance, leading to rubbing and serious frame damage. This kind of damage is not covered by the Cannondale Limited Warranty. Building/Trueing a Wheel: If you choose to build or to true a rear wheel for use on this bike, make sure the 6 mm offset is present.
- Page 19 Replacement Parts Service REPLACEMENT PARTS Part Number Description Part Number Description Derailleur Hanger TA ST Rubber Brake Housing K33071 KP449/ 2P 086 Grommets S6 EVO/CAAD13 Down Tube K32221 DT Cable Keeper K32160 Cable Guide K32171 DT Cable Switch Plate E255920+E256046 Cable HG 27 KNOT Crb Seatpost K2601000 K32150...
- Page 20 © 2021 Cycling Sports Group SuperSix EVO CX/SE OMS 138671 (08/21) CANNONDALE USA CSG EUROPE CSG UK Cycling Sports Group, Inc. Cycling Sports Group Europe B.V. Cycling Sports Group 1 Cannondale Way, Geeresteinselaan 57 Vantage Way, The Fulcrum, Wilton CT, 06897, USA...
