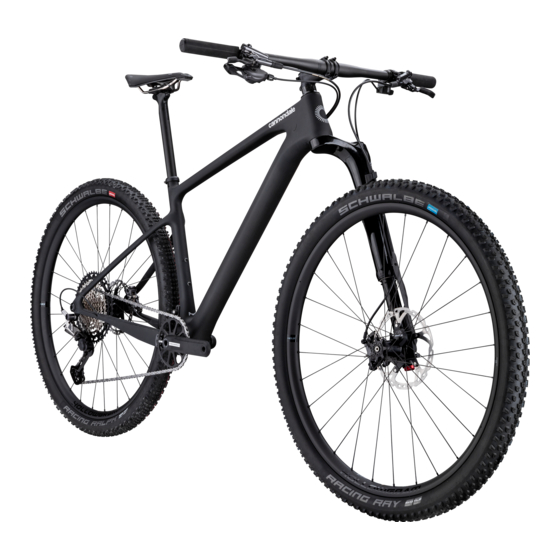

- Page 1 English Scalpel HT Owner’s Manual Supplement READ THIS SUPPLEMENT AND YOUR CANNONDALE BICYCLE OWNER’S MANUAL. Both contain important safety information. Keep both for future reference.
- Page 2 Safety Messages In this supplement, particularly important information is presented in the following ways: Indicates a hazardous situation which, if not avoided, may result in death or serious injury. NOTICE Indicates special precautions that must be taken to avoid damage. SYMBOLS: = Apply NLGI-2 Synthetic grease or a high-quality bicycle bearing grease...
- Page 3 Maintenance ........19 several important manuals/supplements for your bike; obtain and read all of them. Please contact your Authorized Cannondale Dealer immediately if you need a manual or supplement or have a question about your bike. You may also contact us using the appropriate country/region/location information.
-
Page 4: Safety Information
An unusual or strange feel to the frame composites (frame, stem, fork, handlebar, seat post, etc.) Ask your Cannondale Carbon which has a soft feel or altered Dealer for help. shape We urge you to read PART II, Section D. - Page 5 To minimize risk we strongly recommend your bicycle. that owners always have mechanical work done by an Authorized Cannondale Dealer. Torque specs listed on the websites of component manufacturers. With your dealer. Dealers have access to current data and have experience with correct torque for most fasteners.
- Page 6 Your retailer MUST follow and observe this specification for your bike. For Maximum Fork Length specifications for Cannondale bicycles, see www.cannondale.com. You can be severely injured, paralyzed or killed in an accident if you ignore this warning.
- Page 7 The serial number is located on the bottom bracket. It is a 7-character barcode (1). Use this serial number to register your bike. To register your bike: go to the Product Registration section of our website at www.cannondale.com 1. Serial Number 2. Product Codes...
- Page 8 Safety Information Minimum Seat Post Insert - Frame Scalpel HT OMS Minimum Seat Post Insert - Frame Keep the frame’s minimum seat post insertion length inserted into the frame at all times. The length is found in the “Specifications” table in this manual.
-
Page 9: Technical Information
Technical Information Specifications Technical Information Specifications Item Specification Head Tube UPR: 1 1/8in LWR: 1 1/2in Headset Integrated 1 1/8in-1.5in FSA Orbit C-40 ACB Bottom Bracket: Type/Width 83mm PF30 Front Derailleur Seat Post: Dia./Binder 27.2mm/30.9mm 100mm Min. Seat Post Insert 29 x 2.35in Tire Size x Max. - Page 10 Technical Information Geometry - Scalpel HT 100 (Lefty Ocho) Scalpel HT OMS Geometry - Scalpel HT 100 (Lefty Ocho) 75 mm D¹ Dimensions = centimeters Item Size Wheel Size Seat Tube Length 39.0 44.0 48.0 53.0 Top Tube Horizontal 57.1 59.4...
- Page 11 Technical Information Geometry - Scalpel HT 110 (Lefty Ocho 120) Geometry - Scalpel HT 110 (Lefty Ocho 120) 75 mm D¹ Dimensions = centimeters Item Size Wheel Size Seat Tube Length 39.0 44.0 48.0 53.0 Top Tube Horizontal 57.2 59.4 61.7...
- Page 12 A seat post should not be bottomed out inside To adjust: the frame at any time. If necessary, have your Cannondale dealer cut the seat post Insert the prepared seat post into the frame. appropriately. Set the saddle height. Maintain the specified minimum insert.
- Page 13 Technical Information Seat Post Identification Seat post Seat post clamp Clamp bolt Threaded insert Apply carbon paste to entire length of the inserted seat post N·m 100mm Minimum Maximum Bottom Out...
- Page 14 Technical Information Chain Guide Setup Scalpel HT OMS Chain Guide Setup To install the chain guide: to derail the chain, while pedaling it forward (by hand) in the work stand. The chain should Clean the guide and the frame mounting not come off of the guide.
- Page 15 Technical Information Chain Guide Setup N·m N·m N·m N·m Identification Guide arm Mounting screw Guide head Guide screw Threaded plate bump recess point end...
- Page 16 Use the specified bottom bracket tools when servicing. Consult with your Cannondale Dealer on the quality and compatibility of any proposed replacement component. Do not use chemical solvents to clean. Do not remove frame material or use surfacing tools on the bottom bracket shell.
- Page 17 Technical Information Universal Derailleur Hanger (UDH) Universal Derailleur Hanger (UDH) NO grease 25 N·m SRAM P/N : 00.7918.093.000 UDH™ - SRAM - ac-drhg-mtb-a1 Identification UDH dropout 4. UDH Bolt 2. UDH hanger a. UDH rotation stop 3. UDH washer Replacement Before installing a new /replacement hanger, be sure to clean any dirt or debris on the dropout with a nylon brush (e.g., old toothbrush).
- Page 18 Technical Information Cable Routing Scalpel HT OMS Cable Routing Identification RD - Rear derailleur housing, or cable RB - Rear brake housing DP - Dropper post housing Route cables inside the frame from the headtube to the bottom bracket shell and enter the chainstays.
- Page 19 1 . Chain plate 2. Chainstay, protector NOTICE Damaged, loose, missing, or incorrectly-positioned protectors can lead to frame damage not covered by the Cannondale Limited Warranty. Make sure all frame protectors and guards are present, in good condition, and installed correctly.
-
Page 20: Replacement Parts
SRAM Universal Derail- Rubber Brake Housing KP449/ leur Hanger (UDH) Grommets SRAM P/N K32241 Cable Entry Grommet 00.7918.093.000 K34591 Scalpel HT CS Protector K11271 Scalpel HT Chain Guide Scalpel HT Chainring K32161 BB Guide Covers K34601 Clear Frame Protection K32150 Cable Guides... -
Page 21: Maintenance
Record Maintenance Developing an Schedule Maintenance The following table lists only supplemental maintenance items. Please consult your Cannondale Bicycle Owner’s Manual for more information on basic bike maintenance. Developing an Schedule Item Frequency Cable Routing - Make sure control cables are in place, undamaged Before first ride and attached securely. - Page 22 © 2021 Cycling Sports Group Scalpel HT OMS 138678 Rev. 1 (09/21) CANNONDALE USA CSG EUROPE CANNONDALE UK Cycling Sports Group, Inc. Cycling Sports Group Europe B.V. Cycling Sports Group 1 Cannondale Way, Geeresteinselaan 57 Vantage Way, The Fulcrum,...
