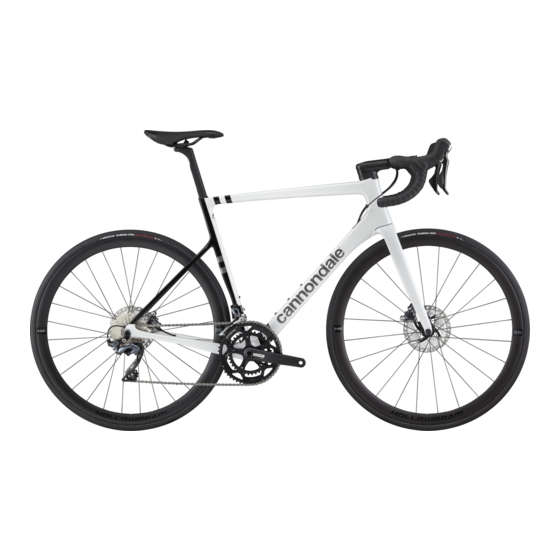

  • Page 1 English SuperSix EVO Owner’s Manual Supplement READ THIS SUPPLEMENT AND YOUR CANNONDALE BICYCLE OWNER’S MANUAL. Both contain important safety information. Keep both for future reference.
  • Page 2 Carbon gel/friction paste Apply carbon gel (friction paste) KF115/ NGLI-2 synthetic grease Apply NGLI-2 synthetic grease. Medium-strength removable thread Apply Loctite® 242 (blue) or equivalent. lock Cannondale Help Center Our online Help Center contains helpful resources to consult about our bikes. https://cannondale.zendesk.com/hc/en-us...
  • Page 3 Notes ..........26 several important manuals/supplements for your bike; obtain and read all of them. Please contact your Authorized Cannondale Dealer immediately if you need a manual or supplement or have a question about your bike. You may also contact us using the appropriate country/region/location information.

  • Page 4: Safety Information

    (frame, stem, fork, handlebar, • Carbon which has a soft feel or seat post, etc.) Ask your Cannondale altered shape Dealer for help. • Creaking or other unexplained We urge you to read PART II, Section D.
  • Page 5 To minimize risk we strongly recommend You can be severely injured, paralyzed that owners always have mechanical or killed in an accident if you ignore this work done by an Authorized Cannondale message. Dealer.
  • Page 6 Cannondale Instructions 138252.pdf” Dealer for help. www.cannondale.com NOTICE An impact, crash, or loose bottle cage can result in damage to your frame. This kind of damage is not covered by the Cannondale Limited Warranty. 151901 Rev. 0 (09/22)
  • Page 7 Tightening Torques Before building up a frameset, consult with Correct tightening torques for the fasteners your Cannondale Dealer and the component on your bicycle (e.g., bolts, screws, and manufacturers and discuss your riding style, nuts) are important for your safety and to...

  • Page 8: Technical Information

    Technical Information Specifications SuperSix EVO OMS TECHNICAL INFORMATION Specifications Item Specification Head Tube UPR: 1-1/8in, LWR: 1-1/4in Headset Integrated 1-1/8in-1-1/4in, IS42 Top IS47 Bottom Bottom Bracket: Type/Width BSA/68mm - Sleeve required Front Derailleur Braze-on Seat Post: 0mm Offset: K26062 20mm Offset: K26072...
  • Page 9 Technical Information Geometry Geometry Dimensions = centimeter * = same spec. 75mm Size Wheel Size 700c 700c 700c 700c 700c 700c 700c Seat Tube Length 40.0 43.8 47.7 51.5 53.4 56.7 60.0 Top Tube Horizontal 51.2 52.0 52.8 54.6 56.2 57.8 60.3 Top Tube Actual...
  • Page 10 Technical Information Shimano Di2 Battery SuperSix EVO OMS Shimano Di2 Battery Identification BB plug 2. Tether • The tethering assembly is compatible with 3. Di2 battery Shimano BT_DN110 Di2 battery. 4. O-ring, larger 5. O-ring, smaller • The tether is fitted to the battery and secured onto it by the O-rings.
  • Page 11 Technical Information Routing 1 Routing 1 Identification Front brake hose 6. Front derailleur wire 10. SmartSense cable 2. Rear brake hose 7. SmartSense port cover 3. DT cable guide 8. SmartSense cable 4. DT cover 9. SmartSense seatpost 5. Rear derailleur wire grommets...
  • Page 12 Technical Information Routing 2 SuperSix EVO OMS Routing 2 Identification Headset bearing dust cover 2. 2-piece spacers a. Clearance area for brake hose and electric wire 151901 Rev. 0 (09/22)
  • Page 13 Technical Information Downtube (DT) Port Guides / Routing Downtube (DT) Port Guides / Routing 0.5 N·m Identification 4-cable port cover 3. Shimano Di2 port cover 6. Guide screws, M3 x 8 2. Mechanical shift housing 4. Wireless shifting cover 7. Cover screws, M3 x 12 stop (DO NOT USE) 5.
  • Page 14 4. Clean the area around the dropout and manual-020922.ashx inspect the frame carefully for any cracks or damage. If you find damage, have the frame inspected by your Cannondale The SmartSense Owner’s Manual contains Dealer . important safety information and information...
  • Page 15 Technical Information Bottom Bracket Bottom Bracket Identification Bottom bracket 4. Right bearing cup 2. Left bearing cup 3. Sleeve This frame requires a bottom bracket with integrated sleeve to prevent spindle contact with internal wiring or hoses! Do not remove or omit the sleeve during assembly or service.
  • Page 16 Do not adjust a seat post so it is bottomed out in the frame. For more information about carbon fiber seat posts, see also “Care and Maintenance of Carbon Fiber Seat Posts” in your Cannondale Bicycle Owner’s Manual. 151901 Rev. 0 (09/22)
  • Page 17 Technical Information Seat Post 6 N·m Identification Seat post Don’t grease the surface 2. Binder clamp that faces the seat post. 3. Binder screw 4. Cover 5. Clamp bolts 8 N·m 65mm Maximum Insert Minimum Insert Bike Size 44cm 100mm 48cm 140mm 51cm...
  • Page 18 Headset Delta Compression Assembly - K35051 SuperSix EVO OMS Headset Delta Compression Assembly - K35051 Key Points The Supersix Evo utilizes a fork with a triangular steerer, also known as a “delta The delta steerer must be sized correctly. A steerer”...
  • Page 19 Technical Information Headset Delta Compression Assembly - K35051 Item (5) used as the top spacer, immediately below the stem, to support the filler feet whenever spacers are used which don’t have foot supports (e.g., common round spacers). Identification Stem 2. Fork steerer 3.
  • Page 20 Technical Information SystemBar R-One SuperSix EVO OMS SystemBar R-One 5 N·m Identification Handlebar 2. Handlebar bolts M5X18 3. Dogbone nut 4. Stem cover mod 5. Top cap for 6. Headset delta compression assembly 151901 Rev. 0 (09/22)
  • Page 21 Technical Information SystemBar R-One Mount SystemBar R-One Mount Change bolt mounting holes of mount to move mount forward or back depending on preference or computer unit length Identification Garmin mount cockpit 2. Light mount cockpit 3. Quarter turn mount Garmin 4.
  • Page 22 Technical Information C1 Conceal Stem SuperSix EVO OMS C1 Conceal Stem Identification C1 Conceal Stem 2. Accessory mount 3. Spacers 4. Cables 5. Headset delta compression assembly 151901 Rev. 0 (09/22)
  • Page 23 Technical Information C1 Conceal Stem 4 N·m 5 N·m 5 N·m 2 N·m Identification Top cap 2 N·m 2. Compression nut 3. Cover 4. Faceplate bolts 5. Stem body 6. Face plate 7. Screw M4 x 12 8. Cable clip 9.

  • Page 24: Replacement Parts

    Replacement Parts Service SuperSix EVO OMS REPLACEMENT PARTS SystemBar R-One C1 Conceal Stem 10mm 15mm 151901 Rev. 0 (09/22)
  • Page 25 Replacement Parts Service Part Number Description K33023 Derailleur Hanger TA ST 2p 093 K26002 S6 EVO Internal Seatbinder V3 K26053 EVO4 Seatpost Grommet K26092 EVO v4 Smartsense Rail Clamp w/Hardware K32142 S6 EVO BB Grommets KP449/ Rubber Brake Housing Grommets K32170 S6 EVO Frame Grommets K33022...

  • Page 26: Notes

    NOTES Service SuperSix EVO OMS NOTES Use NOTES pages to write /record important information about your bike : (e.g. maintenance history, dealer contact information, settings, etc.) 151901 Rev. 0 (09/22)
  • Page 28 © 2022 Cycling Sports Group SuperSix EVO OMS 151901 Rev. 0 (09/22) CANNONDALE USA CSG EUROPE CSG UK Cycling Sports Group, Inc. Cycling Sports Group Europe B.V. Cycling Sports Group 1 Cannondale Way, Geeresteinselaan 57 Vantage Way, The Fulcrum,...
