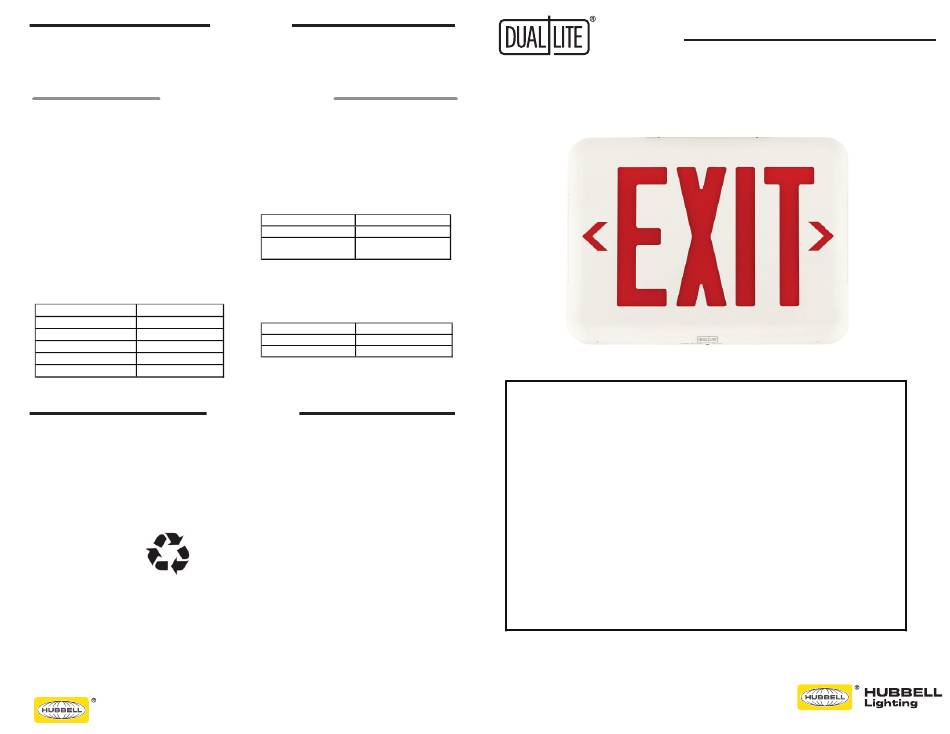

Hubbell DUAL LITE EVE Series Quick Start Manual

OPERATION

"AC ON" LED is illuminated when AC power is present.
OPERATION
NOTE: All models are supplied with an AC Lockout Circuit, which prevents the "EXIT" legend from illuminating when the battery is connected and no AC power is present.
NOTE: All models are supplied with a Low Voltage Disconnect circuit, which prevents damage to the battery from deep discharge during prolonged emergency operation.
"AC ON" LED is illuminated when AC power is present.
NOTE: Batteries are often shipped in a discharged state - this is normal. The battery will require charging. Allow several hours of charge before testing the unit.
NOTE: All models are supplied with an AC Lockout Circuit, which prevents the "EXIT" legend from illuminating when the battery is connected and no AC power is present.
NOTE: All models are supplied with a Low Voltage Disconnect circuit, which prevents damage to the battery from deep discharge during prolonged emergency operation.
Models With SPECTRON® Self-Testing/Self-Diagnostic Circuitry
NOTE: Batteries are often shipped in a discharged state - this is normal. The battery will require charging. Allow several hours of charge before testing the unit.
Models equipped with the SPECTRON self-testing/self-diagnostic electronics system provide:
Models With SPECTRON® Self-Testing/Self-Diagnostic Circuitry
■ Visual indication of AC power status
Models equipped with the SPECTRON self-testing/self-diagnostic electronics system provide:
Visual indication of any unit malfunctions including:
■ Visual indication of AC power status
■ Battery disconect ■ Battery fault
Visual indication of any unit malfunctions including:
■ Battery disconect ■ Battery fault
Spectron equipped units also include:
Brownout protection: unit will automatically transfer to emergency operation upon detection of low AC power (aproximately 80% of normal line).
Spectron equipped units also include:
Time Delay Retransfer: upon return of normal AC power, unit will remain in the emergency mode for an additional 15 minutes to allow AC power to stabilize.
Brownout protection: unit will automatically transfer to emergency operation upon detection of low AC power (aproximately 80% of normal line).
Time Delay Retransfer: upon return of normal AC power, unit will remain in the emergency mode for an additional 15 minutes to allow AC power to stabilize.
LED Status Indicator
A bicolor LED (red/green) is provided on the control panel of all models equipped
LED Status Indicator
with Spectron option.
A bicolor LED (red/green) is provided on the control panel of all models equipped
with Spectron option.
Green Operating Status Indicator
The green Operating Status Indicator serves as both an AC power and self-test
Green Operating Status Indicator
indicator. During normal operation, the green Operating Status Indicator will be
The green Operating Status Indicator serves as both an AC power and self-test
illuminated, indicating the presence of AC power. During all automatic or manual
indicator. During normal operation, the green Operating Status Indicator will be
self-test cycles, the green Operating Status Indicator will blink at a 1 Hz rate.
illuminated, indicating the presence of AC power. During all automatic or manual
self-test cycles, the green Operating Status Indicator will blink at a 1 Hz rate.
Red Service Alert Indicator
Under normal operating conditions, the red Service Alert Indicator will remain off.
Red Service Alert Indicator
In the event the Spectron controller detects a malfunction, the red Service Alert
Under normal operating conditions, the red Service Alert Indicator will remain off.
Indicator will blink at a 1 Hz rate, based on the following table:
In the event the Spectron controller detects a malfunction, the red Service Alert
Indicator will blink at a 1 Hz rate, based on the following table:
Red Status Indicator Code Description
Red Status Indicator Code Description
One blink ON/pause Battery not connected
One blink ON/pause Battery not connected
Two blinks ON/pause Battery fault
Two blinks ON/pause Battery fault
Three blinks ON/pause Charger fault
Three blinks ON/pause Charger fault
Four blinks ON/pause Transfer circuit fault
Four blinks ON/pause Transfer circuit fault
Five blinks ON/pause Emergency Lamp fault
Five blinks ON/pause Emergency Lamp fault

MAINTENANCE

MAINTENANCE

TROUBLE SHOOTING

TROUBLE SHOOTING
● "EXIT" legend does not illuminate
● "EXIT" legend does not illuminate
- check wiring connections - check wiring connections
● Emergency Circuit does not work
● Emergency Circuit does not work
- Batteries are shipped uncharged and disconnected. Connect power pack leads charge before testing.
- Batteries are shipped uncharged and disconnected. Connect power pack leads charge before testing.
- Make sure charger board is properly seated.
- Make sure charger board is properly seated.
- Check wiring connections.
- Check wiring connections.
MAINTENANCE
MAINTENANCE
Signs should be tested and maintained in accordance with National Electrical Code and NFPA 101 Life Safety Code requirements. It is recommended that emergency exit
Signs should be tested and maintained in accordance with National Electrical Code and NFPA 101 Life Safety Code requirements. It is recommended that emergency exit
signs be tested for 30 seconds once a month and for 90 minutes once a year.
signs be tested for 30 seconds once a month and for 90 minutes once a year.

RECYCLING INFORMATION

RECYCLING INFORMATION
All thermoplastic parts are recyclable.
All thermoplastic parts are recyclable.
All cartons contain recycled materials.
All cartons contain recycled materials.
Please recycle responsibly.
Please recycle responsibly.
NOTICE:
NOTICE:
Emergency model exit signs contain rechargeable Nickel Metal Hydride batteries which must be recycled or disposed of properly.
Emergency model exit signs contain rechargeable Nickel Metal Hydride batteries which must be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright© Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright© Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
OPERATION
■ Visual indication of self-diagnostic test cycle
■ Visual indication of self-diagnostic test cycle
■ Transfer fault ■Charger fault ■ Emergency Lamp fault
■ Transfer fault ■Charger fault ■ Emergency Lamp fault
Automatic Tests
The unit will automatically initiate a self-test/self-diagnostic cycle based
Automatic Tests
on the following table:
The unit will automatically initiate a self-test/self-diagnostic cycle based
on the following table:
Testing Period Duration of Test
Once a month Testing Period 1 minute Duration of Test
Once a month Alternating: 1 minute
Once every 6 months
30 minutes or 60 minutes Alternating:
Once every 6 months
30 minutes or 60 minutes
Manual Tests
Manual Tests
Using the unit test switch, users can initiate different duration test cycles
Using the unit test switch, users can initiate different duration test cycles
based on the following table:
based on the following table:
Initiating Action Test Cycle
Initiating Action Test Cycle
Press test switch once 1 minute
Press test switch once 1 minute
Press test switch twice 90 minutes
90 minutes
Press test switch twice
MAINTENANCE

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors. 1. Do not use outdoors.
2. Do not let power supply cords touch hot surfaces. 2. Do not let power supply cords touch hot surfaces.
3. Do not mount near gas or electric heaters.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subject to tampering by
4. Equipment should be mounted in locations and at heights where it will not readily be subject to tampering by
unauthorized personnel.
unauthorized personnel.
5. The use of accessory equipment not authorized by the manufacturer may cause an unsafe condition.
5. The use of accessory equipment not authorized by the manufacturer may cause an unsafe condition.
6. Do not use this equipment for other than its intended purpose.
6. Do not use this equipment for other than its intended purpose.
7. Servicing of this equipment should be performed by qualified service personnel.
7. Servicing of this equipment should be performed by qualified service personnel.
8. Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency exit signs once a month for a
8. Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency exit signs once a month for a
minimum of 30 seconds and once a year for a minimum of 90 minutes
minimum of 30 seconds and once a year for a minimum of 90 minutes
• SEE UNIT LABLE FOR ADDITIONAL MODEL SPECIFICATIONS
LABEL
• SEE UNIT LABLE FOR ADDITIONAL MODEL SPECIFICATIONS
• SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
• SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm.
Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm.
Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
93048330_3
EVE Series
EVE Series
Installation, Operation , and Maintenance Instructions

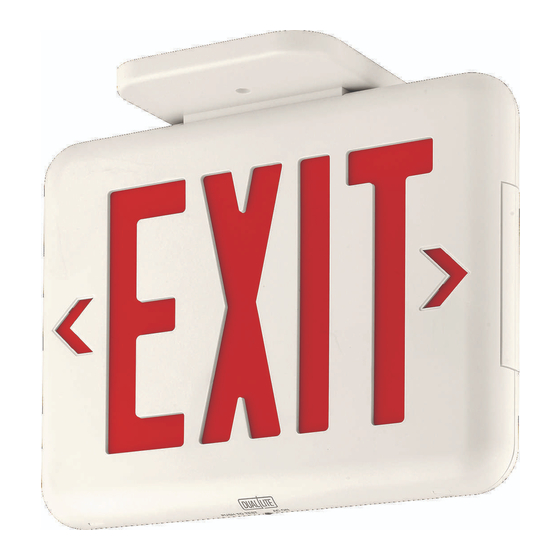

Thermoplastic LED Exit Sign
