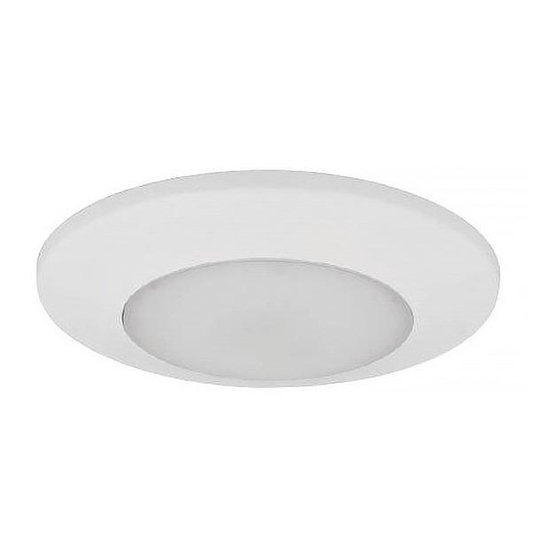

Hubbell Prescolite LBSLEDA Instruction Sheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by servicing or relamping turn off power at fuse or circuit breaker All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
WARNING – Follow the Instructions carefully to assure full compliance with local, state, and NEC requirements. If there are
any questions, contact a Qualified Electrical Contractor.
WARNING – Risk of fire or electrical shock. Consult a Qualified Electrician to ensure correct branch circuit conductor.
Install this fixture only in Junction Boxes or Recessed Housings per the dimensions shown. Do not make or alter any holes
in an enclosure of wiring or electrical components during kit installation. Suitable for use with luminaire with a minimum of
75 C° supply conductors.
WARNING – To prevent wiring damage or abrasion, do not expose wiring to edges sheet metal or sharp objects.
NOTE – This product is designed to operate with most standard incandescent or low voltage electronic dimmer switches.
Results may vary. For recommended dimmers, consult product spec sheet or go to www.prescolite.com or call Technical
Support 1-888-PRS-4TEC.
NOTE – SUITABLE FOR WET LOCATIONS IN COVERED CEILINGS
WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects and/or other p
reproductive harm. Thoroughly wash your hands after installing, handling, cleaning, or otherwise touching this product.
NOTE – Always install within ambient temperatures specified on the product specification sheet. 5 year warranty.
See www.prescolite.com for details.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
IMPORTANT! For recessed housing installation, prior to retrofit installation, the housing must be properly installed and flush
with the ceiling. It may be necessary to detach the socket from a mounting bracket inside the housing. Remove and discard the
bracket to allow adequate clearance.

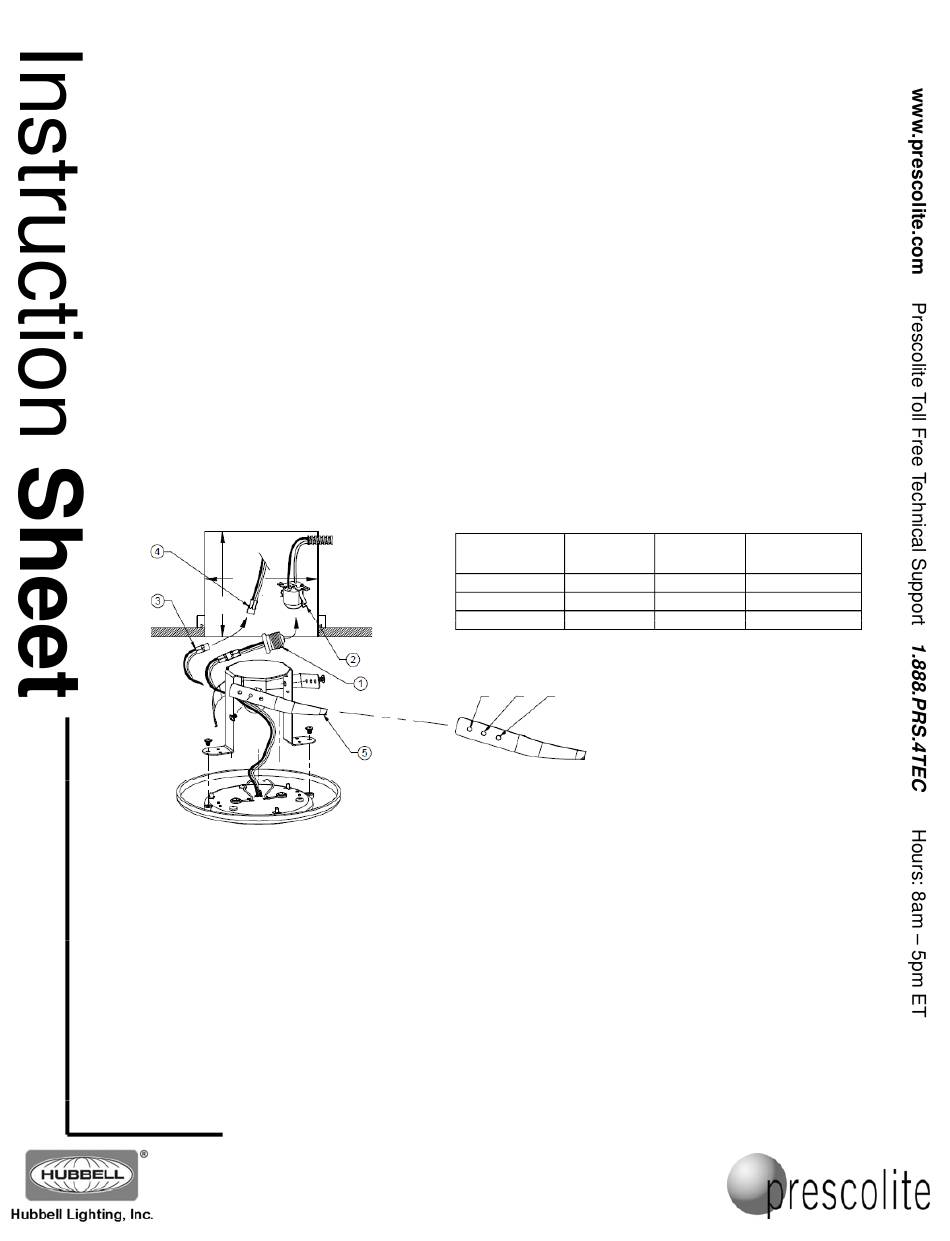

1.

Connect Trim to Power

For retrofit: Screw socket adapter (1) into socket (2) as shown. For junction box mounting always attach the
ground wire to the ground screw.
For new construction with dedicated LED housing: Remove socket adapter assembly (1) and discard. Connect trim
connector (3) directly to mating housing connector (4) as shown.
2. Install recessed housing mounting hardware to fixture as shown. Be sure to install spring clips (5) in correct holes
according to recessed housing diameter.
3. Insert Trim into Recessed Housing: Guide socket and wiring toward the housing opening . Push trim up into
recessed housing while twisting trim counterclockwise 1/4 turn, firmly engaging the spring clips (5) until flush with ceiling.
4. To remove the trim assembly in a housing, twist trim assembly counterclockwise 1/4 turn while pulling down.
701 Millennium Blvd, Greenville, SC 29607
With representatives office in principal cities throughout North America.
Copyright 2014, 08-06-14 revision, All Rights Reserved
RECESSED HSG MINIMUM
DIAMETER DIAMETER
4 INCH Ø 3 7/8"
5 INCH Ø 4 7/8"
6 INCH Ø 6 INCH Ø 5 7/8 5 7/8"
Install screw into correct mounting hole
for appropriate recessed housing size.
6" 5" 4"
Part No.....................93058705
,
MAXIMUM MINIMUM HEIGHT
DIAMETER CLEARANCE
4 1/4" 3 1/2"
5 1/4" 3 1/2"
7 1/8 7 1/8" 3 1/2 3 1/2"
