Hubbell DUAL LITE PG Series Manual

TROUBLESHOOTING
AC-On Light does not illuminate
• Check AC wiring connections
Emergency LEDs do not work
• Battery is shipped disconnected. Connect leads from battery to charger PCB and charge
before testing.
• Make sure connections to charger board are properly seated.
• Check wiring connections.
Maintenance
Units should be tested and maintained in accordance with National Electrical Code and NFPA 101
Life Safety Code requirements. The NFPA 101 Life Safety Code requires emergency lighting units be
tested for a minimum of 30 seconds once a month and 90 minutes once a year.
The automatic monthly tests of the SPECTRON units satisfy this requirement. The required annual
test can be initiated manually with the test switch, as required by the safety code.
LED REPLACEMENT
Contact factory.
RECYCLING INFORMATION
All steel, aluminum and thermoplastic parts are recyclable.
All cartons contain recycled materials.
Please recycle responsibly.
NOTICE:
Units contain rechargeable batteries which must be recycled
or disposed of properly.
Use CAUTION when handling batteries.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
©
93011428 G 4/09
SERVICE
EC-090330001
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
READ AND FOLLOW ALL SAFETY
1. Do not let power supply cords touch hot surfaces.
2. Do not mount near gas or electric heaters.
3. Equipment should be mounted in locations and at heights where it will not readily be subject
to tampering by unauthorized personnel.
4. The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
5. Do not use this equipment for other than its intended purpose.
6. Servicing of this equipment should be performed by qualified service personnel.
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
WARNING – This product contains chemicals known to the State of California to cause cancer, birth
defects and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning,
or otherwise touching this product.
93021938
93022005
93022006
93022007
93022008

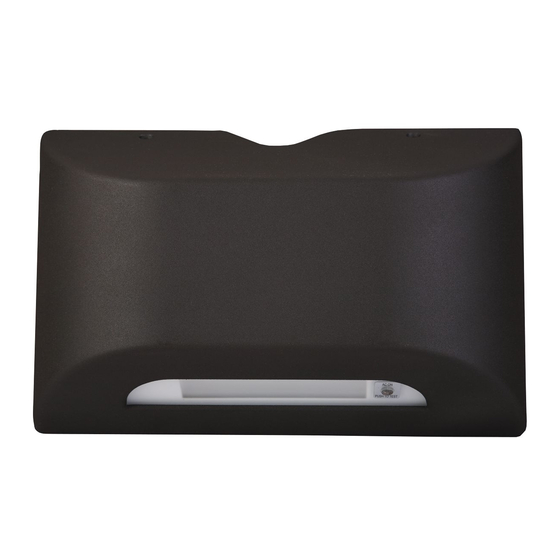

LED Emergency Lighitng Unit For Indoor
Installation, Operation and Service Instructions
always be followed including the following.
INSTRUCTIONS
INSTALLER:
PG Series
Or Outdoor Application
93022005
