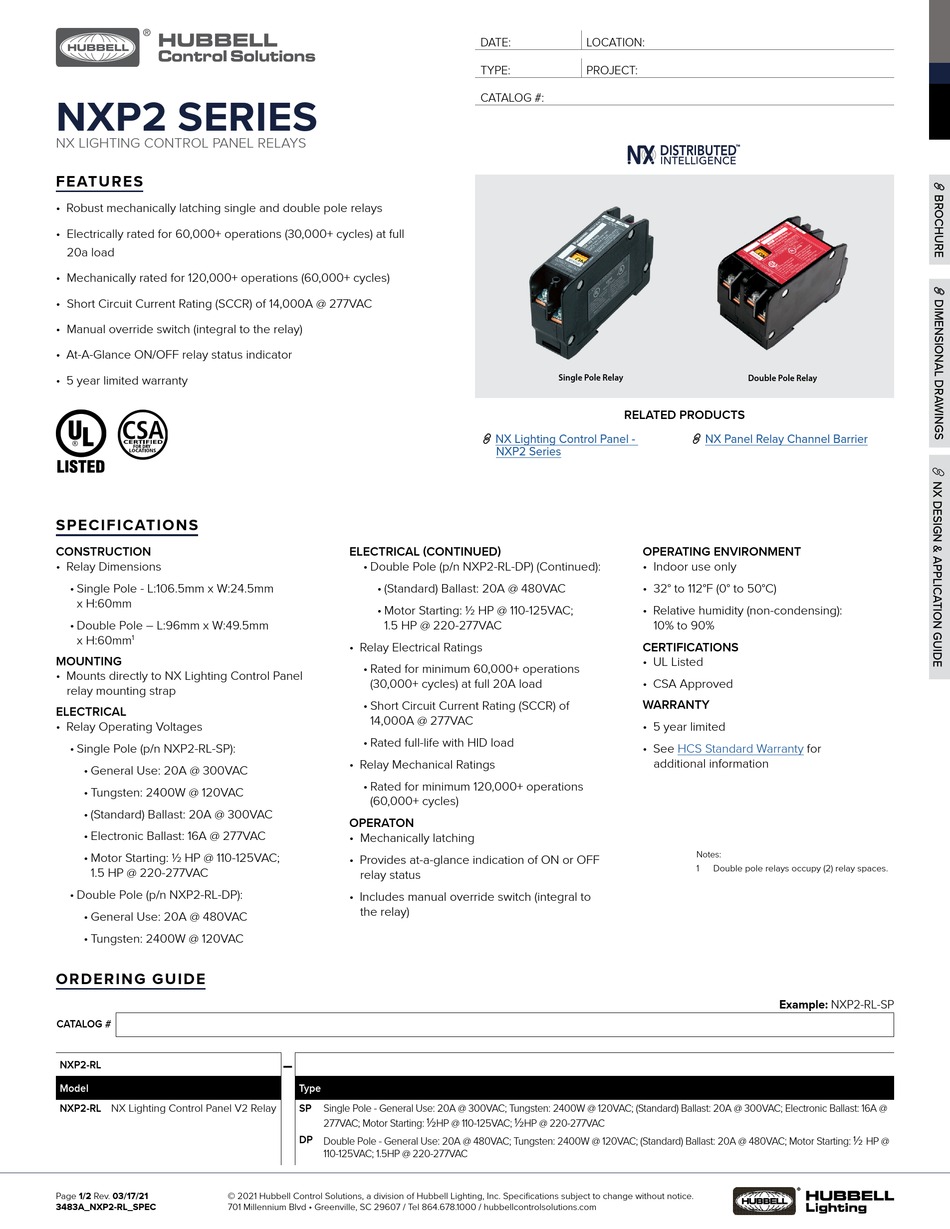

NXP2 SERIES
NX LIGHTING CONTROL PANEL RELAYS
F EATU R ES
• Robust mechanically latching single and double pole relays
• Electrically rated for 60,000+ operations (30,000+ cycles) at full
20a load
• Mechanically rated for 120,000+ operations (60,000+ cycles)
• Short Circuit Current Rating (SCCR) of 14,000A @ 277VAC
• Manual override switch (integral to the relay)
• At-A-Glance ON/OFF relay status indicator
• 5 year limited warranty
SPECIFICATIO NS

CONSTRUCTION

• Relay Dimensions
• Single Pole - L:106.5mm x W:24.5mm
x H:60mm
• Double Pole – L:96mm x W:49.5mm
x H:60mm
1

MOUNTING

• Mounts directly to NX Lighting Control Panel
relay mounting strap

ELECTRICAL

• Relay Operating Voltages
• Single Pole (p/n NXP2-RL-SP):
• General Use: 20A @ 300VAC
• Tungsten: 2400W @ 120VAC
• (Standard) Ballast: 20A @ 300VAC
• Electronic Ballast: 16A @ 277VAC
• Motor Starting: ½ HP @ 110-125VAC;
1.5 HP @ 220-277VAC
• Double Pole (p/n NXP2-RL-DP):
• General Use: 20A @ 480VAC
• Tungsten: 2400W @ 120VAC
ORDER ING GUI DE
CATALOG #
NXP2-RL
Model
NXP2-RL NX Lighting Control Panel V2 Relay
Page 1/2 Rev. 03/17/21 © 2021 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. Specifications subject to change without notice.
3483A_NXP2-RL_SPEC 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / hubbellcontrolsolutions.com
ELECTRICAL (CONTINUED)
• Double Pole (p/n NXP2-RL-DP) (Continued):
• (Standard) Ballast: 20A @ 480VAC
• Motor Starting: ½ HP @ 110-125VAC;
1.5 HP @ 220-277VAC
• Relay Electrical Ratings
• Rated for minimum 60,000+ operations
(30,000+ cycles) at full 20A load
• Short Circuit Current Rating (SCCR) of
14,000A @ 277VAC
• Rated full-life with HID load
• Relay Mechanical Ratings
• Rated for minimum 120,000+ operations
(60,000+ cycles)
OPERATON
• Mechanically latching
• Provides at-a-glance indication of ON or OFF
relay status
• Includes manual override switch (integral to
the relay)
–
Type
SP Single Pole - General Use: 20A @ 300VAC; Tungsten: 2400W @ 120VAC; (Standard) Ballast: 20A @ 300VAC; Electronic Ballast: 16A @
½
277VAC; Motor Starting: HP @ 110-125VAC;
DP Double Pole - General Use: 20A @ 480VAC; Tungsten: 2400W @ 120VAC; (Standard) Ballast: 20A @ 480VAC; Motor Starting:
110-125VAC; 1.5HP @ 220-277VAC
DATE: LOCATION:
TYPE: PROJECT:
CATALOG #:

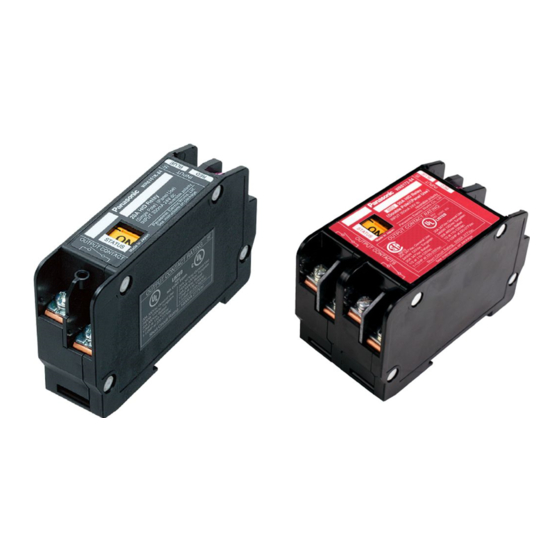

Single Pole Relay
RELATED PRODUCTS
NX Lighting Control Panel -
 
NXP2 Series

OPERATING ENVIRONMENT

• Indoor use only
• 32° to 112°F (0° to 50°C)
• Relative humidity (non-condensing):
10% to 90%

CERTIFICATIONS

• UL Listed
• CSA Approved

WARRANTY

• 5 year limited
• See
additional information
½
HP @ 220-277VAC
™
Double Pole Relay
NX Panel Relay Channel Barrier
 
HCS Standard Warranty for
Notes:
1 Double pole relays occupy (2) relay spaces.
Example: NXP2-RL-SP
