WARNING
DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION
SAFETY PRECAUTIONS
Before starting the installation, disconnect the power by turning off the
circuit breaker. Turning the power off by using the light switch is not
sufficient to prevent electrical shock.
Read all warnings and information on carton(s) and product(s).
This fixture is intended for wall mount installation over a 4 junction box.
This fixture must be wired in accordance with the current national Electric Code
and applicable local codes and ordinances. Proper grounding is required to
ensure personal safe.
A qualified electrician must perform all wiring. Failure to read and follow
these instructions could result in serious injury or death.
MOUNTING
Box Mounting:
1. Place supply wires through provided mounting plate with gasket and attach to
junction box.
2. Remove refractor, and then remove reflector plate from the fixture.
3. Remove closeup plug at the bottom.
4. Feed supply leads to the fixture and install the nut.
5. Connect fixture leads to supply leads with wire nuts.
6. Replace reflector plate and install lamp. Reinstall refractor.
Conduit Mounting:
1. Remove refractor and the reflector plate from the fixture
2. Remove closeup plug in housing for desired conduit entrance.
3. Connect fixture leads to supply leads with wire nuts.
4. Replace reflector plate and install lamp. Reinstall refractor.
Hubbell Canada LP, Lighting Division
870 Brock Road South, Pickering, ON, L1W 1Z8
Tel. (905) 8391138

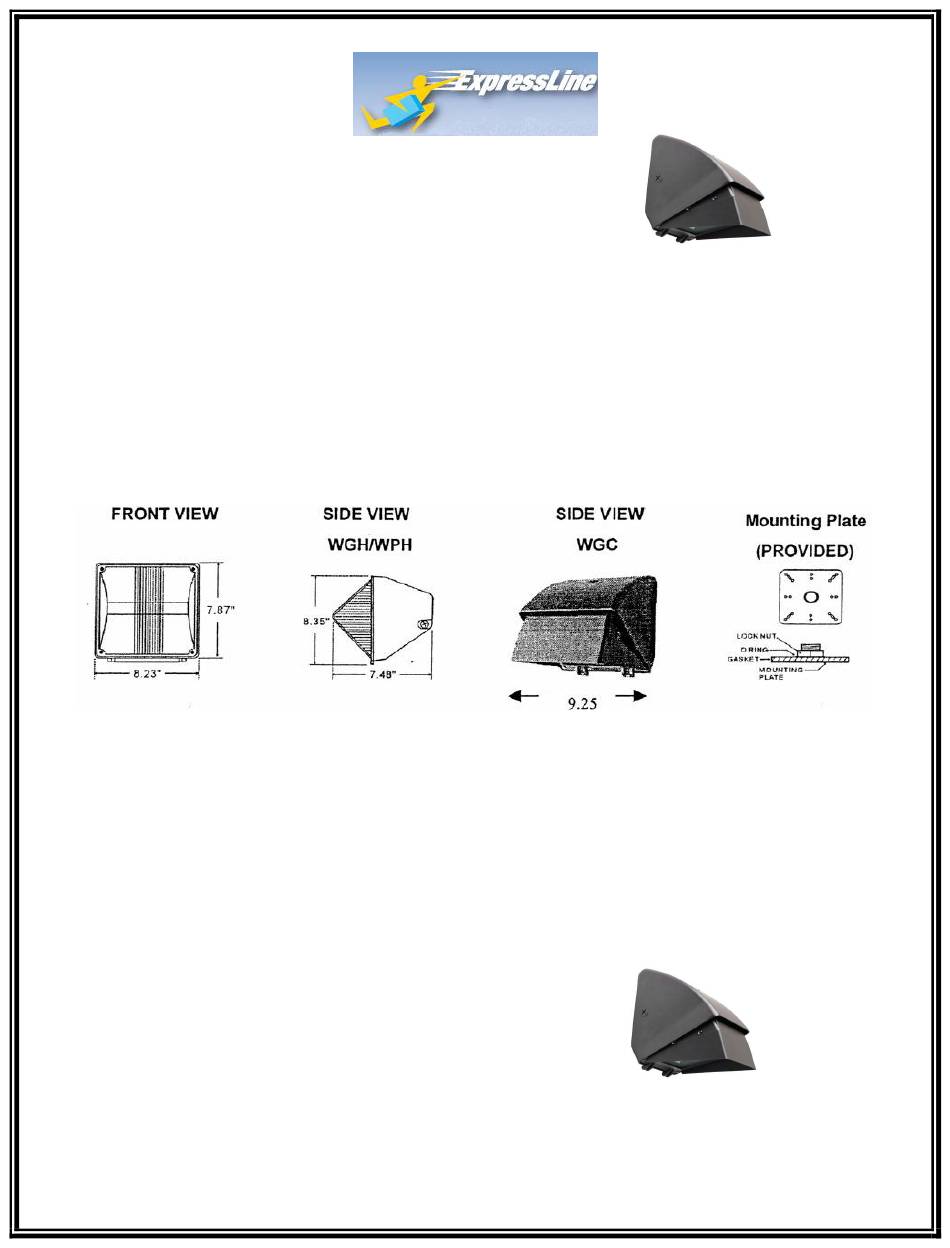

INSTALLATION INSTRUCTIONS
High Pressure Sodium & Metal
Halide Wall Pack
WGH/WPH/WGC Series
INSTALLATION INSTRUCTIONS
High Pressure Sodium & Metal
Halide Wall Pack
WGH/WPH/WGC Series
