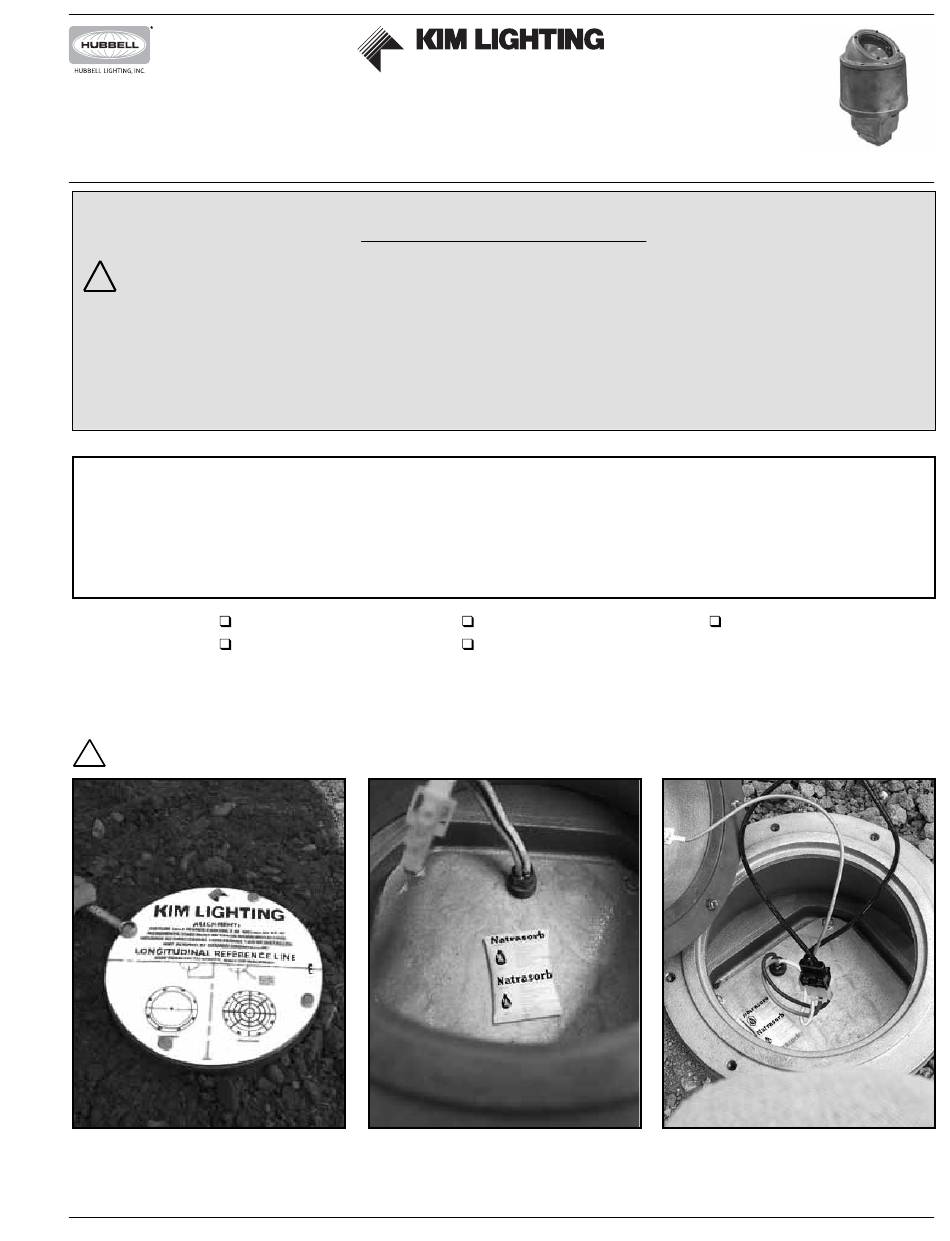

LTV59 / 759 - Lens Reflector Installation Instructions
Lightvault
®
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury. Lighted lamp is HOT! Do not touch hot lens, guard,
or enclosure. All work should be done by a qualified electrician.
MAINTENANCE: A regularly scheduled maintenance program must be established to keep fixtures clean. Dried
leaves and paper can burn if allowed to accumulate on high temperature lenses. A buildup of dirt and other
material on the lens may cause excessive temperatures within the fixture. DO NOT operate luminaire with
missing or damaged lens. KEEP THIS SHEET FOR FUTURE REFERENCE.
IMPORTANT: Condensation inside the fixture is a common occurrence due to the expanding and condensing of the
trapped air inside the fixture as it is cycled on and off. When the lamp is energized during the evening hours, moisture
on the inside of lens will burn off as fixture heats up. It will reappear after power is shut off and the inside air condenses
during cooling. A large majority of this moisture can be avoided by following the installation guidelines as described in
the housing installation instructions. Always relamp fixture during low humidy periods. Before closing fixture, remove
dessicant from zip lock bag and place in reflector compartment. Energize the lamp for approximately five (5) minutes to
dry air inside fixture. Install lens and lens frame as described below.
Tools Required:
J" Hex Socket Wrench
Phillips Screwdriver
LENS FRAME / REFLECTOR INSTALLATION INSTRUCTIONS:
Make certain electrical supply is OFF before starting fixture installation.
!
1. Remove debris shield from hous-
ing & discard. (Shield is aluminum,
please recycle)
Revised 7/16/10
ECN 100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
IMPORTANT SAFETY INSTRUCTIONS
F" Hex Socket Wrench
K" Open End Wrench
2. Place dessicant package inside
housing before connecting quick
disconnect.
Status 5
LTV59 / LTV759
Silicone Grease
3. Connect housing quick-disconnect
to reflector assembly quick-
disconnect.
Part No. 95648
