Hubbell Dual-Lite EV4D-02WAL Series Installation, Operation And Service Instructions

2
Installing the Unit: Final Assembly
REV DATE
A 02.JUL.2018 REL TO PROD., EC 17103003
1. Align housing slots over tabs on backplate
2. Pivot housing and snap closed
1
B
2
93099693
A Maintenance
This emergency lighting unit should be tested and maintained in accordance with National Electrical Code and NFPA
CRITICAL DIMENSIONS
101 Life Safety Code requirements. It is recommended that emergency light fixtures be tested for 30 seconds once a
UNSPECIFED TOLERANCES: INCHES This document contains confidential and proprietary information of Dual Lite.
Receipt or possession of this document does not convey any rights to
X.X= 0.02 X.XX= 0.01 X.XXX= 0.005
u u u
reproduce or disclose its contents, or to make, use , or sell anything it may
FRACTIONS= 1/32 ANGULAR TOLERANCE= .5
month and for 90 minutes once a year. u u v disclose. Reproduction, disclosure, or use of the document or its contents,
without the specific written authorization of Dual Lite, may violate the
DRAWN:
DIMENSIONS IN INCHES
intellectual property rights of Dual Lite.
JEB 7/2/2018
DIMENSIONS IN [ ] IN MM ILL-INST EV UNIT -02WAL INST4
CHECKED BY:
CONFORMS TO ASME Y14.5M
JEB 07/02/18
DO NOT SCALE PRINT
Taking A Unit Out Of Service
MATERIAL:
ENGINEERING:
---
JEB 07/02/18
If a unit is to be deliberately taken out of service for an extended period, the battery lead connector should be SCALE SIZE DRAWING NO.
CATALOG NO.
A
EC 171030003 1:1
THIRD ANGLE PROJECTION
disconnected from the
2
charger circuit board and insulated so that the battery will go into storage in a fully charged condition.
Replacing The Battery
1. De-energize the AC power.
2. Disengage the housing cover from the backplate.
3. Disconnect the battery leads from the charger circuit board.
4. Remove the battery from the clips inside the cover.
5. Replace with a new battery (see unit model label for correct part number) and reconnect leads.
6. Reassemble cover to backplate.
Replacing LED Lamps
The LED lamps inside the unit are not replaceable or field serviceable. Please see dual-lite.com for further
assistance.
Troubleshooting
Emergency circuit does not work
• Batteries are shipped uncharged and disconnected. Connect battery leads and charge 24 hours before testing.
• Make sure the charger board and test button/light pipe are properly seated and aligned.
• Check wiring connections.
All steel, aluminum and thermoplastic parts are recyclable.
NOTICE: Emergency units contain rechargeable batteries which
must be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright © Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
INSTALLATION
1
Aim both lamp positions equally based on wall
RECORD DESN CHCK
JEB JEB
mounting height. Do not press on the lenses.
Mounting Height Lamp Position
B
B
7.5' 1
8' 2
8.5' 3
9' 4
9.5' 5
10' 6
Note: Adjust lamp-head from
1
Position 1 flush with housing 2
3
4
5
6
THIS ILLUSTRATION IS
USED ON THE FOLLOWING
Service / Maintenance
INSTRUCTION SHEETS
93098898_A
A
A
CRITICAL DIMENSIONS
UNSPECIFED TOLERANCES:
X.X=
FRACTIONS=
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
FINISH: PART NO.
CONFORMS TO ASME Y14.5M
--- 93099693 DO NOT SCALE PRINT
REV.
SHT 1
A
93099693
1 SHTS
1
THIRD ANGLE PROJECTION
RECYCLING INFORMATION
93098898_C 10/18
2 1
REV DATE RECORD
A 02.JUL.2018 REL TO PROD., EC 17103003
IMPORTANT SAFEGUARDS
THIS ILLUSTRATION IS
USED ON THE FOLLOWING
INSTRUCTION SHEETS
930998898_A
READ AND FOLLOW ALL SAFETY
This document contains confidential and proprietary information of Dual Lite.
INCHES
Receipt or possession of this document does not convey any rights to
0.02 X.XX= 0.01 X.XXX= 0.005
u u u reproduce or disclose its contents, or to make, use , or sell anything it may
1/32 ANGULAR TOLERANCE= .5
disclose. Reproduction, disclosure, or use of the document or its contents,
u u v
without the specific written authorization of Dual Lite, may violate the
DRAWN:
intellectual property rights of Dual Lite.
JEB 7/2/2018
ILL-INST EV UNIT -02WAL INST3
CHECKED BY:
JEB 07/02/18
MATERIAL: FINISH: PART NO.
ENGINEERING:
--- ---
JEB 07/02/18
SCALE SIZE DRAWING NO. REV.
CATALOG NO. SHT 1
A A
93099673
EC 171030003 1:1 1 SHTS
2 1
1. Do not use outdoors.
2. Do not let power supply cords touch hot surfaces.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subject
to tampering by unauthorized personnel.
5. The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
6. Do not use this equipment for other than its intended purpose.
7. Servicing of this equipment should be performed by qualified service personnel.
8. Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency lighting units once a month for a
minimum of 30 seconds, and once a year for a minimum of 90 minutes.
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
Emergency Lighting Equipment For Use in Damp Locations
Damp location listed units are suitable for installation in:
1. Interior locations subject to modreate degrees of moisture, such as some basements, some barns, some cold storage
warehouses, and the like.
2. Partially protected locations under canopies, marquees, roofed open porches and the like.
EV4D-02WAL Series
DESN CHCK
JEB JEB
Standard and Spectron
Installation, Opperation, and Service Instructions
B
When using electrical equipment, basic safety precautions should
A always be followed including the following.
INSTRUCTIONS
93099673
INSTALLER:

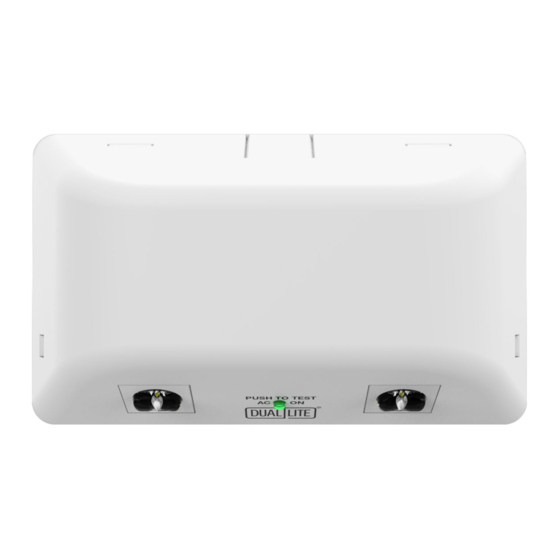

Twin-Head LED Emergency Lighting Unit
Equipped Models
®
93034800
