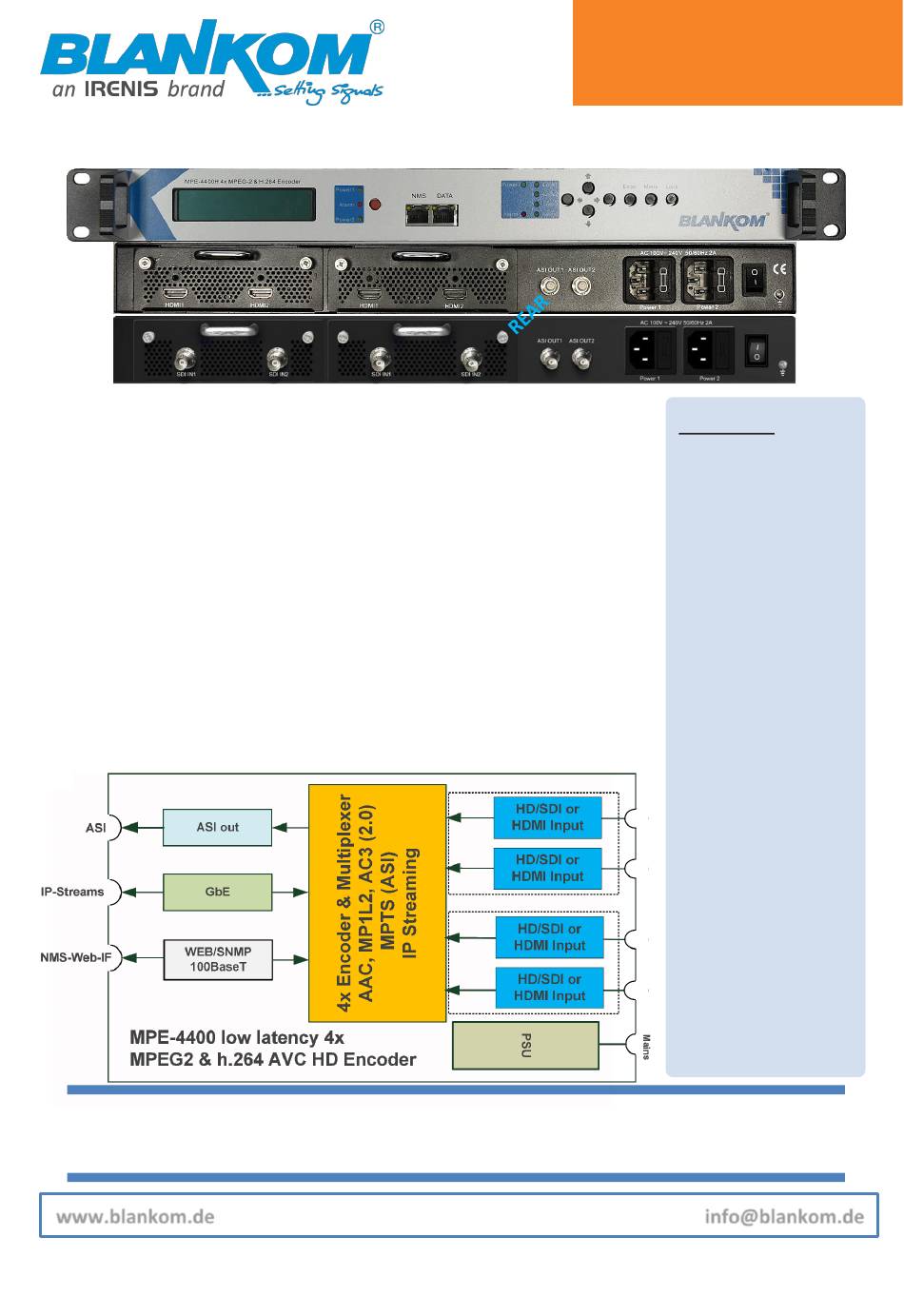

MPEG2 & h.264 AVC Broadcast Encoder
Features:
MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
1080p,720P, 480i, 576i video resolution and downscaling
Low latency
Modules can be mixed 2/2
MPEG1 Layer II, HE-AAC (v1 & v2), LC-AAC and DD AC3 2.0 audio
encoding and adjustment
Support Volume normalization (for AC3)
Dual parallel ASI output and IP as MPTS and 4 SPTS, UDP & RTP
LCD / Keypad control and Web based management by Ethernet port
Dual power supply
VBR/CBR encoding rate control mode
PSI/SI editing and inserting
IP Zero packet filter (PID 8191dec)
www.blankom.de
HDMI-Version
SDI-Version
4x HD-SDI or 4x HDMI (or 2x2)
ASI & IP TS outputs
MPE-4400H/S
MPE-4400:
MPEG-2/H.264 SD/HD
4x Encoder is a
broadcasting audio &
video encoding device
with powerful
functionality.
Equipped with 2
Modules 2x 2x HD-SDI
or 2x 2x HDMI or mix
of.
Multiple audio and
video encoding
formats are available
to meet your flexible
and various
requirements.
AC3 (2.0) can be
processed as well.
The encoded program
will finally output in a
DVB conform TS
through 2 parallel ASI
and 1 IP port: MPTS &
4 SPTS.
info@blankom.de
Advertisement
Table of Contents
Related Manuals for Irenis Blankom MPE-4400H
Summary of Contents for Irenis Blankom MPE-4400H
- Page 1 MPE-4400H/S MPEG2 & h.264 AVC Broadcast Encoder HDMI-Version SDI-Version Features: MPE-4400: MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding 1080p,720P, 480i, 576i video resolution and downscaling MPEG-2/H.264 SD/HD Low latency 4x Encoder is a broadcasting audio & ...
-
Page 2: Technical Data
DVB-S2/T2 Modulators: HDM-Series IPTV distribution in corporate/broadcast or even Hospitality Networks (STB based or directly to TV’s) IRENIS GmbH – Haupstrasse 29 - D-31171 Nordstemmen / Germany - info@blankom.de - www.blankom.de Technical changes are subject to change w/o further notice... -
Page 3: Front And Rear-Connections
MPE-4400 Front and rear-connections Login: The display always shows the operating mode and the device can be almost configured by the Keypad and the Display. Because the unit comes with 2 Power supplies, the ALARM LED (RED) will switch ON if one of these are interrupted. The Red Button just right of the ALARM LED can be used to switch ON/OFF an alarm signal beeper. - Page 4 MPE-4400 REAR: Almost Simple: 2x2 HDMI Inputs numbered 1 and 2 in each module, The left module is No.1… ASI 1 and 2 outputs for the multiplexed TS, 2x PSU-IEC connectors 100-230VAC 50/60Hz. Fuse included in the connectors, Power ON/FF button. Ground. The 2 modules can be removed/exchanged but we recommend to not do this in HOT running mode.
- Page 5 MPE-4400 The status Window shows actual device information… which might be importand when contacting support. Status shows The Input connected and bitrates (here only Module 1, HDMI 1 ist active). We recommend to always use the Backup/Load (External file based Ex-Import) and Safe/Restore (Locally) using after you finished your coinfiguration (even in steps) –...
- Page 6 MPE-4400 Almost self-explaining ;-)… General: ASI Out / MPTS output Bitrates are limited to max. 99Mb/s For ASI out, you shouzld know what Burst mode is and if your ASI connection supports that. We also assume that the technician who handles this unit has a proper eductaion and understanding in DVB, Tables and Video /HDMI/SDI Knowledge.
- Page 7 MPE-4400 VIRTUAL – CHANNEL – TABLE is nearly a similar info as LCN in DVB NIT: Logical Channel Number (v1 supported) assignment in the NIT (Network Informatioin table) -> And that’s the DVB-tool you can use and setup here if needed when adding these to an existing network: Close VCT and ADD pressing will open a POPUP Window´.
- Page 8 MPE-4400 Specifications are subject to change without notice. - 8 - BLANKOM MPE 4400 EN 2020 V1.1...
- Page 9 MPE-4400 Most of them are self-explaining but be aware: p50 / p60 inputs are taken, but the encoder can only do FHD outputs in max. 1080 with Interlaced modes: So the output encoded streeams will be max 1920x1080i50 (or i60)). Downscaling is possible…...
- Page 10 MPE-4400 BTW: Pressing help sometimes helps: Specifications are subject to change without notice. - 10 - BLANKOM MPE 4400 EN 2020 V1.1...
- Page 11 MPE-4400 RECOMMENDATIONS: As a MULTICAST CAPABLE SWITCH we recommend is the HP (ARUVA) 2530 24G or 48G. (For Floor switches we have an own branded one and support IGMP as well) IGMP should be set to ON in the port configs.
-
Page 12: General Notes About Streams
MPE-4400 GENERAL NOTES ABOUT STREAMS: MULTICAST STREAMS: Multicast Address Ranges: We recommend, that the addressing of your Multicast streams should be in conjunction with this listings to avoid conflicts with other network equipment or protocols. https://www.iana.org/assignments/multicast-addresses/multicast-addresses.xhtml One small part from this: IPv4 Multicast Address Space Registry Last Updated 2018-01-05... -
Page 13: Registered Port
MPE-4400 fail. For more details see http://www.iana.org/assignments/multicast-addresses/multicast- addresses.xml Choosing a UDP port number for multicast streams is also important. Even if you use a different multicast IP for each of your streams, we strongly recommend using different UDP port numbers as well. This is because a server and all software running on the server receives ALL multicast traffic on an open port and extra processing is required to filter out the required traffic. -
Page 14: Packet Structure
MPE-4400 PACKET STRUCTURE UDP Header Offsets Octet Octet 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Source port Destination port Length... -
Page 15: Troubleshooting
MPE-4400 any port (even, not odd > 1024) Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. We guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before shipping out from factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us. -
Page 16: Important Notes
(such as translation, transformation or adaptation) without the written permission from Blankom / IRENIS GmbH. IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change. - Page 17 MPE-4400 Note: IPv4 global scope sessions use multicast addresses in the range 224.2.128.0 - 224.2.255.255 with SAP Announcements being sent to 224.2.127.254 Port 9875 (note that 224.2.127.255 is used by the obsolete SAPv0 and MUST NOT be used). IPv4 administrative scope sessions using administratively scoped IP multicast. The multicast address to be used for announcements is the highest multicast address in the relevant administrative scope zone.
-
Page 18: Product Disposal
MPE-4400 We assume, that the user is familiar with all abbreviations mentioned in this manual. Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß... - Page 19 MPE-4400 ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.
- Page 20 MPE-4400 ANNEX ChannelPlan CATV channel plan: Kanal Kanal- Mitten- Bild- Ton- Kanal Bereich Bereich Kanal- Mitten- Bild- Ton- frequenzen frequenz träger träger frequenzen frequenz träger träger Channel Middle Picture Sound Channel Middle Picture Sound Bands Channel Bands Channel frequency frequency carrier carrier frequency...
- Page 21 MPE-4400 Elektronische Geräte gehören nicht in den Hausmüll, sondern müssen - gemäß Richtlinie 2002/96/EG DES EUROPÄISCHEN PARLAMENTS UND DES RATES vom 27. Januar 2003 über Elektro- und Elektronik-Altgeräte fachgerecht entsorgt werden. Bitte geben Sie dieses Gerät am Ende seiner Verwendung zur Entsorgung an den dafür vorgesehenen öffentlichen Sammelstellen ab.
-
Page 22: Zur Beachtung
MPE-4400 Wir empfehlen die Benutzung von Gleitschienen bevor der BMS im 19 '' Schrank installiert und angeschlossen wird. We recommend using and installing 19'' rails in your rack before you mount the BMS and install the F-connectors and cables. Zur Beachtung / Important notes: ... - Page 23 MPE-4400 Annex: Table for Conversions of Power @ 75Ω dBmV dBµV 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75 4.47 2.7E-04 -34.75 5.01 3.3E-04 -33.75 5.62 4.2E-04 -32.75 6.31 5.3E-04 -31.75 7.08...
- Page 24 84.128 Contact: IRENIS GmbH Hauptstr. 29 31171 Nordstemmen- Germany Phone: +49 5069 4809781 IRENIS technical hotline VoIP +49 5069 4399 -860 or -8601 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de Specifications are subject to change without notice.
