Irenis BLANKOM MPE-2100 Quick Start Manual

MPEG2 AV SD Broadcast Encoder
Features:
 MPEG-2 Video encoding, advanced Video pre-
processing algorithms
 MPEG1Layer2 Audio, single- dual channel, Stereo&
Joint Stereo
 Composite, S-Video analogue Video input
 SD-SDI digital Video input
 Balanced and unbalanced analogue Audio inputs
 AES/EBU, SD-SDI digital Audio input
 2x ASI input for re-mux
 PAL, NTSC SD Video formats
 TS over UDP unicast/multicast output
 Dual ASI output
 1x 100BaseT (Fast Ethernet) & 1x 1000BaseT Gigabit
Ethernet Outputs DATA streaming ports
 2x encoded streams output on this 2 ports independent
 VBR or CBR modes – Zero Packets PID 8191dec
 PID-forwarding (bypass) from ASI –IN1&2 to IP out
SDI, SVideo, CVBS, sep. Stereo Audio Inputs,
balanced /unbalanced XLR, ...
ASI & IP TS outputs Multiplexing with
2x ASI-Input sources to a common TS output
www.blankom.de

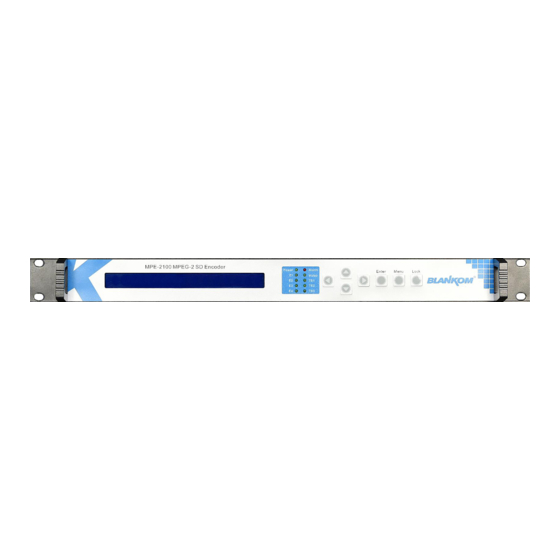

MPE-2100
MPE-2100:
This MPEG-2 SD
Encoder is a
broadcasting Audio &
Video encoding device
with powerful
functionality.
It supports a wide
range of analogue and
digital Audio and Video
inputs such as CVBS, S-
Video and SDI, and
Audio inputs as
balanced and
unbalanced analogue
input interfaces as well
as stereo analog Audio
input interface (XLR)
and digital Audio input
interfaces (AES/EBU).
Its high compatibility
and excellent encoding
quality makes this
device widely used in
digital broadcasting
system.
The encoded program
will finally output in a
DVB conform TS
through 2 parallel ASI
and 1 IP port: MPTS & 2
SPTS.
