MPEG-2 IP Encoder
User's Manual
Software: 2.12
Hardware: 5.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPE-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Irenis MPE-2000

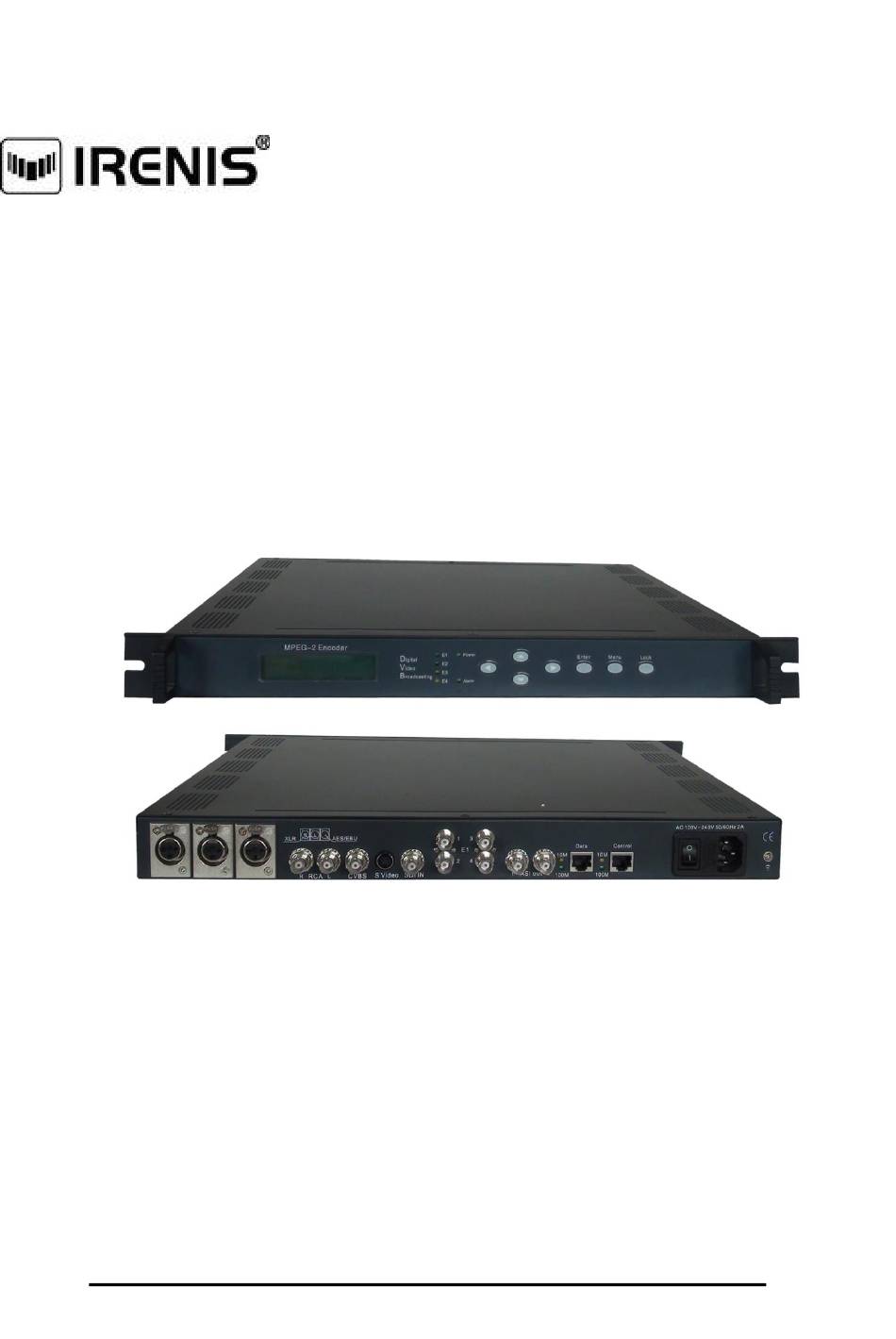

  • Page 1 MPEG-2 IP Encoder User’s Manual Software: 2.12 Hardware: 5.5...
  • Page 2: Table Of Contents

    DIRECTORY CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 OUTLINE ..........................1 1.2 FEATURES ..........................1 1.3 SPECIFICATIONS ......................... 1 1.4 PRINCIPLE CHART ......................3 1.5 APPEARANCE AND ILLUSTRATION: ................3 CHAPTER 2 INSTALLATION GUIDE ....................5 2.1 ACQUISITION CHECK ......................5 2.2 INSTALLATION PREPARATION ..................
  • Page 3: Chapter 1 Product Outline

    Chapter 1 Product Outline 1.1 Outline This MPEG-2 Encoder( with SDI) is a professional audio &video encoding device with powerful function. This device can support a variety of analog and digital audio and video input interface, say, the video input interfaces include the CVBS, S-Video and SDI , and audio input interfaces include the balanced and unbalanced analog input interface, the analog audio input interface, the XLR and digital audio input interfaces (AES/EBU).
  • Page 4 Analog stereo audio(unbalanced), BNC interface AES / EBU digital audio, XLR interface SD-SDI embedded audio 720×480_60i, 720×576_50i(D1) 544×480_60i, 544×576_50i(3/4D1) Resolution 352×480_60i, 352×576_50i(HD1) 480×480_60i, 480×576_50i(2/3D1) Encoding MPEG-2 MP@ML(4:2:0) Video Bit-rate 0.8Mbps~20Mbps Rate Control CBR/VBR GOP Structure IBBP Advanced De-interlacing, noise reduction, sharpening Pretreatment Encoding MPEG-1 Layer 2...
  • Page 5: Principle Chart

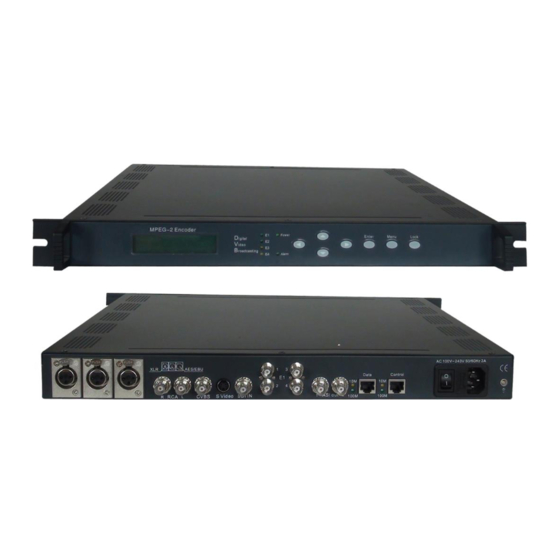

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 1.4 Principle Chart Video Audio AES/EBU Interface Interface E1 Output ASI Output FPGA FPGA Data Encoding Keyboard 1.5 Appearance and Illustration: Front panel illustration: Indicator area: All the indicators will light on when the encoder works at current mode.
  • Page 6 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Enter key Menu key Lock key Rear panel illustration: Digital audio input interface: AES/EBU, XLR Unbalanced audio input interface Unbalanced audio input interface CVBS input interface S-Video input interface SDI in interface AES/EBU, XLR connection illustration...
  • Page 7: Chapter 2 Installation Guide

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  MPEG-2 Encoder ...
  • Page 8 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 2.2.2 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, Machine Hall the distance between 2 rows of machine frames should be Space 1.2~1.5m and the distance against wall should be no less than 0.8m.
  • Page 9: Wire's Connection

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000  It is prohibited to use any other device as part of grounding electric circuit  The area of the conduction between grounding wire and device’s frame should be no less than 25mm 2.2.4 Frame Grounding All the machine frames should be connected with protective copper strip.
  • Page 10: Signal Wire Connection

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 2.4 Signal Wire Connection The signal connections include the connection of input signal cable and the connection of output signal cable. The input audio input interfaces include analog input interfaces (XLR/RCA) and digital input interfaces (AES/EBU), and the input video interfaces include CVBS, S-Video and SDI.
  • Page 11 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Analog and digital audio cable illustration: S-Video cable illustration: 2.4.2 The Connection Illustration: Unbalanced audio and CVBS video input connection: ASI output connection: 9 /34...
  • Page 12 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 SDI Input connection: S-Video input connection: Analog and digital audio connection: 10 /34...
  • Page 13: Chapter 3 Operation

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Chapter 3 Operation The encoder’s front panel is user operating interface. Before operating, user can decide whether directly use the default setting or customize the input and output parameters setting. The detail operations go as follows: Keyboard Function Description: MENU: Canceling presently entered value, resuming previous setting;...
  • Page 14: General Setting

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 3.2 General Setting Users can enter the main editing interfaces by pressing the lock key, and the LCD will display the following page: ►1 Audio Setting 2 Video Setting ►2 Video Setting 3 Output Setting ►3 Output Setting...
  • Page 15 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 In the above interface, users can press the enter key to modify the audio input formats, and the LCD will display the following page, and the option with bracket is the current work status. Users can press the up/down key to select the audio input formats.
  • Page 16 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 1.3 Audio [ 48 kHz ] 44.1 kHz 1.3 Audio Fs [ 32 kHz ] 3.2.1.4 Audio Layer Users can choose one of the following input audio formats, and the LCD will display the detail options like the following page: 1.4 Audio Layer...
  • Page 17 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Users can check whether the device has the audio gain function, and the adjustable range of this item is from -11db to 11db. After entering this interface, users can press the UP/DOWN key the set the parameters.
  • Page 18 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 2.5 Hue 3.2.2.3 Video Available Under the submenu, users can decide whether to make the video available or not. Yes means that the encoding stream includes video stream, while no means that the device only encodes the audio stream and the output stream does not include the video stream.
  • Page 19 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 3.2.3.1 Trans Stream ID and Original NET ID Setting Users can enter the main editing menu by pressing the enter key, and the adjustable range of them is 0~65535. The LCD screen will display the following page after pressing the enter key.
  • Page 20 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 3.6 Out address 224.002.002.002 3.2.3.5 Port’s Number After entering the interface, the LCD will display the following page, and users can set the IP port’s address. 3.7 Port’s Number 01001 3.2.3.6 Enable/Disenable the IP Out Users can decide whether to open the device IP out function, and the option with * is the current choice.
  • Page 21 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 3.2.3.8 Bit-rate Ctrl User can choose CBR & VBR at this menu. CBR (Constant Bit-rate) means that the bit-rate will be a constant value. VBR (Variable Bit-rate) means that the bit-rate will always change along with the video scene changing.
  • Page 22 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 4.3 Gateway 192.168.002.001 4.4 Alarm Address 192.168.000.211 4.5 MAC Address f f f f f f f f f f f f Note: the MAC address is unique, and users can modify it in the NMS operation 3.2.5 Saving Setting...
  • Page 23 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 xxxx Company SW 2.12 HW 5.5 3.2.8 Language Setting Users can check the current language and set the desire language in this interface. And the LCD will display the following page after pressing enter key.
  • Page 24: Chapter 4 Nms Operation

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Chapter 4 NMS Operation Network Management System Profile Network management system is applied to digital TV equipment operating, controlling and management and parameters setting, etc. It centralizes digital TV equipment through network. 4.1 Installation The software doesn’t need special installation.
  • Page 25 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 automatically. If both of them are correct, the main interface will appear. Both of the default user name and password are admin. 4.2.2 Main Interface User can create a device node tree in the left column by adding, modifying and deleting the device node.
  • Page 26 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 4.2.3 Adding Frequency Point The Add Freq Point dialog box popes up when the user clicks the Add Freq Point item in the Edit pull down menu on the menu row. The device will confirm the given frequency while user clicks OK.
  • Page 27 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 User can also click right mouse key to pop up the short-cut menu in device tree or in the left blank column, then the corresponding dialog box will pop up by choosing Add Main Freq Point.
  • Page 28 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 4.2.4 Adding Equipment under Given Frequency Point User should choose the frequency point in advance, and then the dialog box of Add Equipment will pop up when user clicks “Add Equipment” item in the Edit pull down menu on the menu row.
  • Page 29 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 User should follow the steps as below:  Choosing the connected equipment type in drop down list of “Equipment Type” by clicking the “▼”.  Inputting the Equipment Name  Inputting the device IP Address ...
  • Page 30: Encoder Operation

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Similarly, user can choose to click the button on the toolbar to popup the read file dialog box, to read the stored binary file and set the device’s parameters according to the loaded binary files.
  • Page 31 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 4.3.1 Video Setting User can click Get to read the default settings from encoder, or separately set the system information such as IP address and PMT/PCR/video/audio PID video format on this table, and then click Set to save the settings. And the provider name and program name can be modified on this table.
  • Page 32 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 4.3. 1.4 PCR PID This field sets PCR PID. The value ranges from 0 to 0 x1FFF. 4.3.1.5 Video Field Mode In this pull-down list, users can set the input video Field mode. And there are three options (Auto, PAL50HZ, and NTSC60HZ).
  • Page 33 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 details. 4.3.2.7 Bit-rate Mode This radio checkbox indicates the audio bit-rate mode, and there are two options. CBR (Constant Bit-rate) means that the bit-rate will be a constant value. VBR (Variable Bit-rate) means that the bit-rate will always change along with the video scene changing.
  • Page 34 MPEG-2 Encoder User’s Manual IRENIS MPE-2000 details, please refer to the manual of PSI/SI. PSI: Program Specific Information SI: Service Information 4.3.3.10 EI out Setting Users can decide whether to enable the EI output, and the maximum EI out channels are four.
  • Page 35: Chapter 5 Troubleshooting

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Chapter 5 Troubleshooting ISO9001 quality assurance system has been approved by CQC organization. For guaranteeing the products’ quality, reliability and stability, all the products pass the testing and inspection before products are shipped out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by our company.
  • Page 36: Chapter 6 Packing List

    MPEG-2 Encoder User’s Manual IRENIS MPE-2000 Chapter 6 Packing list  MPEG-2 Encoder 1pcs  User’s manual 1pcs  Analog Audio/Video Composite Input Cable 4pcs  ASI cable 1pcs  Power cord 1pcs 34 /34...
