Irenis BLANKOM HDM-9500C Manual

Encoder-Modulator
HDM-9504, HDM9508 with C/T, 4 / 8 HDMI Inputs with 2/4 DVB-C or –T output
• MPEG4 AVC/H.264 HD/SD encoding
• 4 or 8 HDMI inputs with AVC/H.264 Encoding
• MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
• RF Out: 4(T/C) or 2(T/C) Channels /Bouquets multiplexing
DVB-C or –T modulating RF outputs – adjacent
• -20dB Test-Output port
• IP 64/128 SPTS Inputs to select and mux into the output
channels
•
Nx MPTS IP parallel
• PID remapping/ accurate PCR adjusting/PSI/SI editing and
inserting
• DVB-C/DVB-T/ATSC-T/ISDB-T RF out selectable (from
factory) -> So always use proper character when ordering:
C/T/I/A
• Web based management
• Logo / Text Overlay insertions
Ordering Info's:
C= DVB-C, T = DVB-T output, I=ISDB-Tb and A=ATSC
optional upon request. E.g.: HDM-9504C= 4x HDMI IN + DVB-C OUT, HDM-
9508T = 8x HDMI IN + DVB-T OUT
info@blankom.de

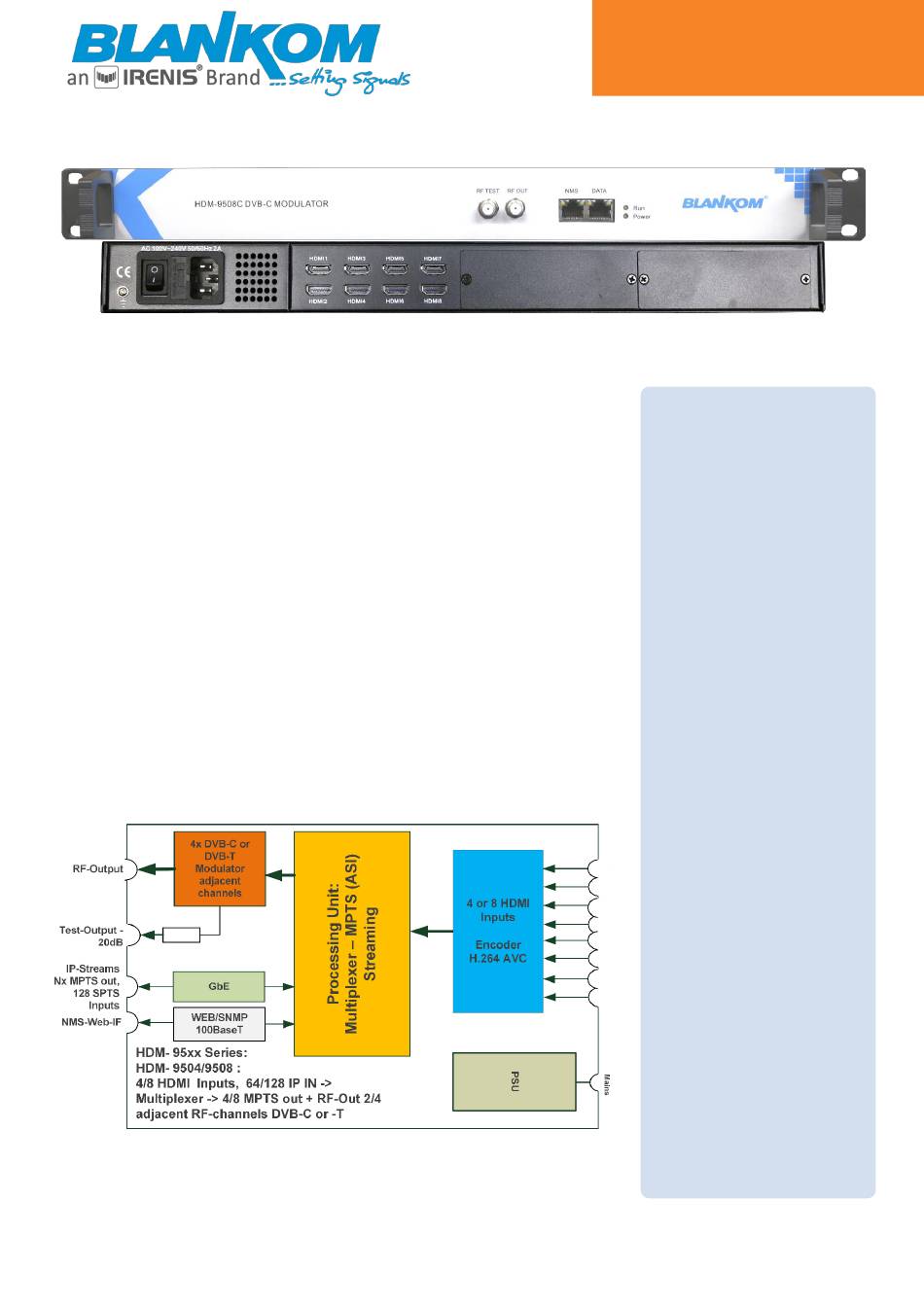

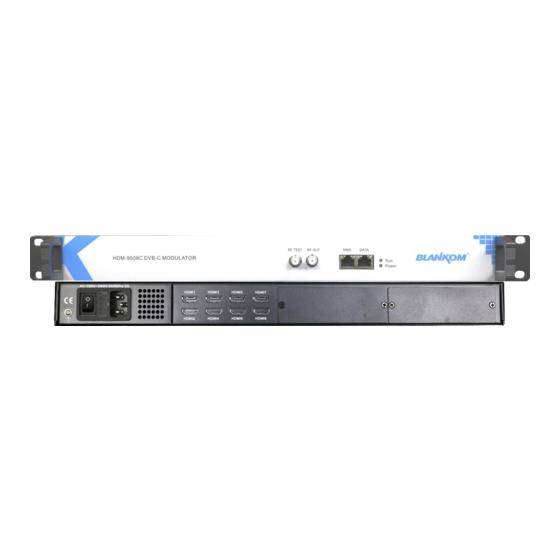

Top: Front-panel, bottom = Rear-Panel view
output over UDP, RTP/RTSP
HDM-9500C or T
www.blankom.de
6th Generation
BLANKOM® IPTV Headend
Technology
Broadcast grade, high
performance MPEG4 HD
Encoder Modulator (4 or8
HDMI to RF output). The
HDM-95xy C/T series
products are BLANKOM's
new breakthrough all-in-
one device, which
integrate encoding (SD/HD
MPEG-4/AVC H.264) and
modulating to convert
HDMI signals into DVB-
C/DVB-T/ATSC-T/ISDB-Tb
RF output.
The HDM-95xy C/T HD
encoder modulator is a
professional high
integration device which
includes encoding,
multiplexing and
modulating. It supports 4
or 8 HDMI inputs, ASI and
maximum 64 or 128 IP
input through the GBE
port. It modulates DVB-C
RF out with 2/4 adjacent
carriers. The modulator
type can be chosen from
factory by ordering C or T
version (Or A = ATSC or I =
ISDB-T upon request)
