Irenis HDE-264 User Manual

Hdmi encoder
Hide thumbs Also See for HDE-264:

Advertisement

Quick Links

Download this manual See also: User Manual
®
IRENIS
HDE-264 Encoder

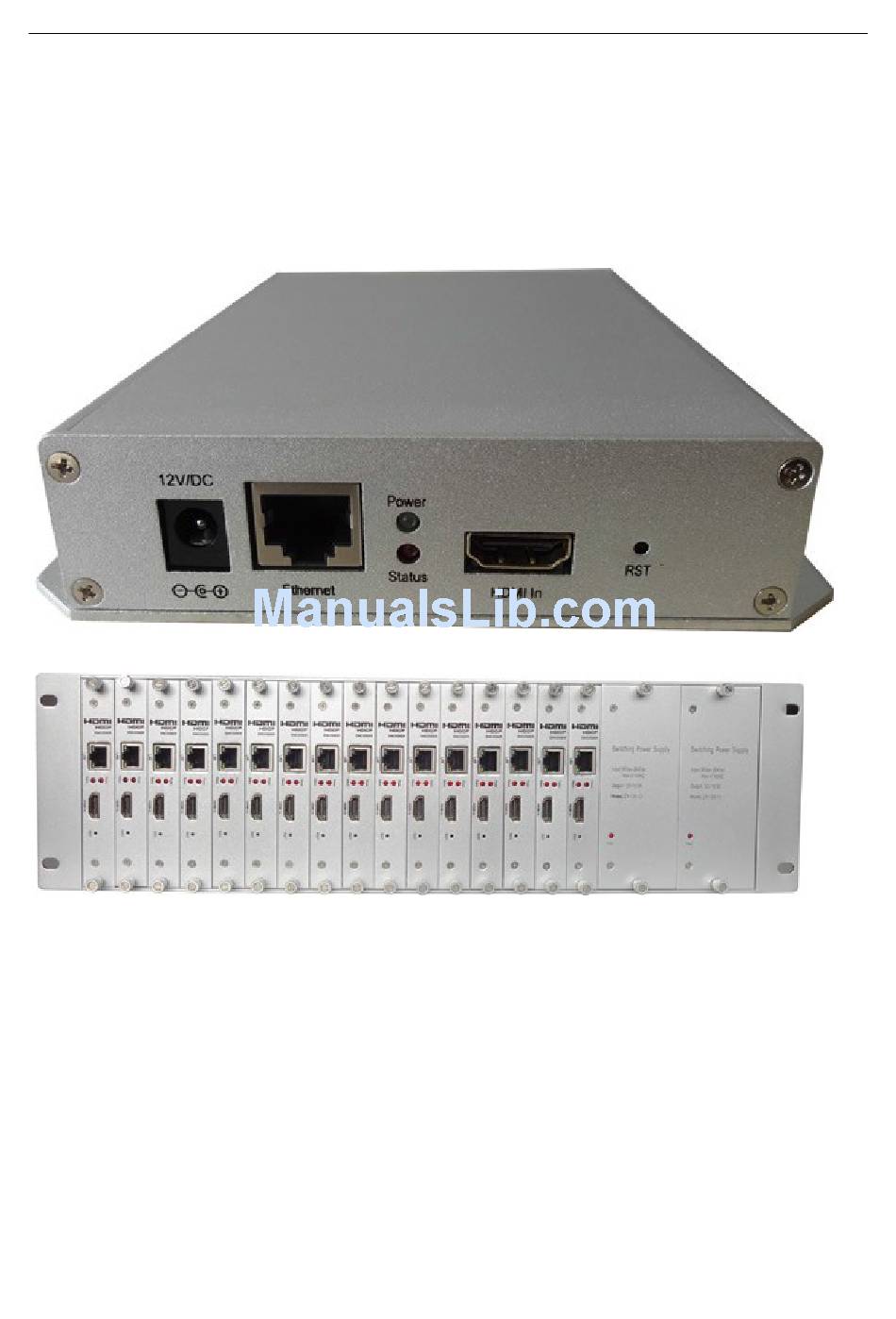

Ⅰ Photos

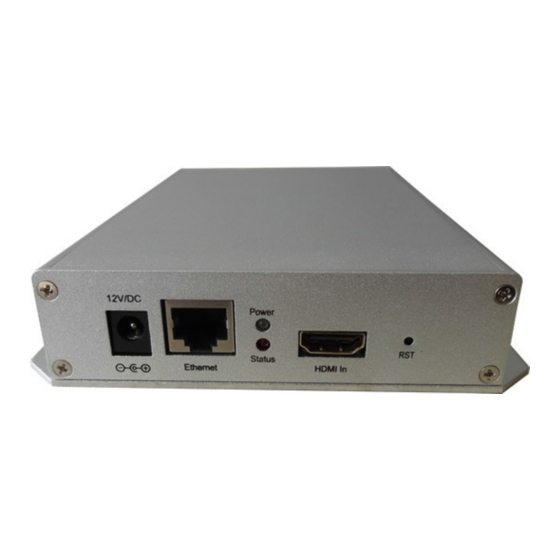

Photo of single
unit
Photo of 3U Chassis
" Product introduction
IRENIS HDE-264 HD video Encoder (HDMI input) is our professional HD audio & video
encoding device with powerful functionality, which supports H.264 encoding, dual-Streaming
data. It is equipped with 1 channels of HDMI input supporting MPEG-4 AVC/H.264 High
Profile code format & main Profile code format. Its high integration and cost-effective design
make this device widely used in variety of digital distribution systems such as CATV digital
head-end, satellite and terrestrial digital TV etc, Besides, it can be integrated into single 3U
Chassis for 16 pcs of HD encoder units, Powred by built-in dual power supplies to be system
more stable. Furthermore, it is compatible with VLC decode very well.
Ⅲ Applications
www.irenis.com
IRENIS HDE-264 HDMI Encoder User's Manual
1/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDE-264 and is the answer not in the manual?

Questions and answers

Related Manuals for Irenis HDE-264

Summary of Contents for Irenis HDE-264

  • Page 1 Photo of 3U Chassis " Product introduction IRENIS HDE-264 HD video Encoder (HDMI input) is our professional HD audio & video encoding device with powerful functionality, which supports H.264 encoding, dual-Streaming data. It is equipped with 1 channels of HDMI input supporting MPEG-4 AVC/H.264 High Profile code format &...
  • Page 2 ® IRENIS HDE-264 Encoder 1. As HD encoder for IPTV 2. Able to work with NVR(Net Video Recorder) 3. As streaming server for HD Digital billboard Signage 4. As video server for Video Conference system 5. As Capture devices for internet conferencing system 6.
  • Page 3 ® IRENIS HDE-264 Encoder Input： video 1 channel HDMI input (version 3.6), support HDCP resolution 1920×1080_60i/60P、1920×1080_50i、1280×720_60p 1280×720_50p etc. encoding H.264/AVC High Profile Level 4.0(HD) Data Rate 0.8Mbps~12Mbps Data Rate control CBR/VBR GOP type adjustable video pre-processing De-interlacing, Noise Reducing and Sharpening...
  • Page 4 ® IRENIS HDE-264 Encoder Input the power supply to turn on encoder and hold a pin to press RST on the encoder for 10 seconds,it will be restarted and initialized. The default Route IP of dash board is 192.1.1.168 after initiallization.
  • Page 5 ® IRENIS HDE-264 Encoder www.irenis.com 5/18...
  • Page 6 ® IRENIS HDE-264 Encoder Step 3: Login Dash board in IE Open up IE, ENTER 192.168.1.168 in URL address, Default user Name: admin Default password: admin www.irenis.com 6/18...
  • Page 7 ® IRENIS HDE-264 Encoder 3. HDMI status Note: 3.1 Access address: it can be decoded VCL player by this copy address. 3.2 Video parameter: video input parameter 3.3 Audio parameter: audio input parameter 3.4 Hardware status: when the interrupt number is growing up , it indiates video input work;...
  • Page 8 ® IRENIS HDE-264 Encoder 4. Changing default dash board IP Note: Default IP is 192.168.1.168. if IP setting is forgoten after changing. You can reset it to default IP follow step 1 above. www.irenis.com 8/18...
  • Page 9 ® IRENIS HDE-264 Encoder 5. Main stream setting for HDMI encoding 5.1 : video and audio setting Note: the parameters can be adjusted according to practical applications. www.irenis.com 9/18...
  • Page 10 ® IRENIS HDE-264 Encoder 5.2 : HTTP Enable Step 1: Enter “/HDMI” and select drop menu “Enable”; Step 2: Enter a port number; Step 3: Click “Apply”. Note: 1) When HTTP protocol is enable, “/hdmi” can be removed in network URL of VLC player optionally. For example, if the network URL is “http://domain.com:88/hdmi”, it will do work while you enter URL...
  • Page 11 ® IRENIS HDE-264 Encoder 6. Second stream setting: Note: These second stream settings above can be the same as main stream, you can also set different resolution video. Q1: Why do I need this second stream setting? A: For instance, you want to broadcast one programe to two different clients, one is for computer clients and another is for moblie phone clients.
  • Page 12 ® IRENIS HDE-264 Encoder 7. RTMP（Real Time Streaming Protocol）settings 7.1 Set H.264 level : baseline profile 7.2 Set RTMP protocol : Enable 7.3 Set RTMP sever IP 7.4 Set RTMP sever port 7.5 Set RTMP stream name 7.6 Sever test: 7.6.1 Instal software: Flash+Media+Sever3.5 there’s no need for serial number when...
  • Page 13 ® IRENIS HDE-264 Encoder install, both username and code are “1”. 7.6.2 start background software: 7.6.3 Open up the file of FlashPlayer : VideoPlayer.html 7.6.4 Type in : rtmp://ip address /rtmp/hdmi ,choose live, then can see the image or type in： rtmp://192.168.1.100:1935/live/hdmi choose：...
  • Page 14 ® IRENIS HDE-264 Encoder 9. Chinese & English switch 10. HDMI OSD settings Note: if no need for watermarks, space should be entered in “text”. www.irenis.com 14/18...
  • Page 15 ® IRENIS HDE-264 Encoder Ⅵ VLC decoding configuration 1. How to play video soruce via VLC VLC software version NO: 2.0.1 Note：”/hdmi” can be removed under HTTP streaming. 2. How to streaming video via VLC www.irenis.com 15/18...
  • Page 16 ® IRENIS HDE-264 Encoder www.irenis.com 16/18...
  • Page 17 ® IRENIS HDE-264 Encoder www.irenis.com 17/18...
  • Page 18 ® IRENIS HDE-264 Encoder www.irenis.com 18/18...
