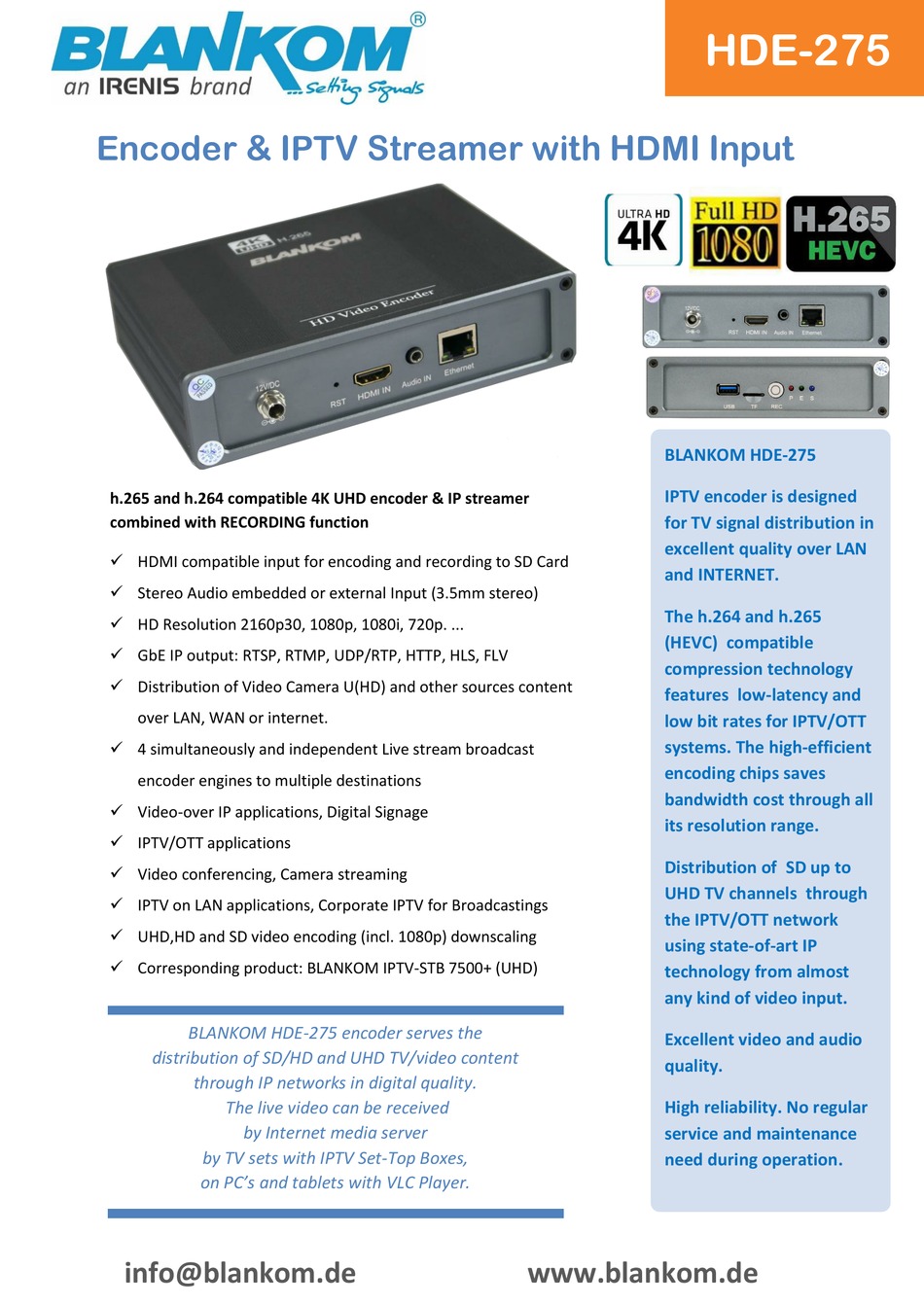

Irenis BLANKOM HDE-275 Quick Start Manual

Encoder & IPTV Streamer with HDMI Input
h.265 and h.264 compatible 4K UHD encoder & IP streamer
combined with RECORDING function
 HDMI compatible input for encoding and recording to SD Card
 Stereo Audio embedded or external Input (3.5mm stereo)
 HD Resolution 2160p30, 1080p, 1080i, 720p. ...
 GbE IP output: RTSP, RTMP, UDP/RTP, HTTP, HLS, FLV
 Distribution of Video Camera U(HD) and other sources content
over LAN, WAN or internet.
 4 simultaneously and independent Live stream broadcast
encoder engines to multiple destinations
 Video-over IP applications, Digital Signage
 IPTV/OTT applications
 Video conferencing, Camera streaming
 IPTV on LAN applications, Corporate IPTV for Broadcastings
 UHD,HD and SD video encoding (incl. 1080p) downscaling
 Corresponding product: BLANKOM IPTV-STB 7500+ (UHD)
BLANKOM HDE-275 encoder serves the
distribution of SD/HD and UHD TV/video content
through IP networks in digital quality.
The live video can be received
by Internet media server
by TV sets with IPTV Set-Top Boxes,
on PC's and tablets with VLC Player.
info@blankom.de

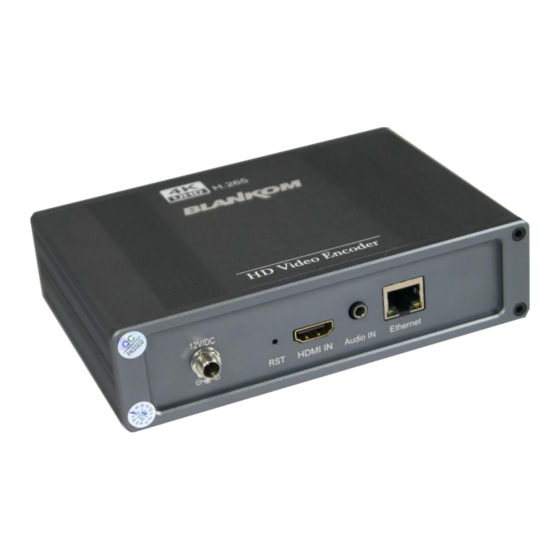

BLANKOM HDE-275
IPTV encoder is designed
for TV signal distribution in
excellent quality over LAN
and INTERNET.
The h.264 and h.265
(HEVC) compatible
compression technology
features low-latency and
low bit rates for IPTV/OTT
systems. The high-efficient
encoding chips saves
bandwidth cost through all
its resolution range.
Distribution of SD up to
UHD TV channels through
the IPTV/OTT network
using state-of-art IP
technology from almost
any kind of video input.
Excellent video and audio
quality.
High reliability. No regular
service and maintenance
need during operation.
www.blankom.de
HDE-275
