Page 1: Mpeg4 Hd To Ip / Asi Encoder & Multiplexer & Dvb-T/C Modulator
MPEG4 HD to IP / ASI Encoder & Multiplexer & DVB-T/C Modulator Installation and Operation Instructions HDM-4220C / HDM-4230C Subject to technical changes w/o notification. - Page 2 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual About This Manual To whom it may concern This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.
-
Page 3: Table Of Contents
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Table of Content MPEG4 HD TO IP / ASI ENCODER & MULTIPLEXER & DVB-T/C MODULATOR ........... 1 ..........................5 HAPTER NTRODUCTION 1.1 P ........................... 5 RODUCT VERVIEW 1.2 K ............................. 5 EATURES 1.3 S ............................ - Page 4 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual ............45 NSTALLATION AND SAFETY INSTRUCTIONS ONTAGE UND ICHERHEITSHINWEISE : ............................46 OCUMENT ISTORY : ..............................47 ONTACT Author: RRi Page - 4 - Version 1.3 Date: 10-2019 BLANKOM-HDM-4230_User_Manual_ENv1.3.docx...
-
Page 5: Chapter 1 Introduction
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Chapter 1 Introduction 1.1 Product Overview This MPEG4 AVC/H.264 HD IP & ASI Encoder is a professional HD audio & video encoding and multiplexing device. It has 1x ASI–IN, 8x HDMI (=Model 8220) or 8x HD-SDI (= Model 8210) video input interfaces, supporting MPEG-4 h.264 video encoding and MPEG 1 Layer 2 audio encoding. -
Page 6: Specifications
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual 1.3 Specifications Input 2x2 HD-SDI Inputs, ASI Input, RF IN -> RF Out internal combiner 1920×1080_60i, 1920×1080_50i, input 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i, … Resolution Following Input or Downscaling to almost all output standard formats Video... -
Page 7: Block Diagram

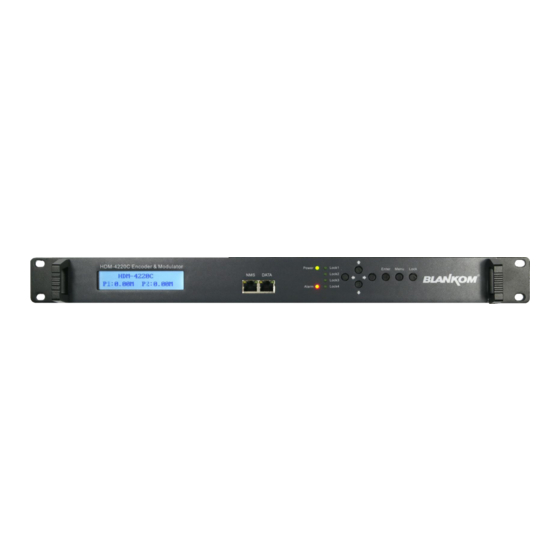

MPEG2/4 HD-SDI to QAM and IP Encoder User Manual 1.4 Block Diagram 1.5 Appearance and Description Front and Rear Panel Illustration From Left to Right: Display, GbE-DATAPort, NMS Management port, status LED's, Keypad, Enter-Button, Menu-, Lock- Unlock- Button 2x Modules either double HDMI or double SDI-inputs with extra screw-mounting, RF-Input RF-Output, ASI-IN, 2x ASI Out, ON/OFF- switch, Power plug, Grounding connector screw (HDM-4320C HDMI instead of HD-SDI BNC –... -
Page 8: Chapter 2 Installation Guide
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product. -
Page 9: Environmental Requirements
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual 2.4 Environmental Requirements Item Requirement When user installs machine frame array in one machine hall, the distance between 2 Machine Hall rows of machine frames should be 1.2...1.5m and the distance against wall should be no Space less than 0.8m. -
Page 10: Chapter 3 Web Interface Setup
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Chapter 3 WEB Interface Setup The user can control this device and setup the configuration by a computer connected to the device to its web NMS Port. The user should ensure that the computer’s IP address is different from the other device’s IP address, otherwise, it would cause IP conflicts. -
Page 11: Network Configuration Basics
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Connect the PC (Personal Computer) and the device with network cable directly (Check usage of crosslink cable eventually or network interface should support MDI/MDX), or using a at least Fast Ethernet 100BaseT switch and use a "ping" command to confirm they are on the same network segment. - Page 12 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual The change will immediately take effect after confirming it with SET button. So you need to login with the new IP address here as example changed to 192.168.0.137: Follow this rule to physically separate the Ethernet ports (Example with another Encoder but similar to handle) You can configure the device IP addresses as following:...
- Page 13 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Change to your needs, change/set the values: Change to your needs and avoid same subnet - means 192.168.0.x is forbidden for the DATA port or should be avoided. If you change the Gateway, you probably need to reboot to enable that. But SAVE before reboot ;-).
-
Page 14: General Setup
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Intelligent switches with Loop detection can also be used i.e. if you separate the Network ports by VLAN's. You will find some more about streaming things at the end of this manual. Note: If you have set more than 2 IP ranges in your PC and try to get the Streams by VLC: VLC is somehow stupid and do not recognize via which Ethernet (RJ45 or WIFI) IP address –Source it can grab the Stream. - Page 15 Note: We recommend to control and check the configured Transport-Stream Values with a TS analyser like a DekTec Fantasi (can be obtained from IRENIS GmbH) and the corresponding Software like stream-Expert either at the ASI out and / or the SPTS and MPTS streams.
- Page 16 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual An ASI TransportStream is always and every time with ConstantBitRate (CBR) which depends from its source. To view the ASI Input-content you need to press Set Tuner and or before Refresh the Input: Than select to pass through or Multiplex Here you can mix an Input TS with the encoded Services, select the outputs to go with and even can pass PID’s from ASI TS manually: A Popup Window will appear (please set your browser to support or allow Popups!!!!)
- Page 17 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Example to pass the EIT Table from the ASI Input to the new multiplexed output see above, ADD PID 0x0012 (hex) (= PID 18 dec). Selcting a Service in the ASI will popup its information which can be edited: With the Multiplex function you can add the encoded Services to an existing transport stream coming in from ASI and push that out to ASI 1+2 and in parallel to an MPTS output.
- Page 18 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Encoder Setups The encoder is equipped with 2x dual encoder modules with HDMI or HD-SDI inputs. From the menu on the Top of the webpage select the modul1 or 2 and it shows the information of the 2 encoding channel: Author: RRi Page - 18 -...
-
Page 19: Hdm-4320C Hdmi Configuration
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual These settings are almost self-explaining. The PID-values are always to consider as HEX please and you should avoid overlapping’s or double setups for the TV services. We assume, that you are an expert in DVB. Otherwise make yourself familiar before screwing up the machine. HDM-4320C HDMI configuration: These slightly differ from the HD-SDI port inputs …... -
Page 20: Nit-Settings
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual NIT-Settings: Author: RRi Page - 20 - Version 1.3 Date: 10-2019 BLANKOM-HDM-4230_User_Manual_ENv1.3.docx... - Page 21 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual In this menu the output TS NIT of all RF channels and the ASI TS can be configured and manually edited. A Popup will appear after pressing ADD. NOTE: The POPUP Blocker in your Browser should be disabled. You should set this according to the existing network values of your CATV frequencies.
- Page 22 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Similar is the handling of the Virtual Channel Table (VCT) support for the non Nordig/European CATV networks: You can skip that or let it empty in Europe. Example for an inserted NIT: Author: RRi Page - 22 - Version 1.3...
- Page 23 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual The service ID’s need to be adjusted according to your encoded TV services and their SID’s (in Hex values): If there is an existing Network and you add these 4 QAM channels to it, you can combine the existing NIT (Like coming from a Cable Operator like KDG/Vodafone or any other) with your HDM.
- Page 24 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Connected TS analyser: Before and after adding the 2 frequency: Author: RRi Page - 24 - Version 1.3 Date: 10-2019 BLANKOM-HDM-4230_User_Manual_ENv1.3.docx...
- Page 25 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual With changed values for the FEC (outer) … Usually the TV set would not update it’s NIT except you perform a manual tuning to one of these channels where you have inserted the NIT of this device. Some TV sets will only be store one NIT, and if you need the using of a NIT in your Coax-CATV network we recommend to place these extra inserted QAM DVB-C Channels in a free 4 channel range as lowest as possible by i.e.
-
Page 26: Ip-Output Parameters
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Internet with DOCSIS 3.1). Than they store it and they might not find all Channels! So we recommend to have an eye on these details of the NIT very carefully. IP-OUTPUT Parameters: Addresses, Ports and mode can be adjusted here. -
Page 27: Safe And Restore The Configuration
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Here the settings for the Outputs A B C D (RF channels) ON/OFF and selection of what ASI out can be assigned to. The Multiplex ASI output can only be as high as 99 Mb/s while eachRF- Channel Datrates depending on the modes setup: Symbol rate is usually 6750-6850 and 256 QAM the highest and best value for QAM out: max. -
Page 28: Password
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Password The default username and password for the administrator can be changed. But DO NOT forget that or write it down somewhere ;-) Also the Front panel operation can be blocked here. Some useful remarks: ... -
Page 29: Some Useful Hints About Network Streamings
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual User Manual 1 pcs Power Cord (depending on Country) 1 pcs some HDMI Cables maybe or BNC dep. on Model. Some useful hints about network streamings: We recommend to make yourself familiar with the h.264 AVC (and HEVC depending on Encoder unit) encoding methods as well as streaming itself. -
Page 30: General Notes About Streams
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Switching slices, called SP and SI slices, allowing an encoder to direct a decoder to jump into an ongoing video stream for such purposes as video streaming bit rate switching and "trick mode" operation. When a decoder jumps into the middle of a video stream using the SP/SI feature, it can get an exact match to the decoded pictures at that location in the video stream despite using different pictures, or no pictures at all, as references prior to the switch. -
Page 31: Registered Port
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Unicast-Prefix-based IPv4 Multicast Addresses Scoped Multicast Ranges Relative Addresses used with Scoped Multicast Addresses Multicast (as opposed to unicast) is used to send UDP packets from 1 source to multiple destination servers. - Page 32 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual https://en.wikipedia.org/wiki/List_of_TCP_and_UDP_port_numbers Range for Ephemeral port Internet Assigned Numbers Authority (IANA) suggests the range 49152 to 65535 (2 to 2 −1) for dynamic or private ports. [note 2] Many Linux kernels use the port range 32768 to 61000. FreeBSD has used the IANA port range since release 4.6.
-
Page 33: Rtp
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual In IPv6 jumbograms it is possible to have UDP packets of size greater than 65,535 bytes. RFC 2675 specifies that the length field is set to zero if the length of the UDP header plus UDP data is greater than 65,535. - Page 34 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual any port (even, not odd > 1024) Author: RRi Page - 34 - Version 1.3 Date: 10-2019 BLANKOM-HDM-4230_User_Manual_ENv1.3.docx...
-
Page 35: Annex Mpeg
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual ANNEX MPEG MPEG PSI/SI Information’s: We assume, that the user is familiar with all abbreviations mentioned in this manual. As VCT is a part of the American ATSC standard and for DVB-C Annex-B networks: 6MHz bandwidth, 64 or 256 QAM only, a fixed Symbol rate of... -
Page 36: Annex Channel Plan
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual ANNEX Channel Plan (CATV channel plan) Kanal- Mitten- Bild- T on- Kanal- Mitten- Bild- T on- Bereich Kanal Bereich Kanal frequenzen frequenz träger träger frequenzen frequenz träger träger Bands Channel Bands Channel Channel Middle... -
Page 37: A Ppendix Db
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Appendix DB Conversions of Power @ 75Ω / Umrechnungstabelle dBµV <-> dBm dBmV dBµV dBm 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75... - Page 38 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual dBmV dBµV dBm 75Ω mW 75Ω -10.75 79.43 0.084 -9.75 89.13 0.106 -8.75 100.00 0.133 -7.75 112.20 0.168 -6.75 125.89 0.211 -5.75 141.25 0.266 -4.75 158.49 0.335 -3.75 177.83 0.422 -2.75 199.53 0.531 -1.75...
-
Page 39: Appendix A
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. -
Page 40: Safety Instructions
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Safety instructions Read the safety instructions carefully before assembling or commissioning the device and ensure that you comply with them 1. Installation Danger: The device may only be installed and started up by competent people (see EN 60065). ... - Page 41 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Danger: Ensure that there is a clearance of at least 20cm around the device. The device ventilation is not permitted to be impaired by covering the Ventilation openings with objects such as newspapers, tablecloths, curtains, etc. (risk of fire). ...
-
Page 42: Sicherheitshinweise
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Sicherheitshinweise Sicherheitshinweise bitte vor Montage bzw. Inbetriebnahme des Gerätes sorgfältig lesen und befolgen. 1. Installation Gefahr: Das Gerät darf ausschließlich von sachverständigen Personen (siehe EN 60065), installiert und in Betrieb genommen werden. Gefahr: Das Gerät und/oder die Verteilperipherie muß... -
Page 43: Wartung
Reparatur, andernfalls droht Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung: (Bei optischen Sendern sowie deren Verteilperipherie) ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de 6. -
Page 44: Entsorgung
MPEG2/4 HD-SDI to QAM and IP Encoder User Manual 7. Entsorgung Vorsicht: Entsorgen Sie das Gerät entsprechend den geltenden umweltrechtlichen Bestimmungen. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll! Vorsicht: Entsorgen Sie Batterien (falls vorhanden), entsprechend den geltenden umweltrechtlichen Bestimmungen. - Page 45 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Installation and safety instructions / Montage und Sicherheitshinweise Die beschriebenen Geräte dienen ausschließlich der Installation von Satelliten-Empfangsanlagen. The equipment described is designed solely for the installation of satellite receiver systems. ...
- Page 46 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Free circulation of air must be possible to discharge the heat emitted by the unit. Risk of overheating! Zulässige Umgebungstemperatur -20 bis +50°C Permissible ambient temperature -20 to +50°C Important notes: / Zur Beachtung ...
- Page 47 MPEG2/4 HD-SDI to QAM and IP Encoder User Manual Contact: IRENIS GmbH Hauptstr. 29 31171 Nordstemmen- Germany Phone: +49 5069 4809781 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de Author: RRi Page - 47 - Version 1.3...
