Summary of Contents for Baxi SPC SPLIT

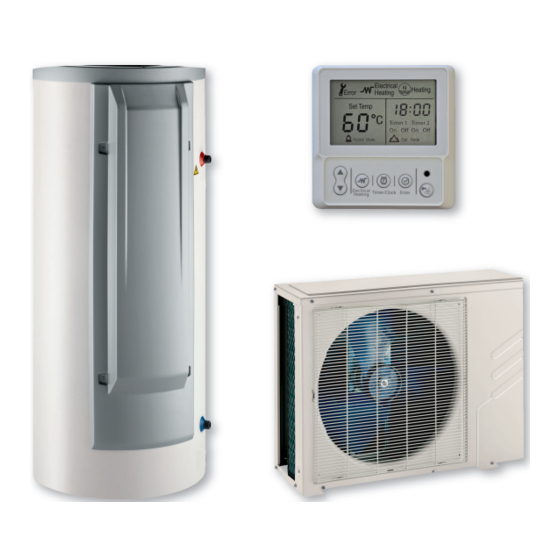

- Page 1 Italy Installation and Service Manual Thermodynamic water heater SPC SPLIT SPC Split 200 FS SPC Split 300 FS Serv. ref. SODU 2 M R1...
-
Page 2: Table Of Contents
Thermodynamic water heater SPC Split 200 FS and SPC Split 300 FS ...... - Page 3 Descaling the domestic hot water tank ........... . . 67 7740321 - v04 - 03122019 SPC Split...
- Page 4 13.4 ErP information ................75 SPC Split...
-
Page 5: Safety
Caution Take precautions with the domestic hot water. Depending on the settings of the thermodynamic water heater, the domestic hot water temperature may exceed 65°C. Caution Only genuine spare parts may be used. 7740321 - v04 - 03122019 SPC Split... -
Page 6: Recommendations
3. Open a valve on the safety unit. 4. When the water stops flowing, the domestic hot water tank has been drained. Caution Install the thermodynamic water heater in a frost- free environment. SPC Split 7740321 - v04 - 03122019... - Page 7 To benefit from extended warranty cover, no modifications should be made to the appliance. Warning In accordance with the NFC 15-100 electrical safety standard, only qualified professionals are permitted access to the inside of the appliance. 7740321 - v04 - 03122019 SPC Split...
- Page 8 Do not bring the heating water and the domestic water into contact with each other in the the heating system. For more information, see Technical specifications, page 16 Domestic cold water connection, page 45 SPC Split 7740321 - v04 - 03122019...
-
Page 9: Specific Safety Instructions
Our liability as manufacturer may not be invoked in the following cases: Failure to abide by the instructions on installing and maintaining the appliance. Failure to abide by the instructions on using the appliance. 7740321 - v04 - 03122019 SPC Split... -
Page 10: Installer's Liability
This product is not classified as a "hazardous preparation" according to European Union regulations. 1.5.3 Composition of/Information on the ingredients Chemical nature: 1,1,1,2 - Tetrafluoroethane R-134a. Ingredients that may lead to hazardous situations: SPC Split 7740321 - v04 - 03122019... -
Page 11: First Aid
Effect of heat: release of toxic and corrosive vapours. Special intervention methods: Cool the volumes exposed to heat with water spray. Protection of the firemen: Full self-contained breathing apparatus. Complete body protection. 7740321 - v04 - 03122019 SPC Split... -
Page 12: In The Event Of Accidental Spillage
Do not drink, eat or smoke in the work place. 1.5.9 Regulations Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No. 842/2006. SPC Split 7740321 - v04 - 03122019... - Page 13 1 Safety Classified installations No. 1185. 7740321 - v04 - 03122019 SPC Split...
-
Page 14: About This Manual
General This manual is intended for installers of a SPC Split 200 FS or SPC Split 300 FS thermodynamic water heater comprising a TWH 200 Split or TWH 300 Split domestic hot water tank and an SODU 2 M outdoor unit with display. -
Page 15: Symbols Used On The Appliance
6 Electrical back-up 7 CE Marking: equipment conforming to European legislation 8 NF Marking: equipment that respects French safety and performance criteria 9 Protection rating. 9 IPX1B MW-4000099-1 7740321 - v04 - 03122019 SPC Split... -
Page 16: Technical Specifications
Technical data 3.2.1 Technical data - Heat pump water heaters Tab.2 Technical parameters for heat pump water heaters Parameters Unit SPC Split 200 FS SPC Split 300 FS Daily electricity consumption ( 3.578 5.617 elec Declared load profile Sound pressure level at 1 m indoors (... - Page 17 3 Technical specifications Parameters Unit SPC Split 200 FS SPC Split 300 FS Daily fuel consumption ( fuel Emissions of nitrogen oxides ( mg/kWh Qfuel, Weekly fuel consumption with smart controls ( week smart Weekly electricity consumption with smart controls (...
-
Page 18: Dimensions And Connections
Domestic hot water tank TWH 300 Split Split Width (mm) Depth (mm) Height (mm) 1377 1690 Cold water connection height (mm) Hot water connection height (mm) 1065 1378 Refrigeration connection height 1328 1641 (mm) Immersion heater height (mm) SPC Split 7740321 - v04 - 03122019... -
Page 19: Outdoor Unit Dimensions
3 Technical specifications 3.3.2 Outdoor unit dimensions Fig.3 Dimensions in mm MW-4000104-1 3.3.3 Control panel dimensions Fig.4 Dimensions in mm Hybrid Mode Opt Mode MW-4000105-3 7740321 - v04 - 03122019 SPC Split... -
Page 20: Electrical Diagram
3 Technical specifications Electrical diagram 3.4.1 Thermodynamic water heater SPC Split 200 FS and SPC Split 300 FS Fig.5 Electrical diagram 1 Magnesium anode 4 Safety thermostat bulb 2 Temperature sensor 5 Safety thermostat 3 Steatite immersion heater SPC Split... -
Page 21: Electrical Diagram Of The Outdoor Unit
E-heater MW-4000107-3 Tab.4 Connector Description Control system PCB Control panel Power 1 Control panel power supply Transformer TRANS OUT Transformer outlet TRANS IN Transformer inlet Electronic expansion valve CAP1 Fan capacitor Compressor Compressor 7740321 - v04 - 03122019 SPC Split... -
Page 22: Sensor Specifications
Temperature sensors: exchanger – outside air – suction Temperature (°C) Resistance (KOhm) 35.2 12.6 5.18 2.36 1.17 0.63 0.36 Tab.8 Domestic hot water tank temperature sensor Temperature (°C) Resistance (KOhm) 61.9 26.1 12.2 6.20 3.39 1.97 SPC Split 7740321 - v04 - 03122019... - Page 23 3 Technical specifications Tab.9 Air discharge temperature sensor Temperature (°C) Resistance (KOhm) 67.1 28.4 13.3 6.80 3.74 2.18 7740321 - v04 - 03122019 SPC Split...
-
Page 24: Description Of The Product
4 Description of the product Description of the product General description The thermodynamic water heaters in the SPC SPLIT range have the following specifications: Floor-standing thermodynamic storage water heater, Heat pump extracting energy from the outside air, Control panel used to: display the domestic hot water temperature, adjust the timer program. -
Page 25: Operation Of Various Modes
No electrical back-up for this mode. 7740321 - v04 - 03122019 SPC Split... -
Page 26: Limit Temperatures Of The Thermodynamic Water Heater
-15 °C and +42 °C. Outside of this temperature range, the surplus heating of the domestic hot water is provided by the immersion heater. -15 -10 -7 MW-4000102-3 SPC Split 7740321 - v04 - 03122019... -
Page 27: Thermodynamic Water Heater Heating Time
4 Description of the product 4.2.4 Thermodynamic water heater heating time Fig.9 Heating time of the SPC Split 200 The graphs opposite show the heating time for the domestic hot water FS for a cold water temperature of tank based on the air temperature. -
Page 28: Main Components
13 Domestic cold water inlet 14 1/4” refrigeration connection 15 Sensor cable clamp 16 3/8” refrigeration connection 17 230-V cable clamp Important Do not place anything on top of the domestic hot water tank. SPC Split 7740321 - v04 - 03122019... -
Page 29: Outdoor Unit
5 Display connection terminal block 14 4-way valve 6 Temperature sensor connector 15 Electrical connection terminal block 7 Three-way valve 16 Air suction temperature sensor 8 2-way valve 17 Electrical control unit 9 Evaporator temperature sensor 7740321 - v04 - 03122019 SPC Split... -
Page 30: Control Panel Description
One logo with attachment instructions, A refrigerant sticker, One dielectric union, One sheet gasket, 3 screw-on feet, One 3/8” refrigeration nut, One plastic clamp, 3 screws for the cover, One washer, One control panel connection cable, SPC Split 7740321 - v04 - 03122019... -
Page 31: Accessories & Options
1/4” 3/8” insulated refrigeration connection - Length 5 m EH569 1/4” 3/8” insulated refrigeration connection - Length 10 m EH570 1/4” 3/8” insulated refrigeration connection - Length 20 m EH589 Connection kit for safety unit ER208 Gripping handles kit ER239 7740321 - v04 - 03122019 SPC Split... -
Page 32: Before Installation
Position of the data plates The data plates must be accessible at all times. They identify the product and provide the following information: Appliance type, Date of manufacture (Year - Week), Serial number, Electrical power supply. SPC Split 7740321 - v04 - 03122019... -
Page 33: Choice Of The Location
Allow: 800x800 a minimum distance of 100 mm on both sides of the appliance, a minimum height of 400 mm between the top of the appliance and the ceiling. 7740321 - v04 - 03122019 SPC Split... - Page 34 5 Before installation Fig.17 Space to allow for the domestic hot TWH 200 Split TWH 300 Split water tank A (mm) 1377 1690 MW-4000115-2 SPC Split 7740321 - v04 - 03122019...
- Page 35 The condensates discharge must be regularly cleaned in order to prevent any blockages. Installing a noise abatement screen In some cases, additional precautions are necessary owing to the fact, for example, of too short a distance between you and your neighbours. 7740321 - v04 - 03122019 SPC Split...
- Page 36 Fig.21 Distances of the appliance from the wall Tab.15 Minimum dimensions in mm SPC SPLIT 1500 Installation in cold and snowy regions Wind and snow may significantly impair the performance of the heat pump. Ensure that the following information is respected to install the outdoor unit correctly.
-
Page 37: Transport
Precautions for transporting the domestic hot water tank Fig.24 Transporting the domestic hot water Store and transport the domestic hot water tank packed and drained of tank water. Permissible ambient transport and storage temperatures: -20°C to + 60°C. MW-4000121-1 7740321 - v04 - 03122019 SPC Split... -
Page 38: Precautions For Transporting The Outdoor Unit
Do not use the top cover of the appliance for transport lifting. The cover is not capable of withstanding heavy weights. Minimum height of the van: SPC Split 200 FS: 1.75 m SPC Split 300 FS: 2.05 m Important It is recommended to transport the domestic hot water tank in a vertical position. -
Page 39: Connecting Diagrams
1 Domestic cold water inlet 10 Refrigeration connection in 2 Pressure reducer 11 General power cord 3 Safety unit 12 Display communication cable 4 Domestic hot water outlet 13 Off-peak rate signal cable 5 Anti-vibration studs 7740321 - v04 - 03122019 SPC Split... -
Page 40: Hydraulic Connection Between The Thermodynamic Water Heater And An Instant Boiler
Hydraulic connection between the thermodynamic water heater and an instant boiler Example of connection in HYBRID Mode Fig.27 °C 2 30 V 5 0Hz 2 30 V 5 0Hz MW-1000865-2 1 Instant boiler 2 Thermodynamic water heater SPC Split 7740321 - v04 - 03122019... -
Page 41: Installation
1. Open the control panel by unclipping the cover on the wall bracket. 2. Place the box horizontally against the wall and check its position with a spirit level. 3. Use a pencil to mark the positions for the mounting screws. MW-4000125-2 7740321 - v04 - 03122019 SPC Split... -
Page 42: Installing The Outdoor Unit
Install the appliance on a solid, stable structure able to bear its weight. Install the appliance a minimum of 80 mm above the ground. Fig.31 Installation on the ground 1 Concrete base frame 2 Condensates run-off 3 Run-off channel with a pebble bed MW-4000127-1 SPC Split 7740321 - v04 - 03122019... -
Page 43: Water Connections
If flushing has to be done using an aggressive product, neutralise the rinsing water before disposing of it in the waste water network. Important Using hoses which are too short or too rigid encourages the transmission of vibrations and could generate noises. 7740321 - v04 - 03122019 SPC Split... -
Page 44: Connecting The Water Circuit For Domestic Use
Hydraulically isolate the primary and domestic circuits with isolation valves to facilitate maintenance on the domestic hot water tank. The valves make it possible to carry out maintenance on the domestic hot water tank and its components without draining the entire installation. SPC Split 7740321 - v04 - 03122019... -
Page 45: Refrigeration Connections
2. Cut the pipes with a pipe cutter and deburr. Caution Angle the opening in the pipe downwards to ensure no particles can get inside. Prevent oil traps. If the pipes are not connected immediately, plug them to prevent moisture from entering. 7740321 - v04 - 03122019 SPC Split... -
Page 46: Connecting The Domestic Hot Water Tank Refrigeration Connection
3. Partially unscrew the adapter. A release noise should be heard, which is proof that the exchanger is watertight. If no release noise can be heard, return the product to the after-sales service. MW-4000133-2 SPC Split 7740321 - v04 - 03122019... - Page 47 The 3/8” nut can be found in the documentation bag. 8. Bead the pipes. MW-4000137-2 Fig.38 Routing the refrigerant connections 9. Position the pipes in the special cut-out in the plastic casing. MW-4000138-2 7740321 - v04 - 03122019 SPC Split...
-
Page 48: Connecting The Refrigerant Connections To The Outdoor Unit
(mm/inch) the cone fitting (mm) 6.35 - 1/4 14 - 18 9.52 - 3/8 34 - 42 6. Apply refrigerant oil to the beaded parts to facilitate tightening and improve the seal. MW-4000142-1 SPC Split 7740321 - v04 - 03122019... -
Page 49: Carrying Out A Leak-Tightness Test
Evacuation time after reach ing the pressure 5. Close the valve between the vacuum gauge / vacuum pump and isolation valve A. 6. After shutting off the vacuum pump, immediately open the valves. MW-4000146-1 7740321 - v04 - 03122019 SPC Split... -
Page 50: Opening The Valves
6. Disconnect the vacuum gauge and the vacuum pump from the service connection C. 7. Put the cap back in place on the service connection C. 8. Check the tightness of the connections using a leak detector. MW-4000149-2 SPC Split 7740321 - v04 - 03122019... -
Page 51: Electrical Connections
6.5.2 Types of connections to the distribution board There are different types of electrical connection for the thermodynamic water heater depending on the end user's requirements. The cables are provided by the installer. 7740321 - v04 - 03122019 SPC Split... - Page 52 5 Connection circuit breaker 6 AC-type differential switch HL: Live return 7 Circuit breaker HN: Neutral return 3 Control panel Important Supply cable: 2.5 mm² cross-section (not provided). Minimum operating temperature: 65°C. Maximum length: 20 m SPC Split 7740321 - v04 - 03122019...
- Page 53 500 mA C1 C2 40 A 16 A TEST MW-1000863-1 1 Thermodynamic water heater 5 Connection circuit breaker 2 Outdoor unit 6 AC-type differential switch 3 Control panel 7 Circuit breaker 4 Electricity meter 7740321 - v04 - 03122019 SPC Split...
-
Page 54: Electrically Connecting The Outdoor Unit
7. Connect the off-peak/peak rate connector to the appropriate terminals, in the case where the off-peak signal is to be used. 8. Replace the service panel passing the cables through the passage provided for this purpose in the panel. SPC Split 7740321 - v04 - 03122019... -
Page 55: Connecting The Domestic Hot Water Tank
3. Route the immersion heater power supply cable into the sheath B, then into the cable grommet on the front panel of the appliance. 7740321 - v04 - 03122019 SPC Split... - Page 56 Do not allow the sensor cable to touch the immersion heater. MW-4000159-2 Fig.58 Tightening the traction arresters 9. Secure each cable with its traction arrester device on the upper part of the appliance. MW-1001324-1 SPC Split 7740321 - v04 - 03122019...
-
Page 57: Connecting The Control Panel Display
1. Connect the control panel display. 2. Clip the display fascia onto the control panel support. MW-4000161-3 Filling the system Once the hydraulic and electrical connections have been made: 7740321 - v04 - 03122019 SPC Split... - Page 58 3. Close the hot water tap when the water runs out of it. The appliance is full. Caution Check the tightness of the pipe connections and the correct operation of the hydraulic devices by opening the drain valve on the safety unit. MW-4000162-2 SPC Split 7740321 - v04 - 03122019...
-
Page 59: Commissioning
Commissioning of the thermodynamic water heater allows the user to review the various settings and checks to be made to start up the water Hybrid Mode Opt Mode heater in complete safety. Electrical Timer / Enter Heating Clock 7740321 - v04 - 03122019 SPC Split... -
Page 60: Checklist After Commissioning
Otherwise, press the MODE key. 2. Check the time setting on the control panel. 3. Check the programming of the operating ranges. For more information, see Setting the time, page 63 Programming the operating ranges, page 63 SPC Split 7740321 - v04 - 03122019... -
Page 61: Operation
2. Deactivate the operating ranges to place the domestic hot water tank in Holiday mode. The appliance is thus protected against frost. For more information, see Programming the operating ranges, page 63 7740321 - v04 - 03122019 SPC Split... -
Page 62: Settings
Consumption Read the different consumption values mode Cooling The refrigerant can be recovered. mode 3. Confirm the selection by pressing the key. SPC Split 7740321 - v04 - 03122019... -
Page 63: Setting The Time
The setpoint value flashes. 2. Confirm by pressing the key. For more information, see List of parameters, page 62 Hybrid Mode Opt Mode 7740321 - v04 - 03122019 SPC Split... -
Page 64: Activate Forced Electrical Back-Up
Cold mode by pressing key several times. 3. Confirm cold mode by pressing the key. 4. Recover the refrigerant from the external unit in accordance with industry codes of practice. SPC Split 7740321 - v04 - 03122019... -
Page 65: Displaying The Measured Values
: high speed First error code Second error code Third error code Software version (1) Negative temperatures are displayed as follows: –10 °C is displayed as –A, –11°C is displayed as –B, etc... 7740321 - v04 - 03122019 SPC Split... -
Page 66: 10 Maintenance
3. Check the performance of the heat pump. 4. Check the temperatures. 5. If refrigeration connections have to be disconnected, the refrigerant fluid should be collected. 10.2.2 Check the hydraulic circuit 1. Check the tightness of the hydraulic connections. SPC Split 7740321 - v04 - 03122019... -
Page 67: Aeraulics
Use a new gasket ring for the inspection hatch. In hard water regions, you are recommended to ask the installer to descale the domestic hot water tank once a year in order to maintain its performance levels. 7740321 - v04 - 03122019 SPC Split... -
Page 68: Accessing The Bottom Inspection Trap
9. After reassembly, check the tightness of the lower flange. Important The screws retaining the inspection hatch must be disposed in a star configuration and tightened to 6 Nm +1/-0. Use a torque wrench. SPC Split 7740321 - v04 - 03122019... -
Page 69: Maintenance Form For The Installer
Maintenance carried out by installer no. 3: Date __________ Remarks Signature Tab.26 Maintenance carried out by installer no. 4: Date __________ Remarks Signature Tab.27 Maintenance carried out by installer no. 5: Date __________ Remarks Signature 7740321 - v04 - 03122019 SPC Split... -
Page 70: 11 Troubleshooting
Damaged sensor: replace the sensor. Communication fault: check the connection. Air suction temperature sensor Th error Damaged sensor: replace the sensor. Communication fault: check the connection. Air discharge temperature sensor Tp error Damaged sensor: replace the sensor. SPC Split 7740321 - v04 - 03122019... - Page 71 Domestic hot water tank installed in a room exposed to frost: install the domestic hot water tank in a frost- Frost protection running free room. 4-way valve blocked in cold mode: unblock or re place the 4-way valve. 7740321 - v04 - 03122019 SPC Split...
-
Page 72: Running Diagnostics On Errors On The Outdoor Unit
Degree to which the electronic pressure release Open = value displayed x 8 valve is open Setpoint temperature (Ts) Trip temperature of the electrical back-up (Td) Hysteresis (Tr) Last error code Software version End of parameters “__” SPC Split 7740321 - v04 - 03122019... -
Page 73: 12 Disposal/Recycling
If electrical appliances are discarded on a rubbish tip, hazardous substances may leak into the groundwater, enter the food chain and have harmful consequences on health and well-being. 7740321 - v04 - 03122019 SPC Split... -
Page 74: 13 Appendix
If the readout values are incorrect, check the positioning of the sensor in the sensor tube Compressor start-up Transfer of heat to the domestic hot water tank Back-up heating working Instruct the user in how the product operates SPC Split 7740321 - v04 - 03122019... -
Page 75: Maintenance Protocol
Tab.35 Product fiche for heat pump water heaters Brand name – Product name Unit SPC Split 200 SPC Split 300 Declared load profile Water heating energy efficiency class under average climate conditions Water heating energy efficiency under average climate conditions 136.00... - Page 76 13 Appendix SPC Split 7740321 - v04 - 03122019...
- Page 77 13 Appendix 7740321 - v04 - 03122019 SPC Split...
- Page 78 13 Appendix SPC Split 7740321 - v04 - 03122019...
- Page 79 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
- Page 80 36061 BASSANO DEL GRAPPA (VI) - ITALY Via Trozzetti, 20 Servizio clienti: Tel +39 0424 517800 - Fax +39 0424 38089 www.baxi.it 7740321 - v04 - 03122019 7740321-001-04...
