General
The Quartz-clock is an analogue clock with a built-in high accuracy quartz crystal as a time base. The clock can control up
to 3 slave movements connected to a special slave output. Supply voltage is 230 VAC.
If the clock has option External setting device the buttons is located outside clock cover.
Installation
1.
Connect 230V 50 Hz according to the connection diagram.
2.
Put Slide switch, on movement, in ON-position

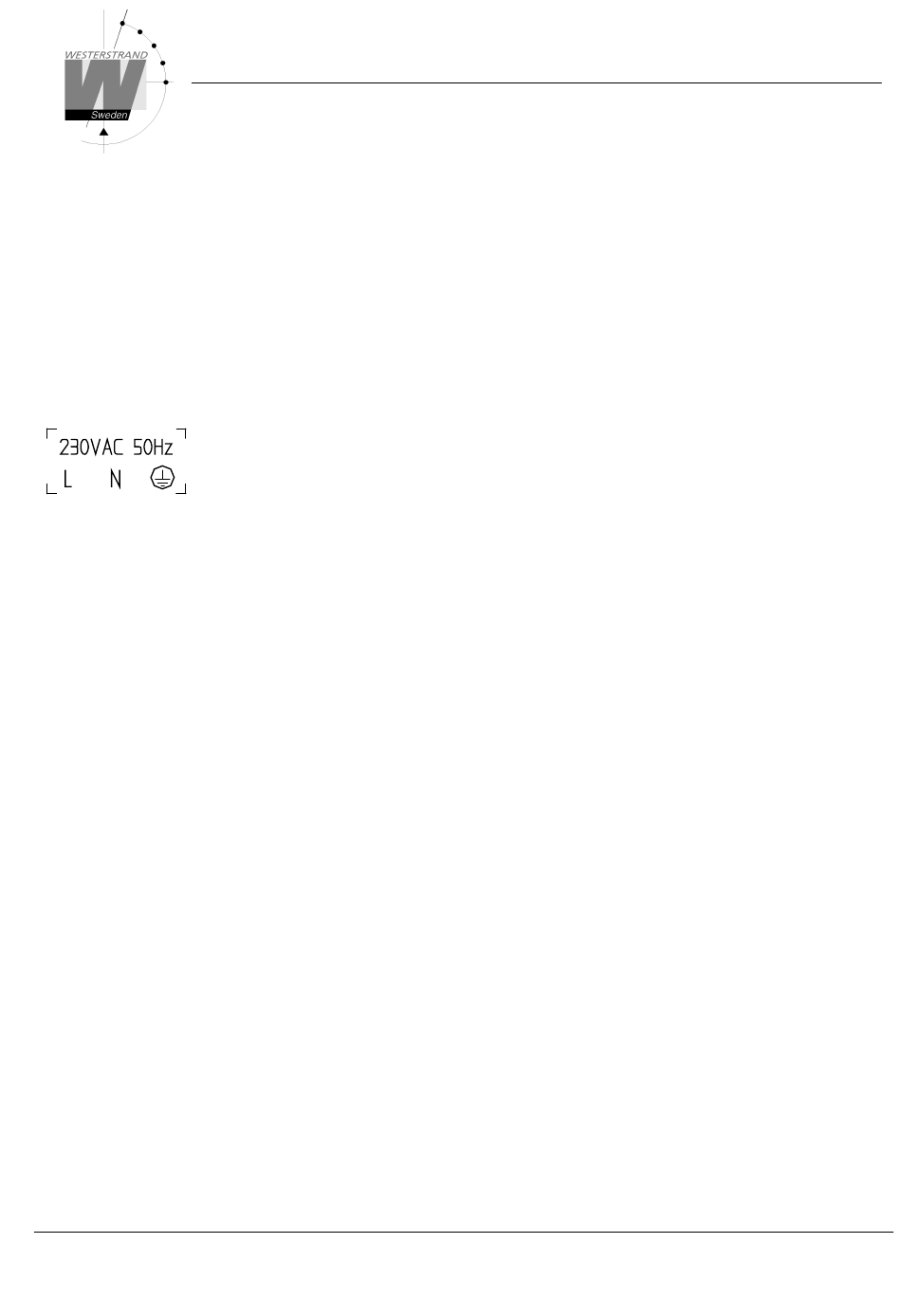

Connection diagram 230V/50Hz:
Synchronisation
Use setting buttons located on movement or if option External setting device:
1.
Press (external) START/STOP button, to stop the clock.
2.
Press (external) RAPID button, to set the hands some minutes ahead of correct time.
3.
When correct time = time of hands; Press (external) START/STOP button
During a power failure the clock is stopped.
If option, running reserve is mounted, the clock will continue to work during the power failure
Technical data
Connection cable (mains)
Connection voltage
Crystal frequency
Accuracy
Temperature range
Options
Running reserve
art. no.
External setting
device.
art. no.
WESTERSTRAND URFABRIK AB
P.O. Box 133
SE-545 23 TÖREBODA
INTELLIGENT CLOCKS
3-wire
230V 50Hz
4.194304Mhz
within 0.1 s / 24h (at 20 E C)
1s / 24h (-20 to +50 E C)
-20 E C to +50 E C
113195-00.
Lithium battery mounted inside the movement.
12 hours running reserve. Battery life approx. 10 years.
113198-00.
External buttons (IP-65) for setting clock.
Tel. +46 506 48000
Fax. +46 506 48051
.
.
Internet::
http://www.westerstrand.se
E-mail:
info@westerstrand.se
Document: 1574en02.doc
Author: TAn
Date: 03-09-16
Page: 2 of 6
