WESTERSTRAND QUARTZ CLOCK Technical Manual page 5

113101-02

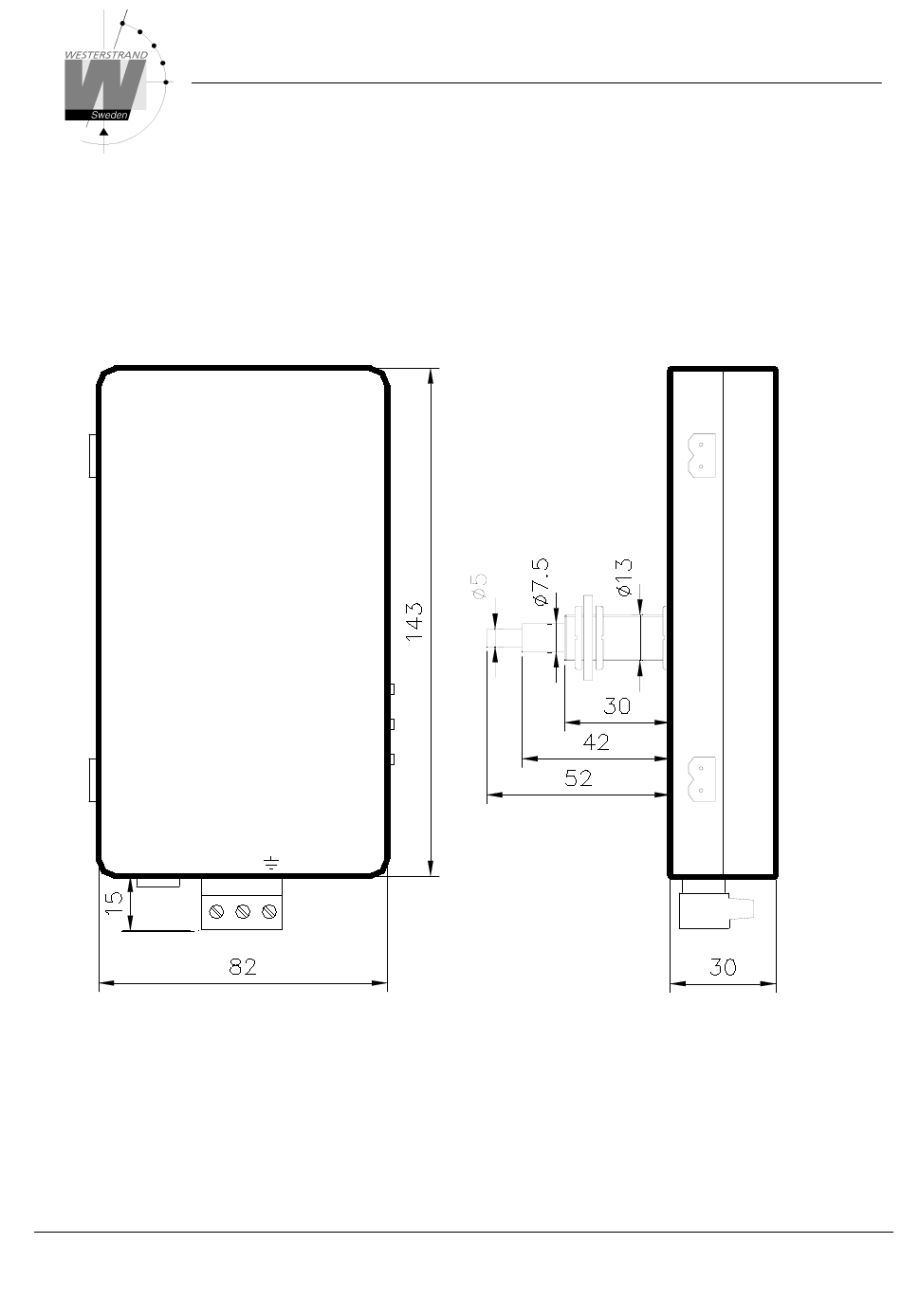

Maximum dial size 900 mm, max. minute hand 410 mm, with extended shaft for background illumination.
START/STOP
FOR EXTERNAL BUTTON
Inkopplingsritning för slavurverk
START/STOPP
FOR EXTERNAL BUTTON
RAPID
RAPID
FOR EXTERNAL BUTTON
FOR EXTERNAL BUTTON
SLAVE
OUTPUT
230 V AC
SLAVE
OUTPUT
