    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 1 of 21 Manual Analogue NTP Clock With Power-Over-Ethernet connection Contents General ................................2 LAN connection ..............................2 Functional description ............................3 Installation ................................. 3 Configuration using a WEB browser ........................4 Reset Button ..............................

  • Page 2: General

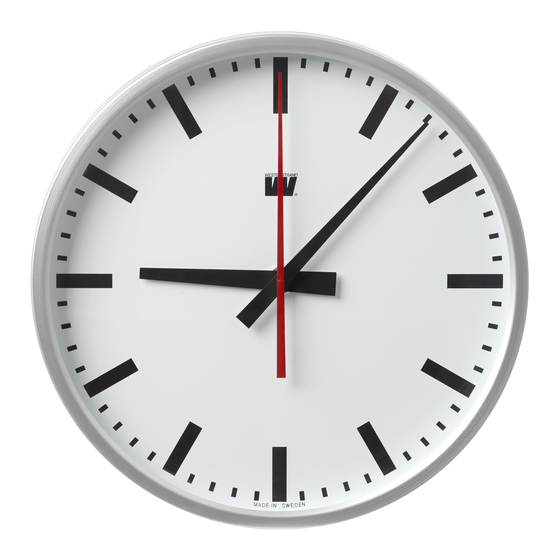

    Page: 2 of 21 General Westerstrand Analogue NTP Clock with Power over Ethernet (PoE) connection provides the possibility to create a time distribution system with high accuracy and high reliability. The NTP Clock is equipped with two motors, 3 hands analogue movement. Initial setting function and error correction is automatic.

  • Page 3: Functional Description

    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 3 of 21 Functional description After connection of the network cable, the hands are driven to 12:00. When the hands have reached this position, the motors will be stopped and the time code detector is switched on. The hands will not move until the time code has been accepted.

  • Page 4: Configuration Using A Web Browser

    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 4 of 21 Configuration using a WEB browser Login It is possible to login as administrator or guest. The administrator has the rights to read and to write/change configuration. A guest can read only.
  • Page 5 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 5 of 21 Status Name Symbolic name. The name is set in function General UTC/LT Current time Timezone Offset to UTC during normal time (=winter time). The Clocks IP address...
  • Page 6 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 6 of 21 Synchronised = The clock has been synchronised from a NTP server with name/IP ntp.se s = Stratum, time quality. A low value is better n = Number of time settings from this NTP server TO= Timeout in minutes before NTP alarm.
  • Page 7 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 7 of 21 Network Enter general network parameters. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 8 Westerstrand Ethernet products. Firmware updates are also handled by Wunser. Wunser uses UDP port 9999 when communicating with other Westerstrand products and UDP port 69 when downloading new firmware. These ports can be open, closed or prepared for encrypted communication.
  • Page 9 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 9 of 21 Use of secure communication protocol HTTPS (web-browser) if checked. SNMP This function is used to activate the SNMP, enter the address of one or more SNMP servers and to define the SNMP community.
  • Page 10 Page: 10 of 21 NTP settings General description Westerstrand NTP Clients has several features to achieve a reliable and accurate time. The configuration of the different facilities is flexible and the features can be selected or deselected depending on each customer’s individual needs.
  • Page 11 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 11 of 21 NTP settings DHCP option 042 Ask for time using the server IP addresses received from the DHCP server (DHCP option 0042). Maximum 2 NTP servers are set automatically by option 0042.
  • Page 12 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 12 of 21 NTP server Select NTP servers, e.g. 192.168.1.237 or as an URL ntp.se. Also see =DHCP above NTP mode Up to five different NTP servers can be entered. If the first one fails it will automatically go to the next one and so on.
  • Page 13 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 13 of 21 NTP advanced Advanced NTP settings Client mode FIRST. Always use the first server in the list if available. If not available take next one. This suits installations where it is more important to know exactly from where the clients get time than to have the most accurate time.
  • Page 14 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 14 of 21 Authentication If authentication is activated: Use MD5 authentication. Server ID/Key: Authentication data for the external NTP servers configured in the NTP server list. WESTERSTRAND URFABRIK AB P.O.
  • Page 15 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 15 of 21 Clock Used to configure general clock parameters. Double sided = Single sided Clock = Double sided Clock Second hand = No second hand = The clock has a second hand Reset hands This function will force the hands (pointers) to re-synchronise.
  • Page 16 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 16 of 21 General Used to configure general parameters. Name Symbolic name, max. 64 signs. This name is shown in the status menu. Password Login password. Admin = Adminstrator password. The administrator has the rights to read and to write/change configuration.
  • Page 17 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 17 of 21 Firmware Download Function to enable firmware download. See also section Firmware Download. Restart Restart the Clock. Backup/Restore Backup Save the clock configuration to a file. The clock suggests the Name field as filename (here NTP Clock.

  • Page 18: Reset Button

    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 18 of 21 Firmware Download / Wunser General The Clock has support for firmware upgrade via the network. The utility program Wunser is used for firmware upgrade. Wunser can be downloaded using the following link: http://www.westerstrand.com/archives/download.htm...
  • Page 19 Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 19 of 21 NETWORK INPUT/POE OUTPUT TO SLAVE SIDE (Double sided clock) STATUS DIODE LINK DIODE RESET BUTTON MAC-ADDRESS Terminal Description Remark Ingång för 10/100BASE-T. PoE 802.3af. Kontakt: RJ45 PoE strömförbrukning 2W max.

  • Page 20: Technical Specification

    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 20 of 21 Technical specification General Synchronisation Accuracy 0,1 sec/24 h at 22  C (stand-alone mode) Hand movement Hour hand sweeping. Minute hand stepping, 6 steps/minute. Second hand sweeping.

  • Page 21: Abbreviations

    Document: DOK11018en02 WESTERSTRAND Author: PM/CF Date: 2020-09-24 Analogue NTP Clock Page: 21 of 21 Abbreviations Daylight Savings Time Local time Network Time Protocol Time code. The time message format transmitted to the movement Coordinated Universal Time WESTERSTRAND URFABRIK AB P.O. Box 133 Tel.
