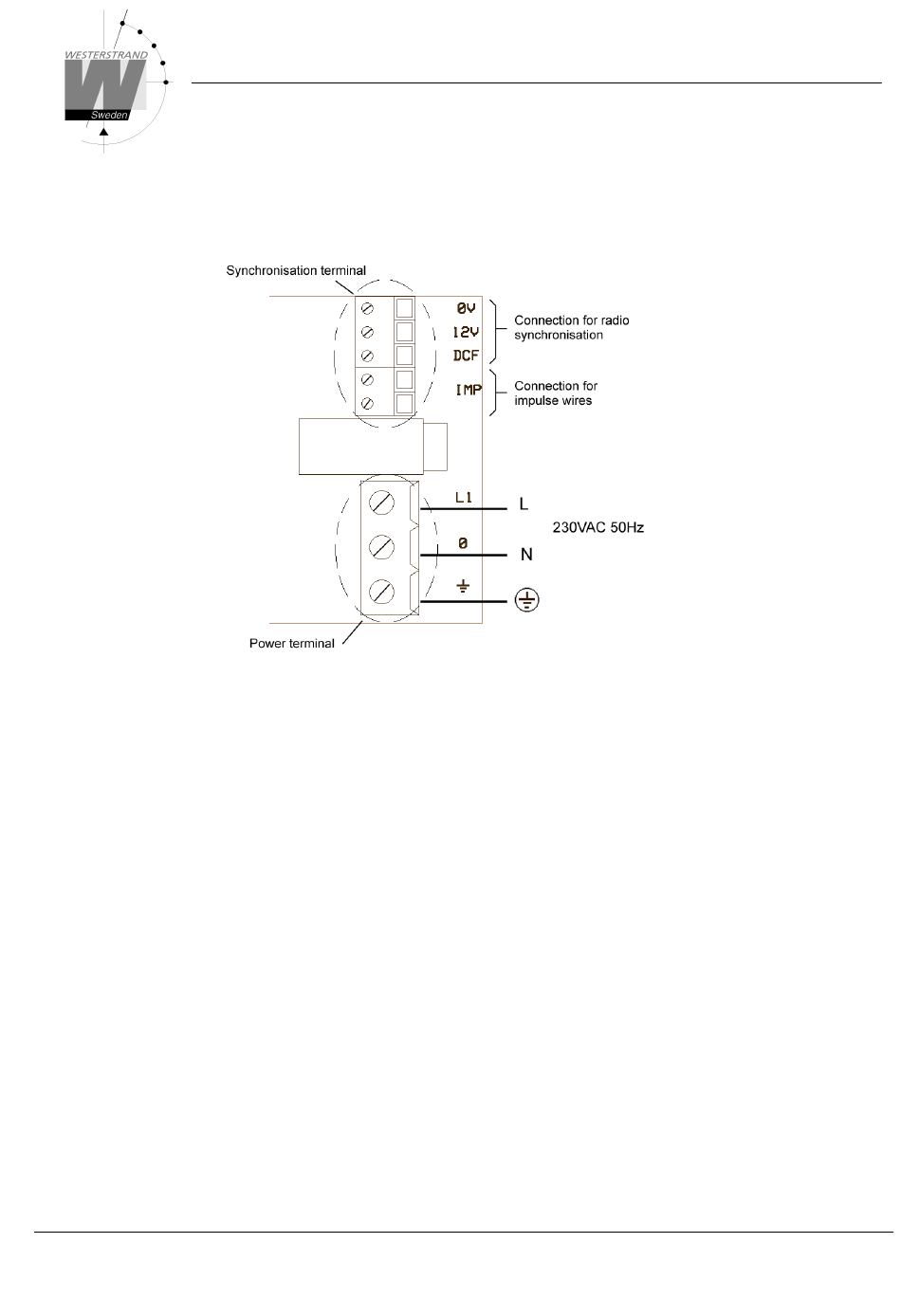

Cable connections to the power supply board are shown in the figure below.
(Note! For connections for options see separate description for the actual option.)
Mains (230V AC, 50Hz) should be connected to the Power terminal. When the clock is
permanently installed a readily accessible disconnect device shall be incorporated in the fixed
wiring. Installation fuse max10A. Power wire 1,5mm².
If the clock shall be connected to a synchronising source this shall be connected to the
Synchronisation terminal.
