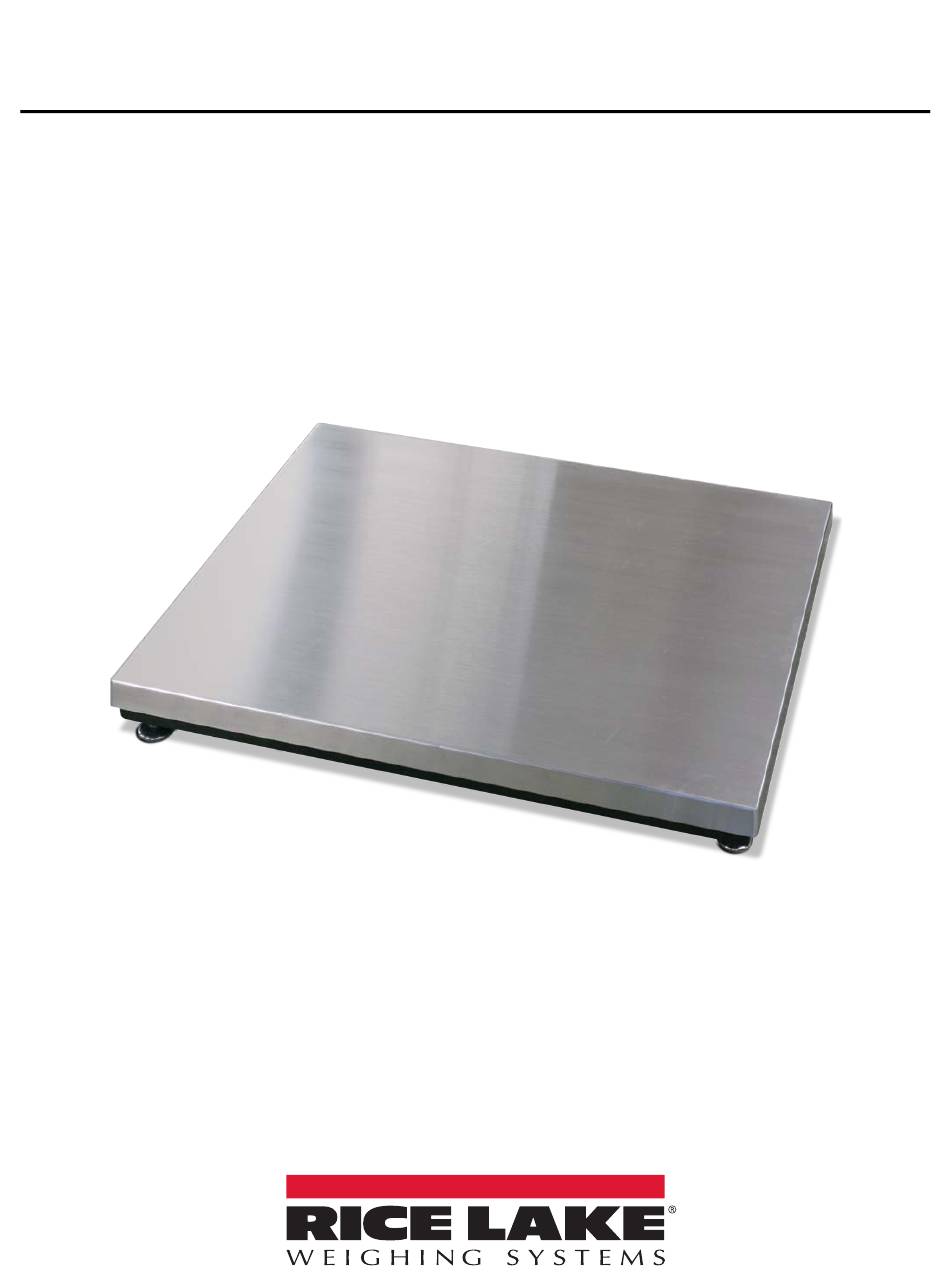

- Page 1 BenchMark ® Low-Profile Bench Scale Installation Manual October 23, 2020 PN 104742 Rev D...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
6.0 Specifications ............... . . 12 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 BenchMark LP Low-Profile Bench Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Introduction Introduction This manual is intended for use by service technicians responsible for installing and servicing the BenchMark LP Low-Profile Bench Scale. Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com Warranty information can be found on the website at www.ricelake.com/warranties... -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Installation
Unpacking Immediately after unpacking, visually inspect the BenchMark LP to ensure all components are included and undamaged. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. -
Page 8: Summing Board Security
BenchMark LP Low-Profile Bench Scale Summing Board Security After an NTEP inspector has examined the unit, a security cable will be installed on the summing board cover. These cables prevent the summing board from being tampered with by unauthorized individuals. If these cables are removed, NTEP Certification will become void. - Page 9 2. If necessary, trim corners as described in Section 3.2 on page 3. Check all strain relief for tightness. 4. Secure with nylon ties. Figure 2-4. Homerun Cable Wired to Summing Board © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 10: Calibration
When height adjustments are complete, recheck the level of the deck with a spirit level. The deck must be level within 1/4''. Corner Correction All assembled BenchMark LP scales are delivered with the summing board corner-trimmed. Corner trimming is only necessary after replacing a load cell. -
Page 11: Calibration Procedure
3. Place test weights on the platform (not exceeding the scale's full capacity). If several weights are used, they should be evenly distributed around the platform. 4. Perform a span calibration. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Maintenance
BenchMark LP Low-Profile Bench Scale Maintenance This section provides an overview of BenchMark LP Low-Profile Bench Scale maintenance information. Troubleshooting For troubleshooting details, see the following information: Problem Possible Cause Solution The system does not The power is disconnected Check and reconnect the power operate;... -
Page 13: Load Cell Replacement
Maintenance Load Cell Replacement Replacement load cells can be ordered from Rice Lake Weighing Systems, please refer to the part numbers in Table 4-2 on page 10. See Table 1-1 on page 1 for torque settings. 1. Remove defective load cells. -
Page 14: Wiring To Summing Board
BenchMark LP Low-Profile Bench Scale Replacement Load Cells Load Mount Load Cell Capacity of Scale Part No. Part No. 100 lbs 96823 100272 250 lbs 96824 104645 500 lbs 96825 100273 1000 lbs 96826 100274 Table 4-2. Replacement Load Cells... -
Page 15: Limited Warranty
Limited Warranty Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. -
Page 16: Specifications
BenchMark LP Low-Profile Bench Scale Specifications Load Cell Certifications and Approvals IP65 aluminum NTEP CoC 08-017 Rated Output Accuracy Class III; 5000 d 1.0 mV/V ± 10% (Except 1000 lb capacity models) End Load Capacity Measurement Canada 60% of full scale capacity... - Page 18 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
