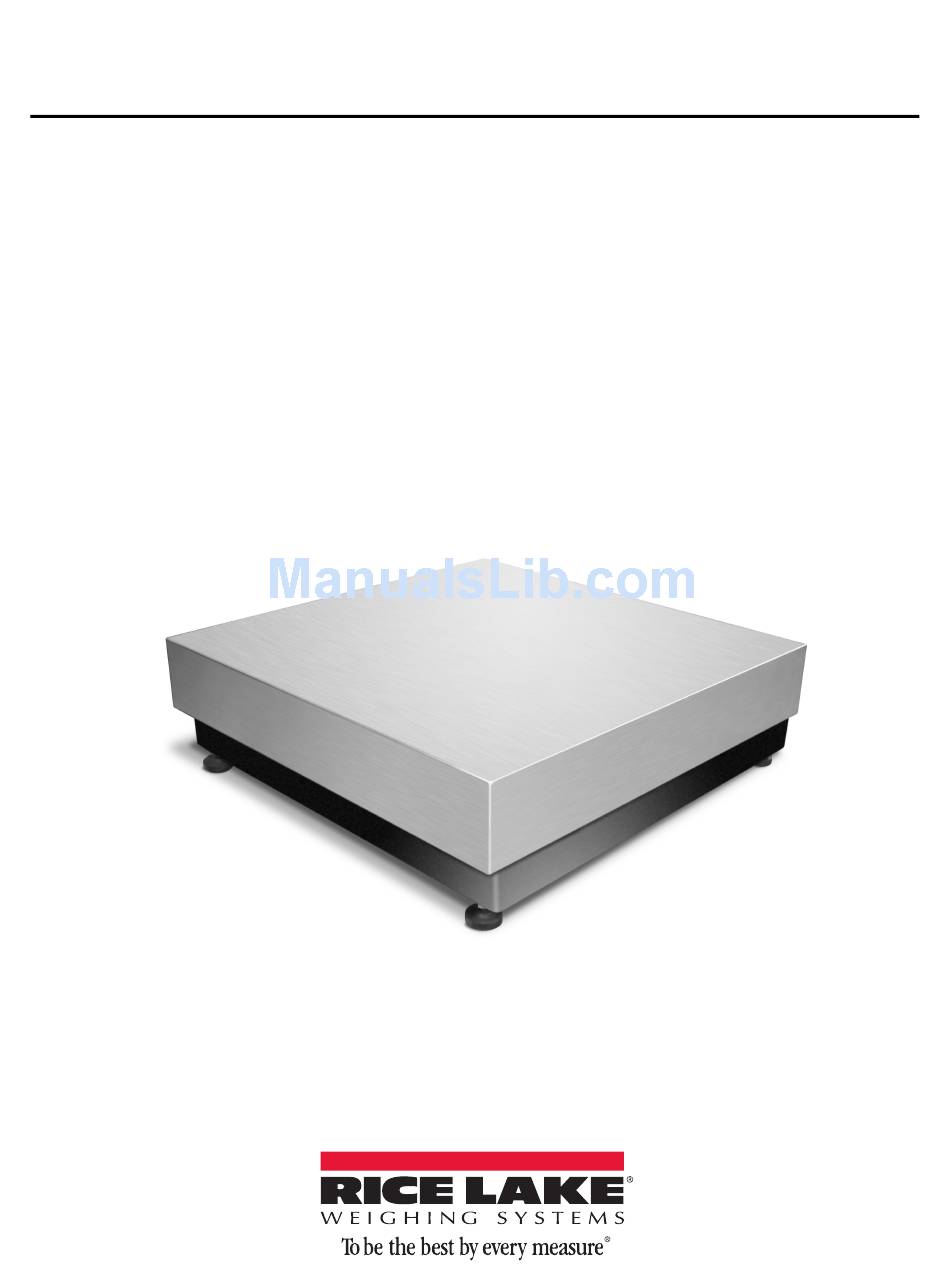

- Page 1 Benchmark HD Series ® Heavy Duty Bench Scale Installation Manual 93631...
- Page 2 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 11/2014 PN XXXXXX...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Benchmark HD Series...
-
Page 5: Introduction
Introduction This manual provides reference information to install and wire the Benchmark HD series single-point benchtop scale which is shown in Figure 1-1. Figure 1-1. Benchmark HD Series Bench Scale This NTEP-approved bench scale is available in a 30" x 30" and 36" x 36" platform with capacities from 250 to 500 lbs. -
Page 6: Benchmark Hd Specifications
Dimensions/Capacities Size Capacity Height 30" x 30"/762 mm x 762 mm 250 lb/125 kg 8.75"/222.25 mm 500 b/250 kg 36" x 36"/914.4 mm x 914.4 mm 250 lb/125 kg 500 lb/250 kg Table 1-1. Benchmark HD Specifications Benchmark HD Series... -
Page 7: Installation
Installation The following sections explain the installation procedure for the Benchmark HD. Unpacking the Benchmark Immediately after unpacking, visually inspect the Benchmark HD to ensure that the unit is undamaged. The shipping carton should contain the bench scale and this manual. If the scale was damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. -
Page 8: Grounding The Scale Base
AC ground circuit using at least #12 wire. All Benchmark series scales have either a grounding screw or a hole for such a grounding screw located on the bottom of the lower frame for this purpose. Benchmark HD Series... -
Page 9: Calibration
Calibration It is recommended that the scale be “exercised” by loading it to near capacity two or three times before calibration to be certain that everything is seated. To calibrate the Benchmark HD scale place test weights on the scale platform equal to 70 - 100% of the scale’s capacity. -
Page 10: Troubleshooting
Zero the indicator correctly Scale deck cover is binding Obtain adequate clearance Overload stops set too high Reset overload stops correctly Indicator not calibrated for scale Calibrate Faulty load cell Test and replace if necessary Table 4-1. Troubleshooting Guide Benchmark HD Series... -
Page 11: Replacement Parts
Replacement Parts Load Cell Replacement Use the following steps to replace load cells. Figure 5-1. 30'' x 30'' or 36'' by 36'' Load Cell Mount 1. Unplug AC power from the indicator and disconnect the load cell cable from the indicator. 2. -
Page 12: Replacement Parts
Replacement Parts Figure 5-2. Benchmark HD Assembly Drawing Breakout Benchmark HD Series... - Page 13 The following replacement parts are available for the Benchmark HD Series scale, PN’s 93414, 93415, 93416, and 93417. Item # Description RLWS Part Number Qty. Top cover 93775 - 30" x 30" 93768 - 36" x 36" 2 & 16...
-
Page 14: Benchmark Series Limited Warranty
Benchmark Series Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 16 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 11/19/2014 PN 93631...
