D
1
The serial number for the cover is located here.
For future reference, write it here:
___________________________________.
3
End Plug Seal
NOTE: The trigger latch is included on the driver side rail only.
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021
OWNER'S MANUAL
Damaged or missing parts?
Parts will be shipped to you factory direct. Do not return kit to place of purchase.
To view install video visit truxedo.com/lopro
A

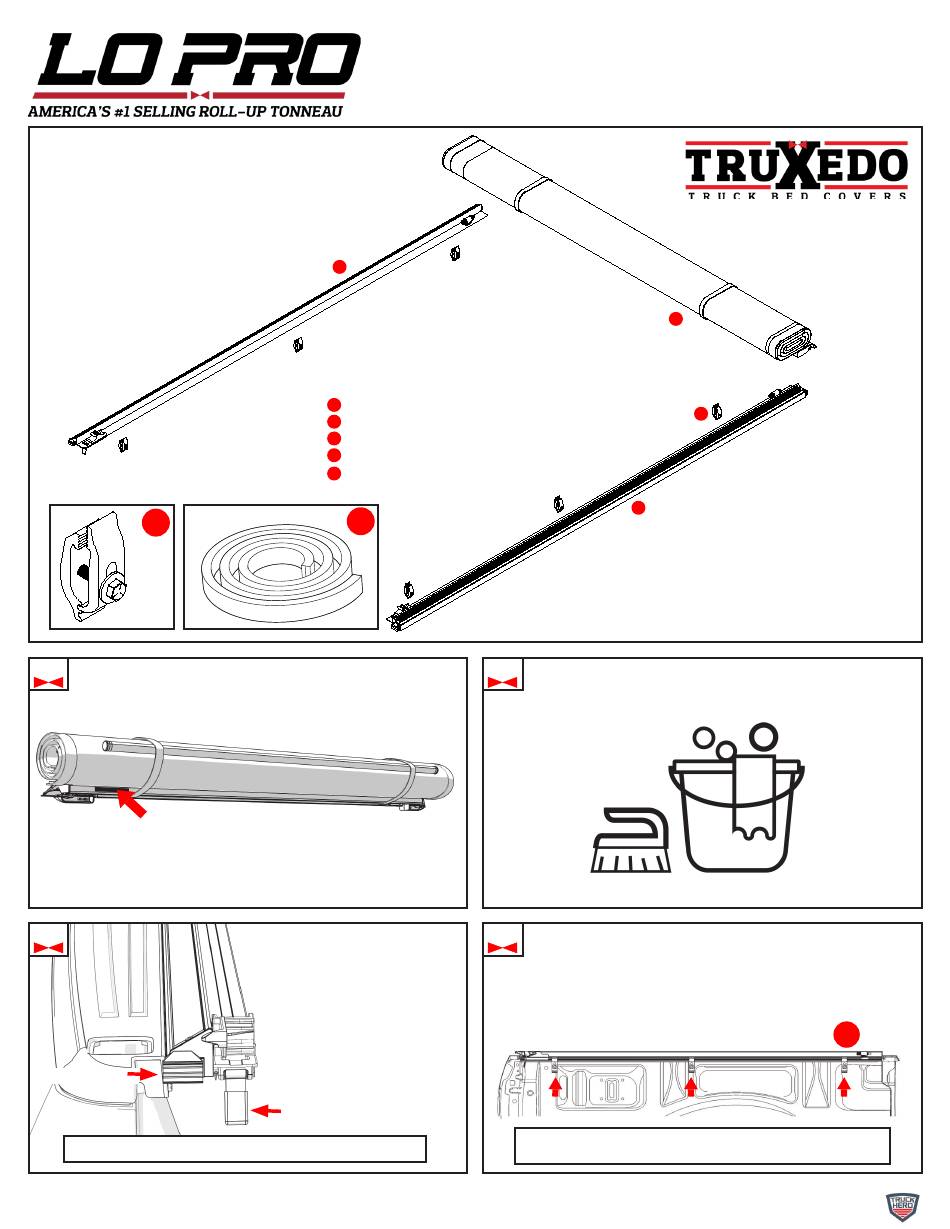

PARTS INCLUDED
IN YOUR KIT:
Driver side rail
A
Passenger side rail
B
Cover assembly
C
6x clamps
D
Bulkhead seal (on select make/models)
E
E
Position the driver side
rail (A) against the truck
bed rail. With the tailgate
closed, slide the rail back
until the rear seal is
slightly compressed
against the tailgate.
Adjust the rail vertically
so that the seal is flush
with the truck bed caps.
Trigger Latch
Call 877-878-9336 Mon - Fri 8 a.m. - 5 p.m. CT
B
2
It is important that all areas where the bed cover mounts are
clean and free of debris prior to installing.
4
Attach clamps (D) starting in the middle. Evenly space 3
clamps along the driver side rail (A), leaving approximately
8" on each end. Finger tighten to make sure the teeth of the clamp
engage with the grooves of the side rail. Then tighten all clamps
with a 1/2" socket or wrench. Repeat steps 4 & 5 on the passenger
side rail (B).
NOTE: The use of spring clamps to hold the side rail in place can
assist during the installation process.
C
D
TOOLS REQUIRED:
•
Flat head screwdriver
•
1/2" wrench or socket
TOOLS RECOMMENDED:
•
Spring clamps
•
Scissors/utility knife
D
Part# 1118085 Rev. C 03.10.2021
Advertisement
Table of Contents
Related Manuals for TruXedo Lo Pro
Summary of Contents for TruXedo Lo Pro
- Page 1 NOTE: The use of spring clamps to hold the side rail in place can NOTE: The trigger latch is included on the driver side rail only. assist during the installation process. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118085 Rev. C 03.10.2021...
- Page 2 To connect the cover assembly (C) to the side rails (A & B), slide the right and left header guides into the locked position. A clicking sound will indicate a secure attachment. RIGHT HEADER GUIDE LEFT HEADER GUIDE TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118085 Rev. C 03.10.2021...
-
Page 3: Removing The Cover
Retainer Tab Header Guide Push Up To Release Slide Header Guide To Slide Header Guide To Disengage. Disengage. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118085 Rev. C 03.10.2021... -
Page 4: Warranty Conditions
All materials must be accompanied by an RMA (Return Material Authorization) number requested by and autho- rized in advance of returning the materials. TruXedo shall not be liable or responsible to supply or pay labor to replace any part found defec- tive, nor shall it be liable for any damages of any kind or nature to person, product, or property. -
Page 5: Safety Instructions
Covers that are used frequently or are subject to vibrations and impacts from rough roadways may require adjustment. • WHY IS THERE A HOLE PUNCHED AT THE REAR OF THE PASSENGER SIDE RAIL OF THE TRUXEDO LO PRO, DEUCE AND PRO X15 BUT NO LATCH? All side rails are punched identically to keep them uniform, to ensure manufacturing efficiency and to reduce tooling costs. - Page 6 20 1705392 Aluminum Clamp Assy 30 ___*___ Black Rear Header * Please specify length or make and model of vehicle. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021 Part# 1118085 Rev. C 03.10.2021...
