NOTE: It is important that all areas where the bed
cover mounts are clean and free of debris prior to
installing.
PARTS INCLUDED
IN YOUR KIT:
A
Cover assembly
B
Driver side rail
C
Passenger side rail
D
6x clamps
E
Bulkhead seal
(on select make/models)
D
E
1
The serial number for the cover is located here.
For future reference, write it here:
____________________________________.
3
Align drivers side rail (B) so foam is compressed equally on both sides. Compress foam spacer approximately 50%.
TAILGATE
3/8" Approx.
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022

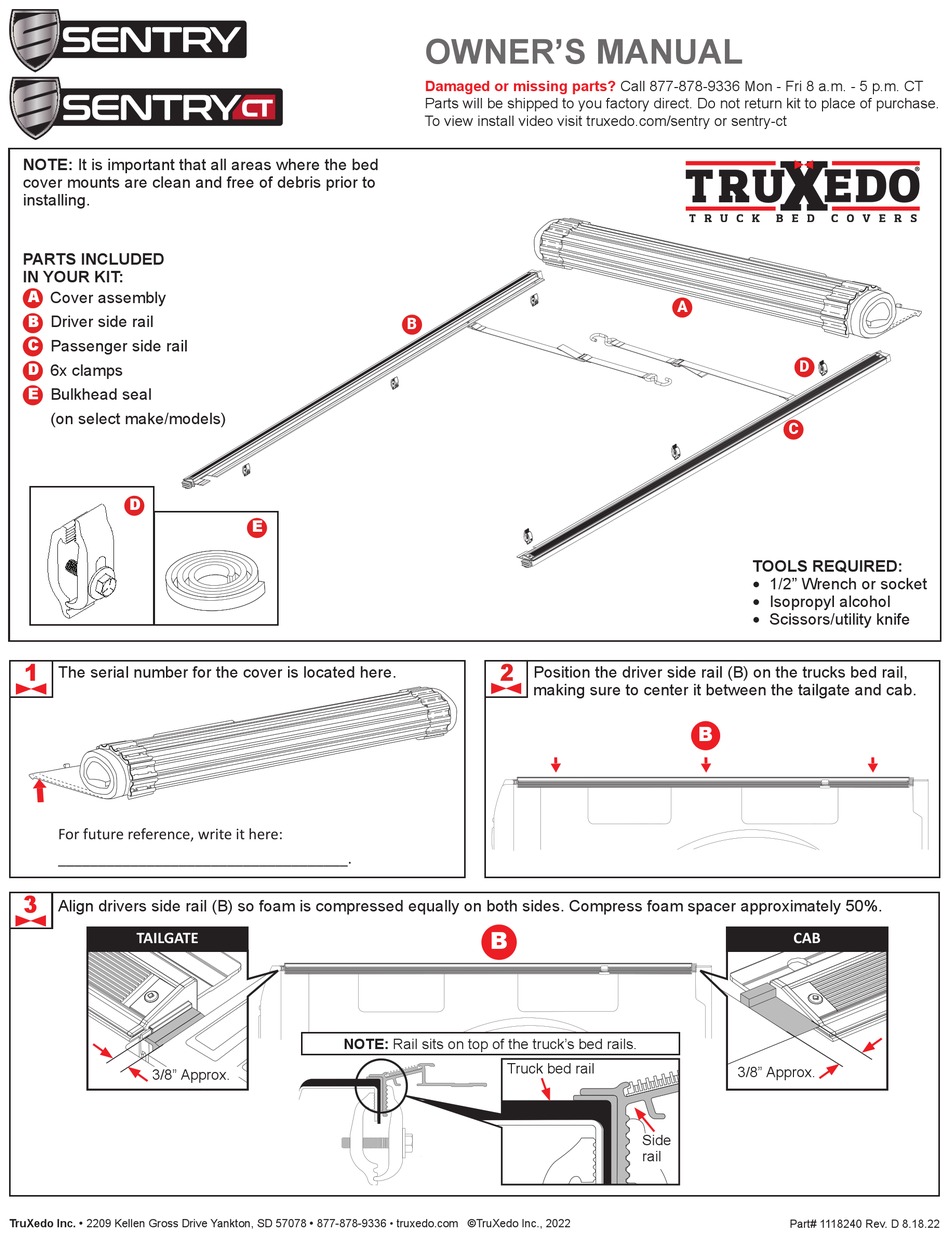

OWNER'S MANUAL
Damaged or missing parts?
Parts will be shipped to you factory direct. Do not return kit to place of purchase.
To view install video visit truxedo.com/sentry or sentry-ct
B
E
NOTE: Rail sits on top of the truck's bed rails.
Call 877-878-9336 Mon - Fri 8 a.m. - 5 p.m. CT
2
Position the driver side rail (B) on the trucks bed rail,
making sure to center it between the tailgate and cab.
B
Truck bed rail
Side
rail
A
D
C
TOOLS REQUIRED:
1/2" Wrench or socket
l
Isopropyl alcohol
l
Scissors/utility knife
l
B
CAB
3/8" Approx.
Part# 1118240 Rev. D 8.18.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentry and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TruXedo Sentry

  • Page 1 NOTE: Rail sits on top of the truck’s bed rails. Truck bed rail 3/8” Approx. 3/8” Approx. Side rail TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 2 NOTE: The rail may need to be forced upward slightly to allow the screw head to drop in the slot. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 3 NOTE: Make sure cover is securely latched on both sides before operating vehicle. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 4: Opening The Cover

    TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 5: Limited Warranty

    Warranty registration must be on file and/or proof of original purchase (detailed and dated receipt) required for warranty to be effective. Register online at https://truxedo.com/warranty REGISTER YOUR WARRANTY ONLINE TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 6: Safety Instructions

    Covers that are used frequently or are subject to vibrations and impacts from rough roadways may require adjustment. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...
  • Page 7 21 1118225 Cable Cover 3.75” 11 ___*___ Hook and Loop Fasteners * Please specify length or make and model of vehicle. TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022 Part# 1118240 Rev. D 8.18.22...

This manual is also suitable for:
