TruXedo TonneauTraX Owner's Manual

TruXedo TonneauTraX Owner's Manual

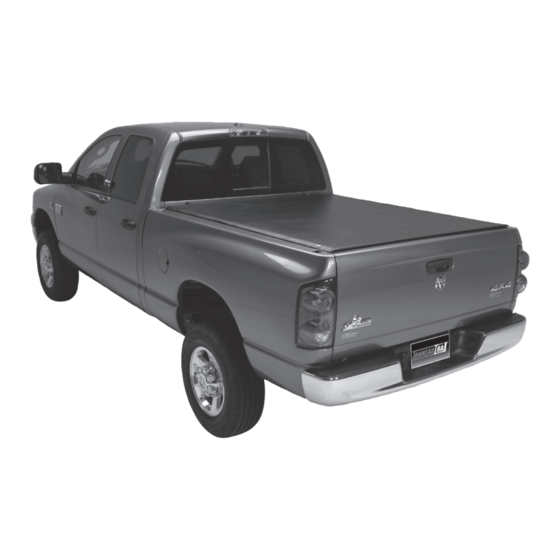

Premium soft roll-up cargo rail tonneau cover combination

Advertisement

Quick Links

Direct all warranty claims to truxeDo at 1-877-878-9336
Name:_______________________________________
Address:_____________________________________
City:____________________State:_____Zip:________
Phone Number:________________________________
Email Address:________________________________
Date Purchased: ___________ Price Paid: _________
Dealer Name:_________________________________
Pickup Make: _________________________________
Model: ________________________ Year: ________
Product Purchased:
□ Original TruXedo
□ TruXedo Lo Pro QT
□ TruXedoPlus
□ TruXport
□ TruXedo Deuce
□ TonneauTraX

Advertisement

loading
Need help?

Need help?

Do you have a question about the TonneauTraX and is the answer not in the manual?

Questions and answers

Summary of Contents for TruXedo TonneauTraX

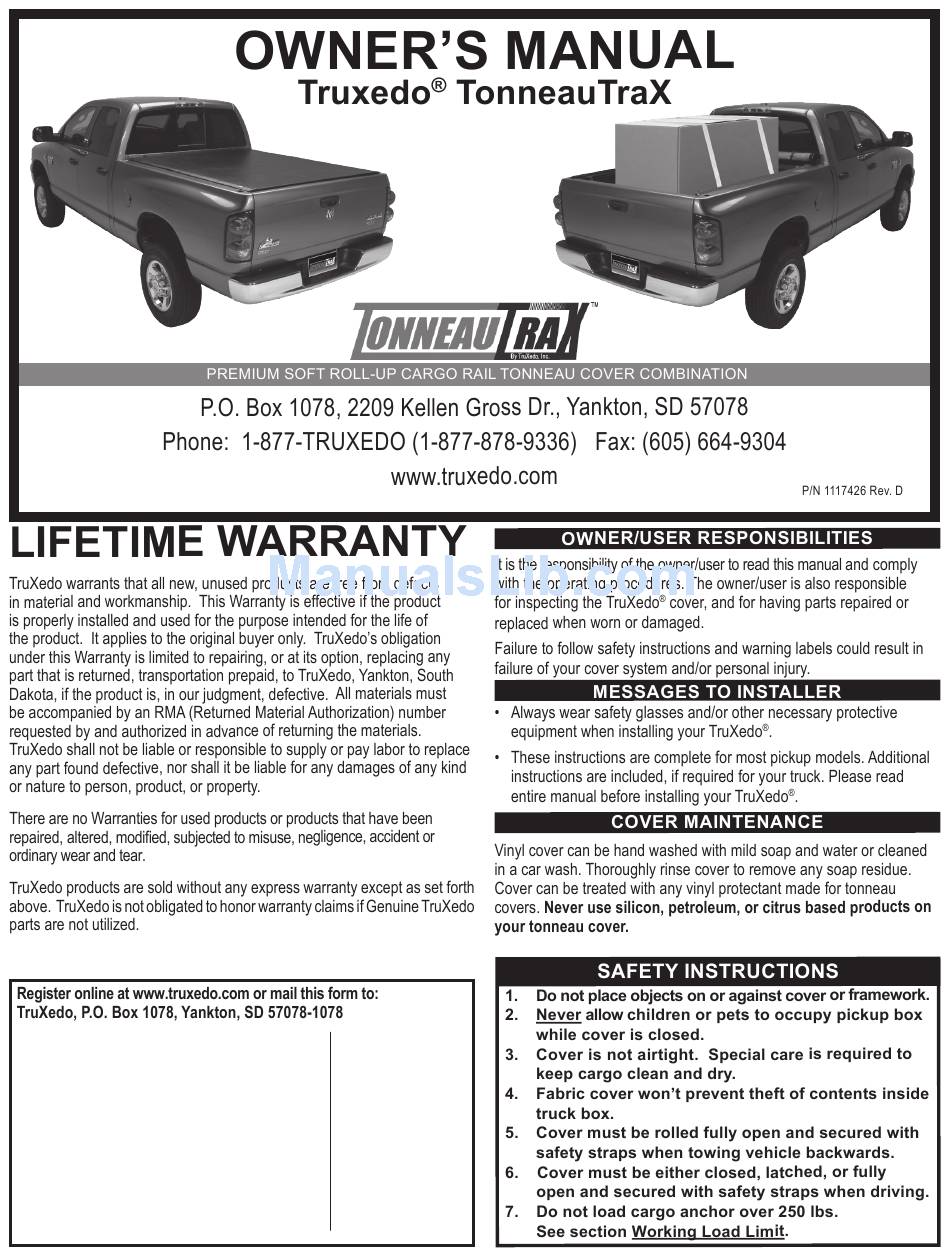

  • Page 1 Direct all warranty claims to truxeDo at 1-877-878-9336 Name:_______________________________________ Product Purchased: □ Original TruXedo Address:_____________________________________ □ TruXedo Lo Pro QT City:____________________State:_____Zip:________ □ TruXedoPlus Phone Number:________________________________ □ TruXport Email Address:________________________________ □ TruXedo Deuce Date Purchased: ___________ Price Paid: _________ □ TonneauTraX...
